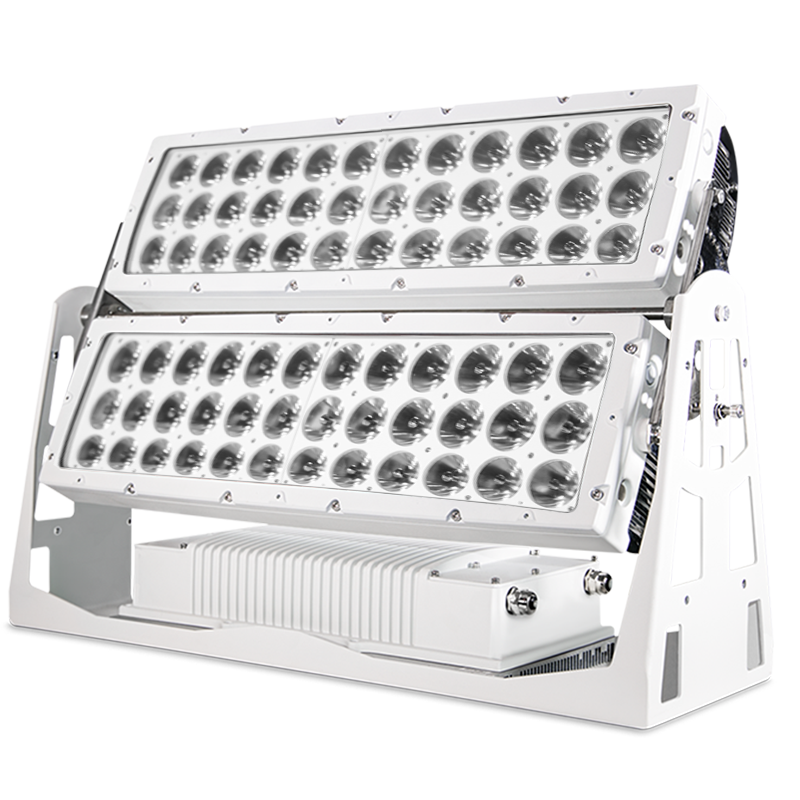

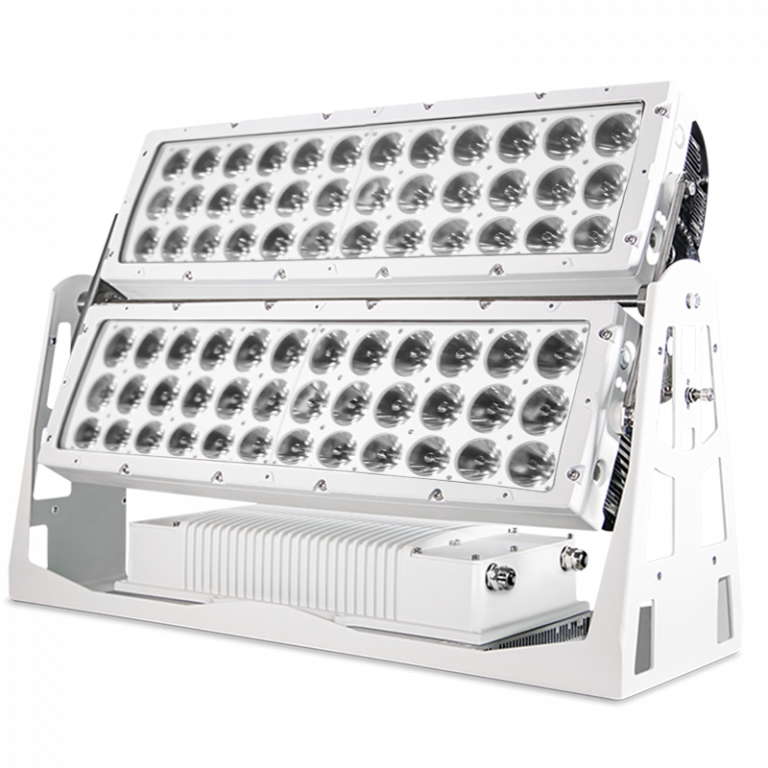

TITAN 272–AC - Multi-chip RGBA LED City Wash

Product Description

TITAN 272-AC is a 72 x15 watts Amber Cool White LED city wash. It has high light efficiency, high illumination, high performance, and stability, it is realizable to achieve the perfect color interpretation and ultra-long light casting distance. Optional wireless DMX512 control, it provides diverse lighting solutions for a variety of large outdoor lighting projects, an ideal lighting fixture for towers, bridges, large venues, integrated commercial building, and other large occasions.

SOURCE

• Light source: 72×15 watts Amber Cool White
• LED life expectancy: 50,000 Hrs
• Peak Intensity: 2051280 cd (4°)

OPTICAL SYSTEM

• Optics: 4°, 10° , 20°
• Light output: 21,000 Lux @2m @ 4°

CONTROL & PROGRAMMING

• Control Protocols: DMX
• DMX control channels: 0-100% dimming
• Controllable sections: 2
• Color Mixing: Amber Cool White

ELECTRICAL

• Input Voltage: AC 100-240V, 50/60Hz
• Max Power: 1200 W
• Power Factor: > 0.9

CONNECTIONS

• Power connection: 3m cable (Input only)
• Data connection: 3m cable (input output)

PHYSICAL

• Dimensions: 881 x 252 x 569 mm
• Net Weight: 46 kg
• Color: Off White (Gray, Black Optional)
• Housing: Die-cast aluminum
• Security: Anti-thunder shock protection design
• IP Rating: 66
• Operation temperature: – 40°C~45°C (operating) /- 40°C~45°C (startup)
