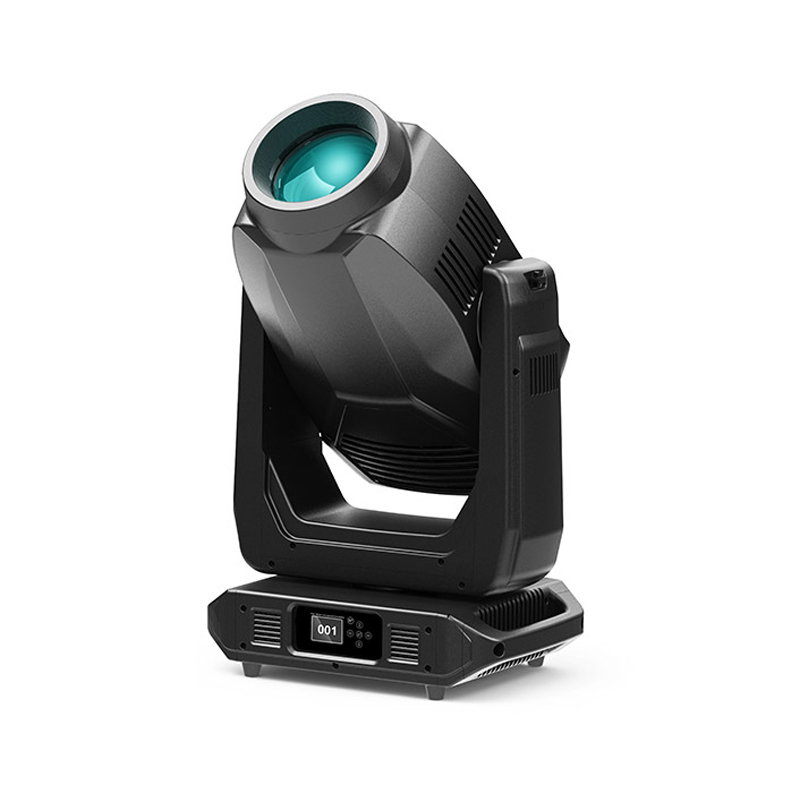

VLZ PROFILE - High Output White LED Profile

Brand: Vari-Lite

The Vari-Lite VLZ PROFILE is a dedicated profile luminaire utilizing the latest high output white LED sources to produce a staggering 24,000 lumens projected from a 140mm front lens.  The enhanced fan control system allows users to choose one of four fan levels to match the output they require for a show remotely from a console. The familiar CMY-CTO color system creates stunning, seamless mixed colors. The dual fixed color wheel with linear control gives access to Vari-Lite colors and split color combinations. Color shake and color wheel spin control have also been added to the mix.



Brand:

Product Description

The Vari-Lite VLZ PROFILE is a dedicated profile luminaire utilizing the latest high output white LED sources to produce a staggering 24,000 lumens projected from a 140mm front lens. The enhanced fan control system allows users to choose one of four fan levels to match the output they require for a show remotely from a console. The familiar CMY-CTO color system creates stunning, seamless mixed colors. The dual fixed color wheel with linear control gives access to Vari-Lite colors and split color combinations. Color shake and color wheel spin control have also been added to the mix.

FEATURES

  • 24,000 lumen output.
  • High quality image projection via 140mm (5.5in) front lens.
  • 16-bit dimmer control with 4 selectable curves.
  • Full color mixing and color effects CYM + CTO 1 color wheel, 6 fixed    colors, shake and wheel spin functions.
  • Texture effects animation wheel with continuous indexable / rotation.
  • Multiple fan level controls:
  •     Standard
  •     Studio
  •     Studio 2
  •     Whisper
  • Wide zoom range 8-50° zoom.
  • Camera friendly – separate frequency and gamma control of LED array.
  • Beam edge softening – 3-way frost control.
  • Beam shaping control, iris and framing shutter system 4 blade with    independent control and frame rotation ±50° either side of center.
  • Projection and mid-air effects:

    – Gobo wheel 1: 7 interchangeable fully rotating and indexing gobos

    – Gobo wheel 2: 7 interchangeable fixed gobos.

  • Multi beam effects 3 facet prism.

Download

Data Sheet
