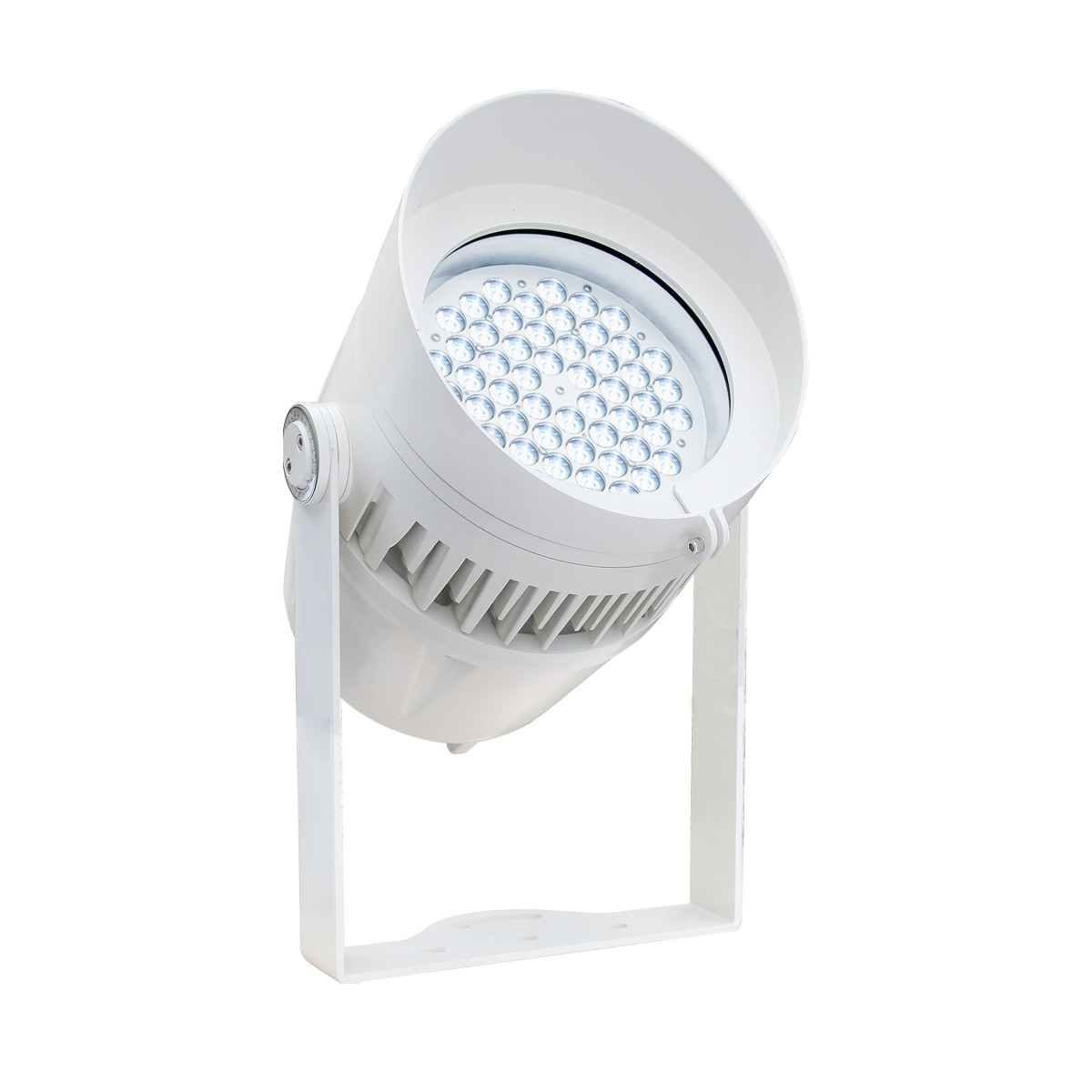

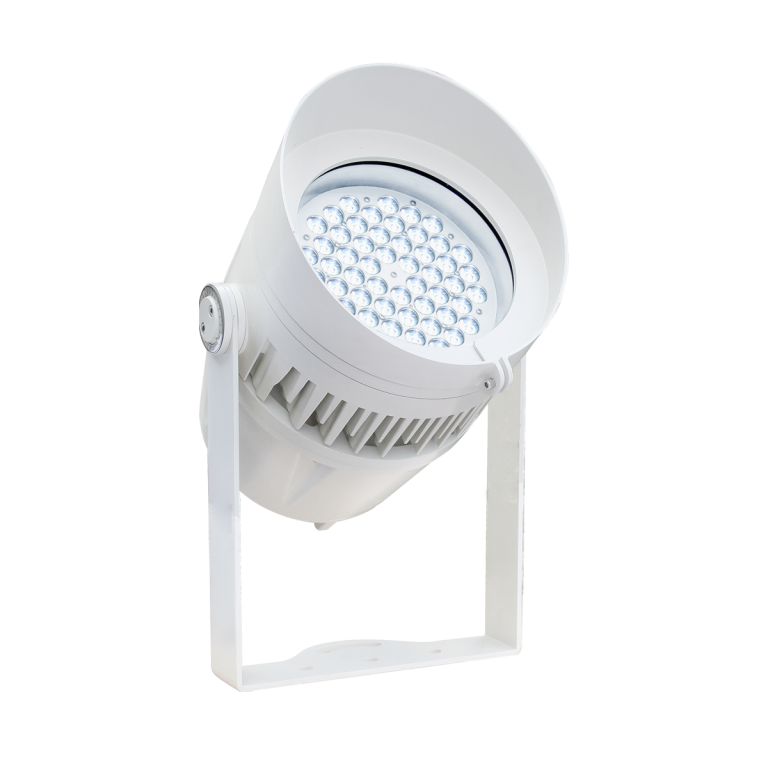

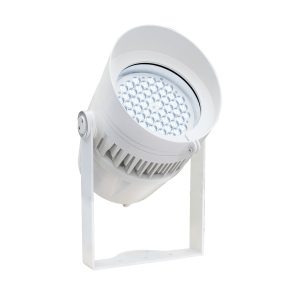

WHOPPER 254-AC

WHOPPER 254-AC is a 54×3 watts Amber Cool White high power LED Exterior wash. It has an attractive and durable die-casting aluminum housing, built-in power supply and driver, and an independent heat dissipation system. It is equipped with adjustable glare shield, able to create an unparalleled lighting effect for the monuments, buildings, bridges and other architectural projects.

SKU: Whopper254AC Categories: , , Brand: Series:

Product Description

WHOPPER 254-AC is a 54×3 watts Amber Cool White high power LED Exterior wash. It has an attractive and durable die-casting aluminum housing, built-in power supply and driver, and an independent heat dissipation system. It is equipped with adjustable glare shield, able to create an unparalleled lighting effect for the monuments, buildings, bridges and other architectural projects.

SOURCE

  • Light source: 54 x 3 watts Amber Cool White
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 58000cd (25°)

OPTICAL SYSTEM

  • Optics: 25° (5°, 12°, 45°)
  • Light output: 14,500 Lux  @2m @ 25°

CONTROL & PROGRAMMING

  • Control Protocols: DMX
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: Amber Cool White

 ELECTRICAL

  • Input Voltage: AC 100-240V, 50/60Hz
  • Max Power: 170 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable (input only)
  • Data connection: 3m cable (input output)

PHYSICAL

  • Dimensions: 354x283x450mm
  • Net Weight 11 kg
  • Color: Black / Off White
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)

Download

Data Sheet
