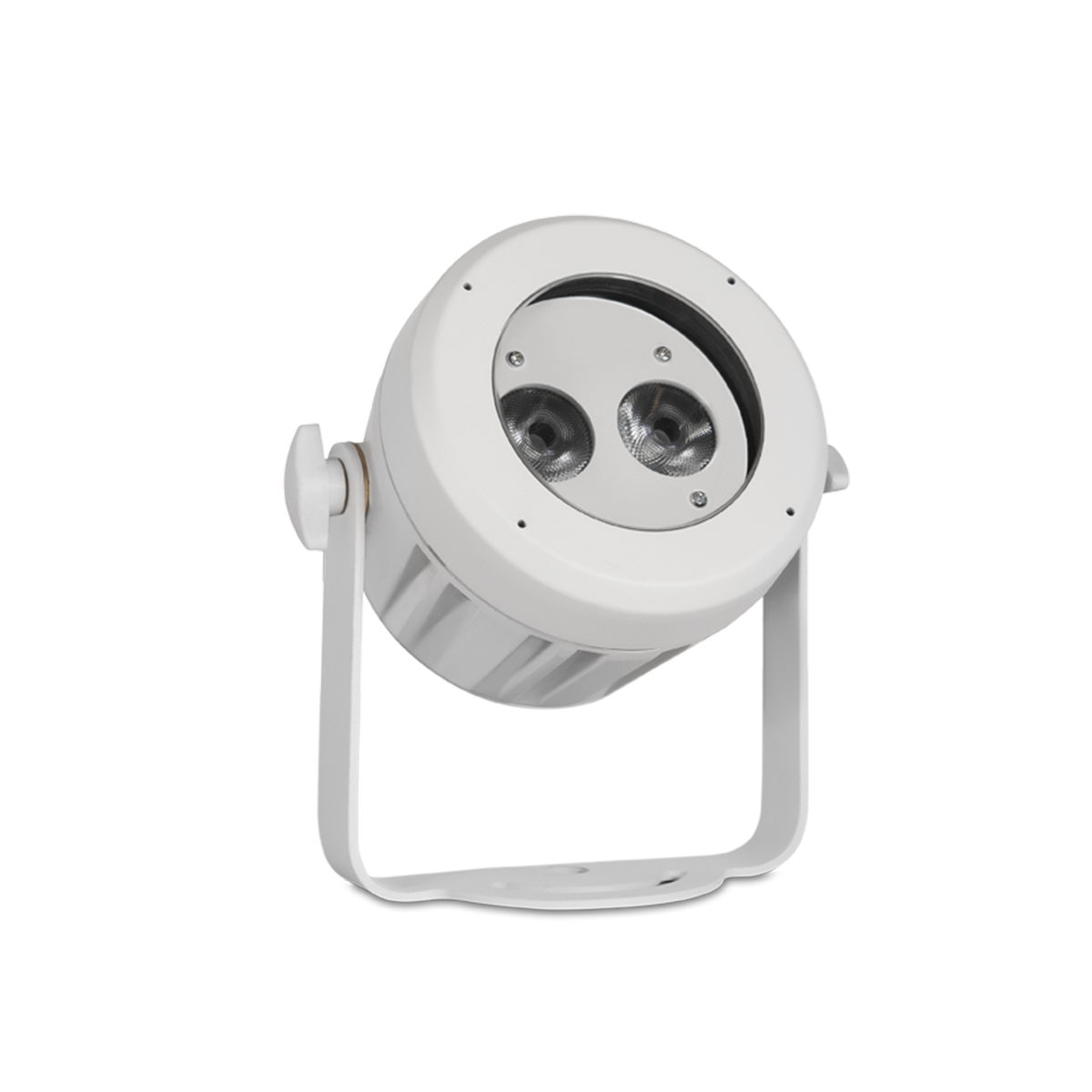

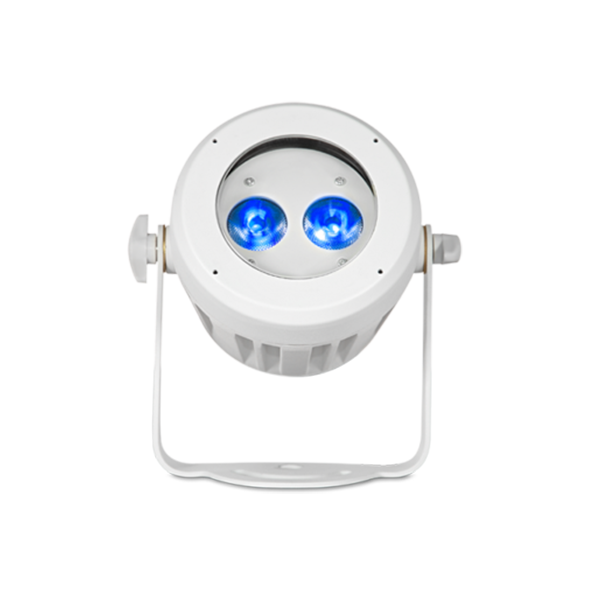

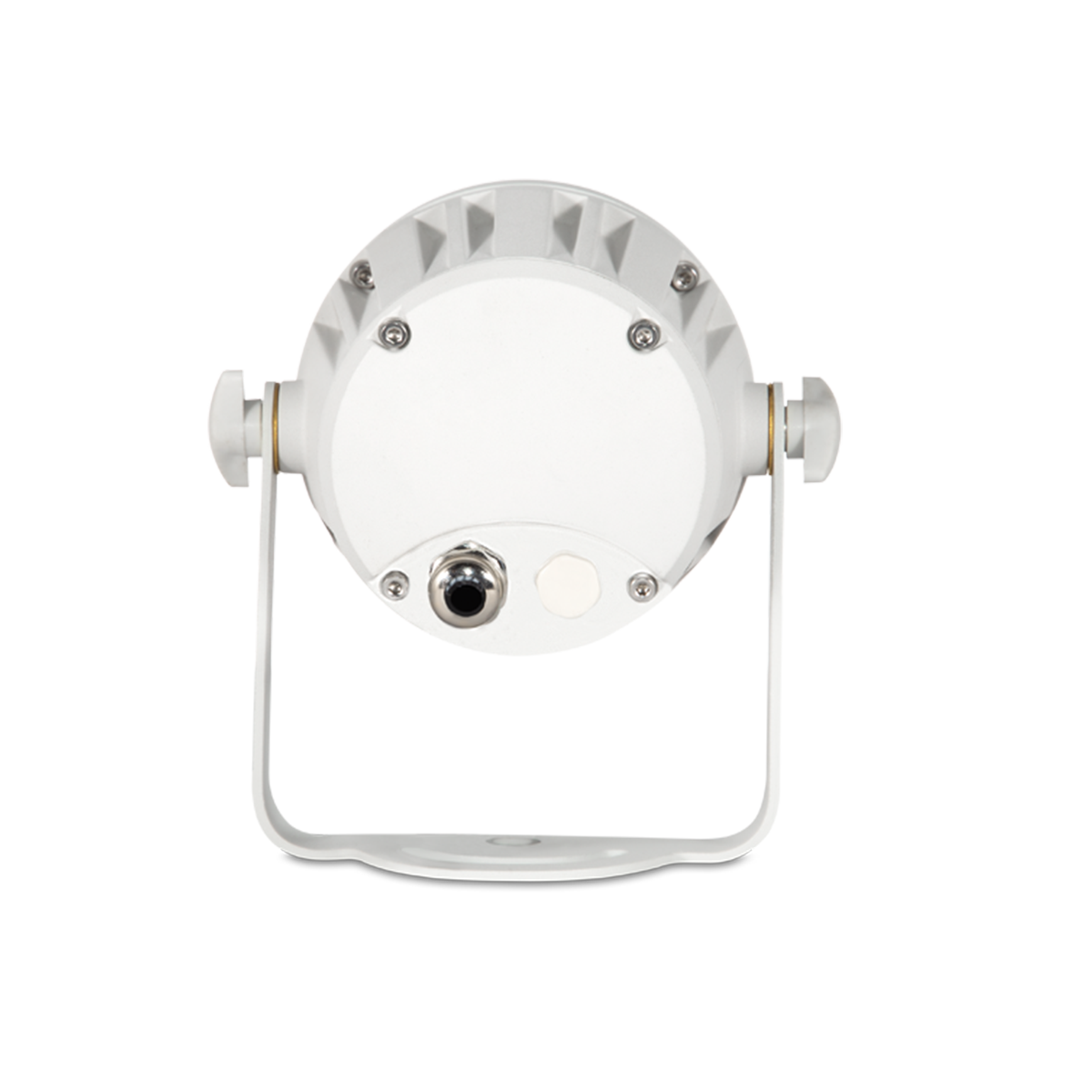

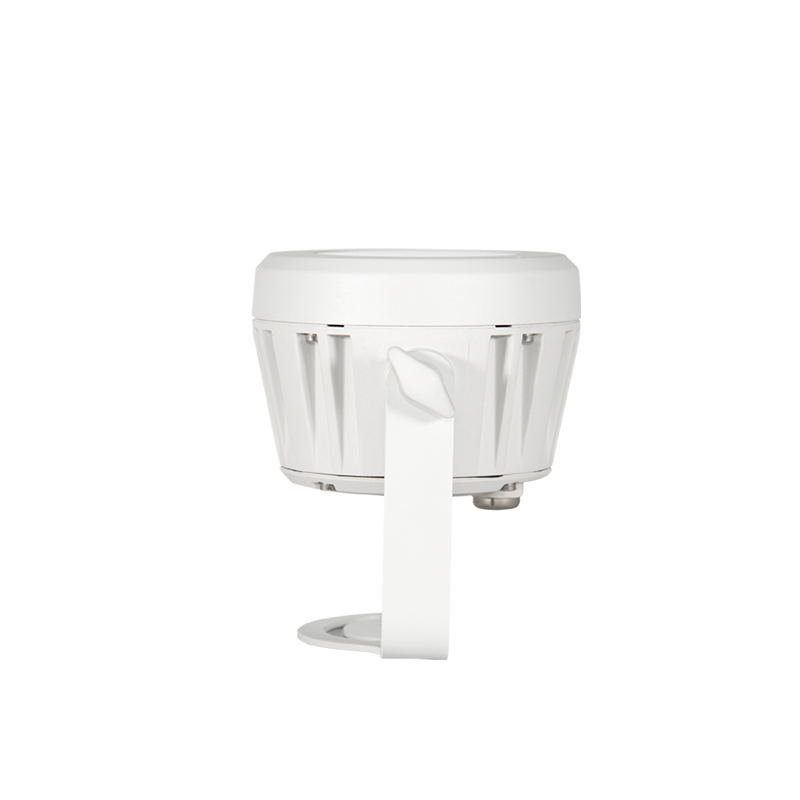

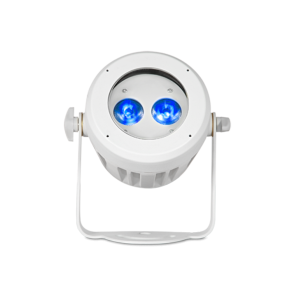

WHOPPER 402-RGBW

Product Description

WHOPPER 402-RGBW is 2×15 watts multi-chip RGBW LED compact design Exterior wash with intelligent DMX dimming technology. Integrated power and DMX signal cable and hand-in-hand wiring layout are designed for easy reliable installation. SOURCE

• Light source: 2×15 multi-chip RGBW
• LED life expectancy: 50,000 Hrs
• Peak Intensity: 3250cd (20°)

OPTICAL SYSTEM

• Optics: 22°
• Light output: 850 Lux @2m @ 22°

CONTROL & PROGRAMMING

• Control Protocols: DMX, RDM
• DMX control channels: 0-100%
• Controllable sections: 1
• Color Mixing: RGBW

 ELECTRICAL

• Input Voltage: AC100~277V
• Max Power: 40 W
• Power Factor: > 0.9

CONNECTIONS

• Power connection: 3m cable (input only)
• Data connection: 3m cable (input output)

PHYSICAL

• Dimensions: 170 x 176 x 164 mm
• Net Weight: 1.7 kg
• Color: Off White (Optional: Gray, Black)
• Housing: Die-cast aluminum
• IP Rating: 66
• Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C
