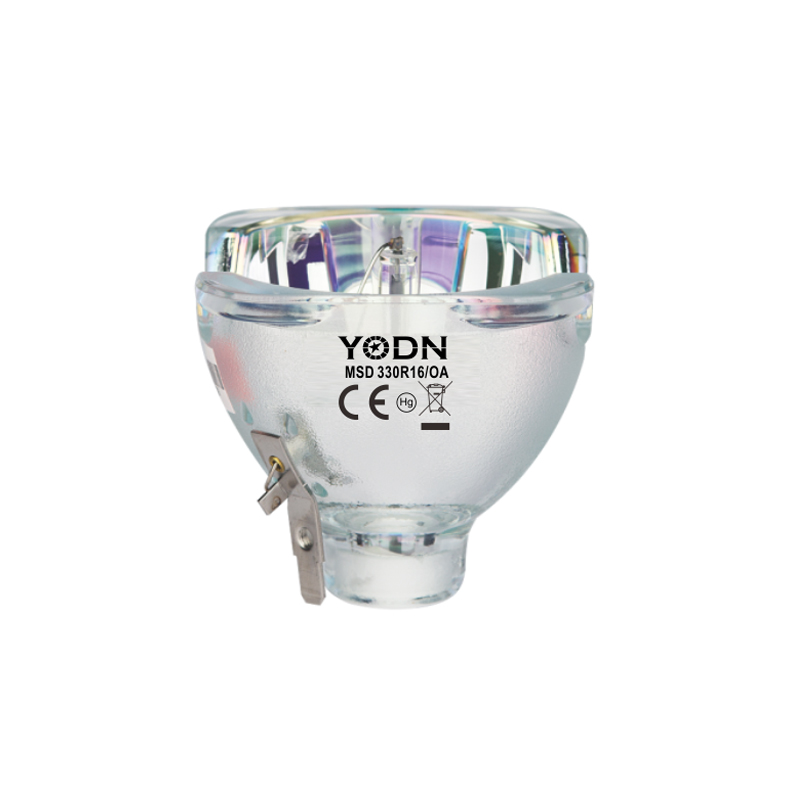

YODN MSD 330R16 - Compact High Output Lamp

Product Description

The YODN MSD 330R16 is a popular lamp used in a plethora of moving stage lights by numerous

The MSD 330R16 has modern HID technology using extra short light architecture for the highest light output on a much compact size. It holds a special design to prevent the projection of hot spots by distributing the light evenly. Made with an elliptic glass mirror reflector for the best light reflection. This lamp comes with a high color temperature, especially for the needs of technology shows.

This is a 330W lamp that features 13000lm of lumen output. It’s color temperature is 7300K and it has a CRI of 75. The lamp’s average life is 1500 hours.

Main Elements

• Long and reliable lifetime(1500 hours)
• High beam intensity
• Freedom to create smaller and lighter fixtures
• Perfect alignment and placing with lamp replacements in seconds
• Renewed optical system with maximum light output
• High perceived brightness

Lamp Dimensions	56 x 56 x 63mm
Ballast Dimensions	135 x 50 x 30mm
Wattage	330W
Voltage	85V
Lumen Output	13.000lm
Color Temperature	7300K
CRI	75Ra
Average Lamp Life	1500 hrs
