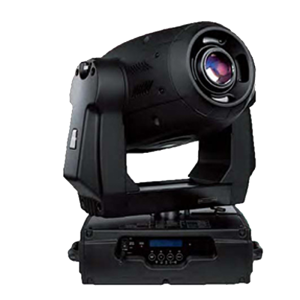

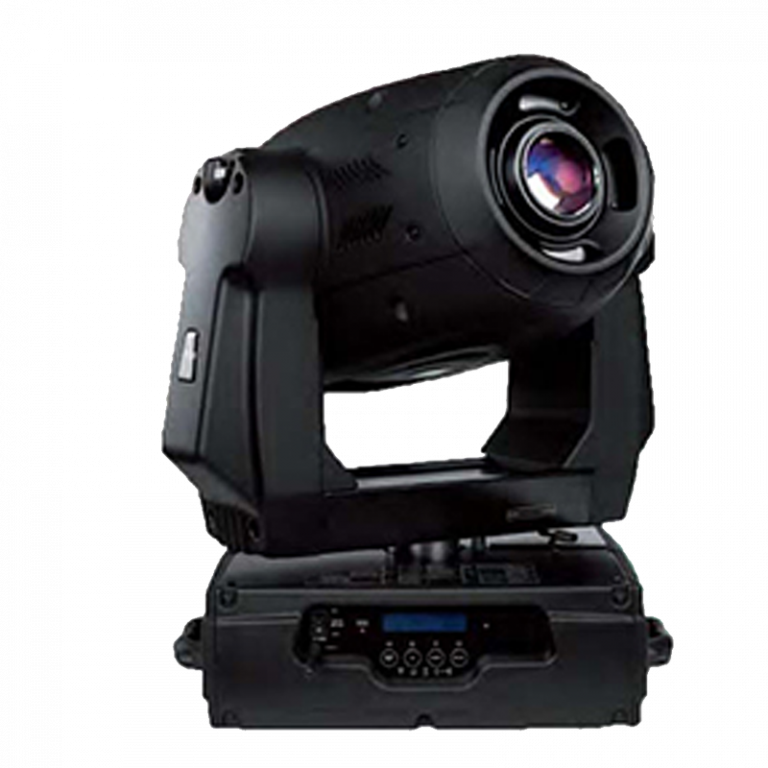

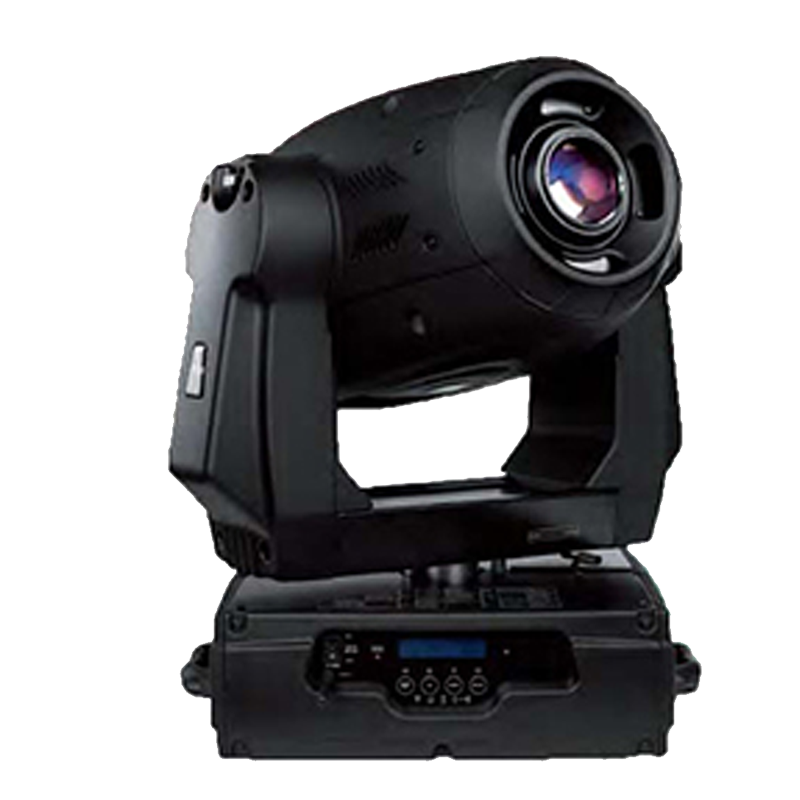

CL 575S-ER – Beam Moving Head

CL 575S-ER is a powerful lamp moving head with a wide variety of effects. It features one color wheel with 8 interchangeable dichroic filters, two rotating gobos each with 6 interchangeable and indexable rotating gobo, one rotating prism with 3 facets and special effects animation wheels. The multi functionality of this fixture makes suitable for entertainment applications.

Product Description

CL 575S-ER is a powerful lamp moving head with a wide variety of effects. It features one color wheel with 8 interchangeable dichroic filters, two rotating gobos each with 6 interchangeable and indexable rotating gobo, one rotating prism with 3 facets and special effects animation wheels. The multi functionality of this fixture makes suitable for entertainment applications.

SOURCE

  • Light source: Philips MSR gold 575 SA/2 DE
  • Color temperature: 7500K
  • LED life expectancy: 1500 Hrs.

OPTICAL SYSTEM

  • Beam angle: 14° to 32°
  • Light output: 35,000 Lux @ 2.5m @ 14°

DYNAMIC EFFECTS

  • Dimmer: 0-100% linear adjustment
  • 1 Color wheel with 8 interchangeable dichroic filters 2 Rotating gobo each has 6 interchangeable and indexable, rotating gobos
  • Strobe: 0-13Hz
  • Prism: 1 rotating prism with 3 facets
  • Animation wheel: Special flames or water effects
  • Motorized focus
  • Iris: 0-100%
  • Frost: 5-100%
  • Flicker Free

CONTROL & PROGRAMMING

  • Control protocols: DMX, Sound, Master-Slave
  • LCD blue display with rechargeable back up
  • Remote DMX addressing, Lamp on/off
  • Sound control switch by controller
  • Control channels: 24 CHs

MOVEMENT

  • Pan: 540°/630° optional
  • Tilt: 265°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz
  • Power consumption: 575 watts

CONNECTIONS

  • DMX connections: 3 pin and 5 pin XLR In/Out male and female
  • Power connections: Power Cable input

PHYSICAL

  • Dimensions: 515 x 470 x 367mm
  • Net weight: 31Kg
  • Color: Black
  • IP rating: 20
  • Operating temperature: 0°C/45°C
