DWARF 412-RGBW

Architectural DWARF412 BackDWARF SIDEArchitectural DWARF412

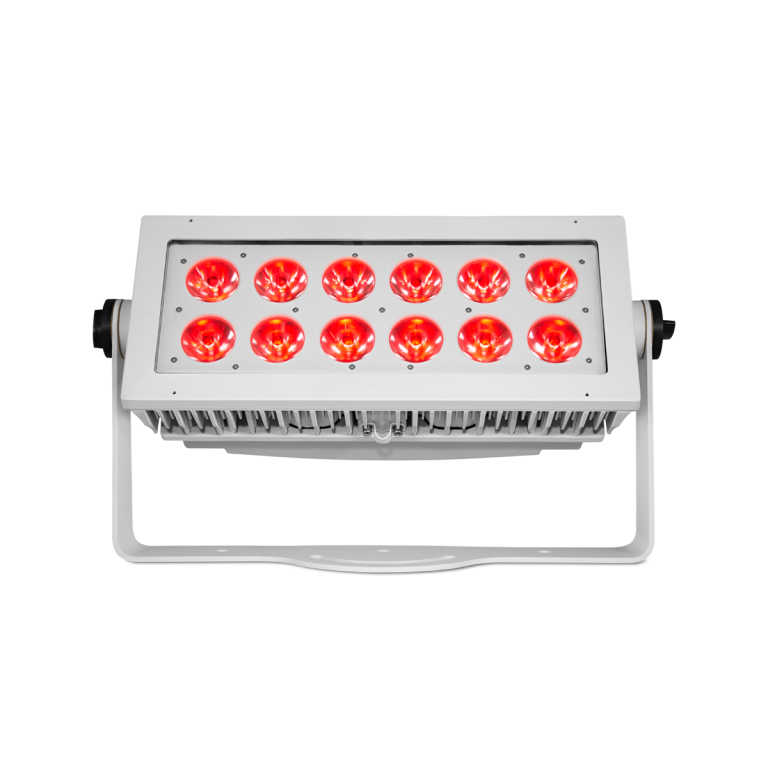

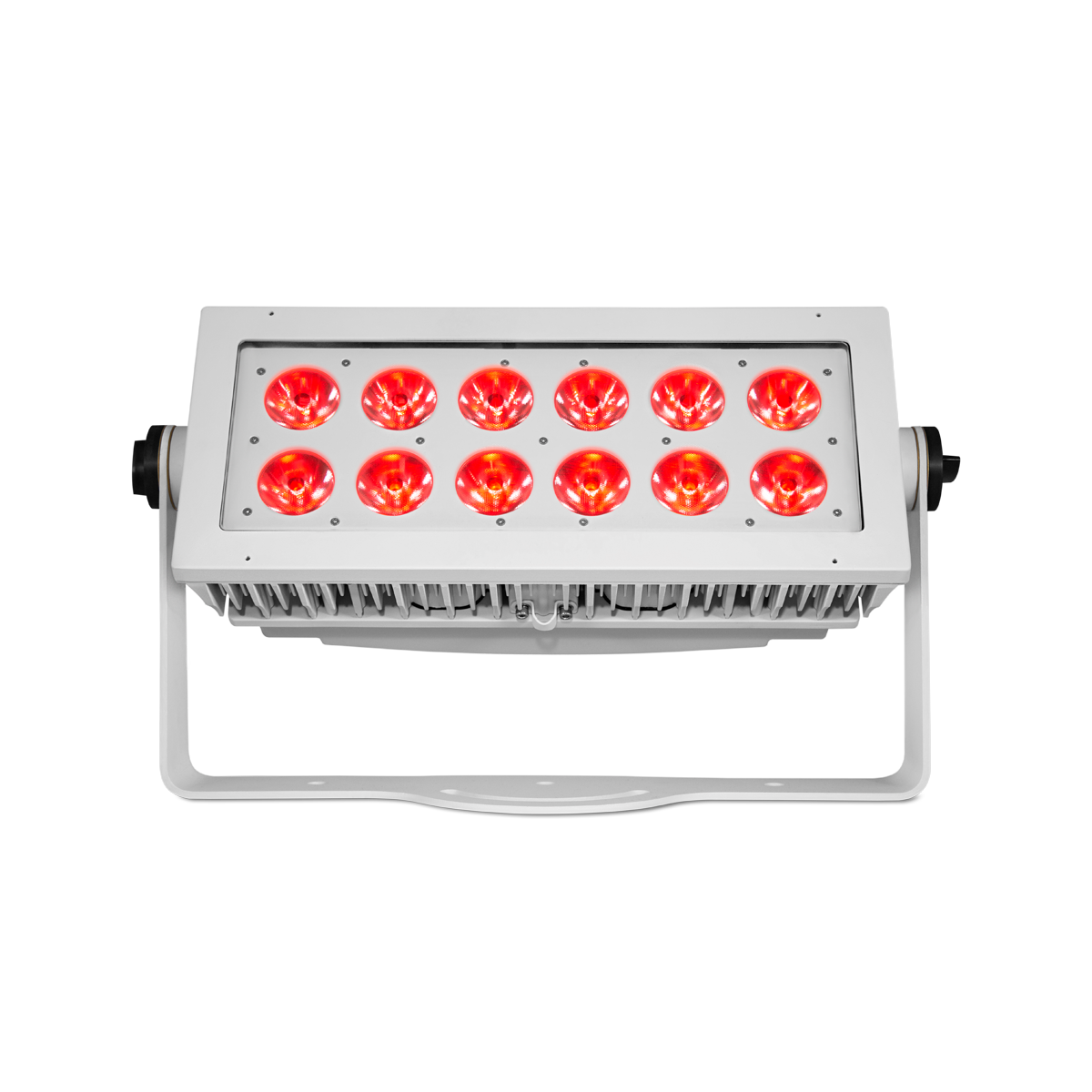

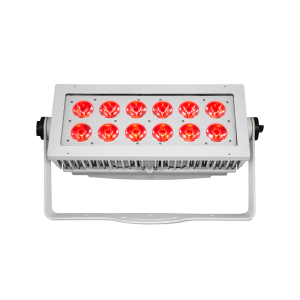

Architectural DWARF412 R
Architectural DWARF412 Back
DWARF SIDE
Architectural DWARF412

DWARF 412-RGBW is a 12×15 watts multi-chip RGBW, LED Exterior wash. It adopts a new quad LED chips, inserted with smart temperature control system, performing high color saturation and outstanding color mixing. Employing creative digital lighting dimming
technology and a flexible segment control system, the fixture makes the perfect artistic lighting effect.



SKU: Dwarf412RGBW Categories: , , Brand:

Product Description

DWARF 412-RGBW is a 12x15 watts multi-chip RGBW, LED Exterior wash. It adopts a new quad LED chips, inserted with smart temperature control system, performing high color saturation and outstanding color mixing. Employing creative digital lighting dimming
technology and a flexible segment control system, the fixture makes the perfect artistic lighting effect.

SOURCE

  • Light source: 12x15 watts multi-chip RGBW
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity:117500cd

OPTICAL SYSTEM

  • Optics: 15°
  • Light output: 19,000 Lux @2m @15°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 3
  • Color Mixing: RGBW

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 200 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable (input only)
  • Data connection: 3m cable (input output)

PHYSICAL

  • Dimensions: 530 x 200 x 313mm
  • Net Weight: 12kg
  • Color: Off-white(Gray, Black Optional)
  • Housing: Die-cast aluminum
  • IP Rating: 66
    Operation temperature: - 40°C~45°C (operating) /- 20°C~45°C (startup)

Download

Data Sheet
