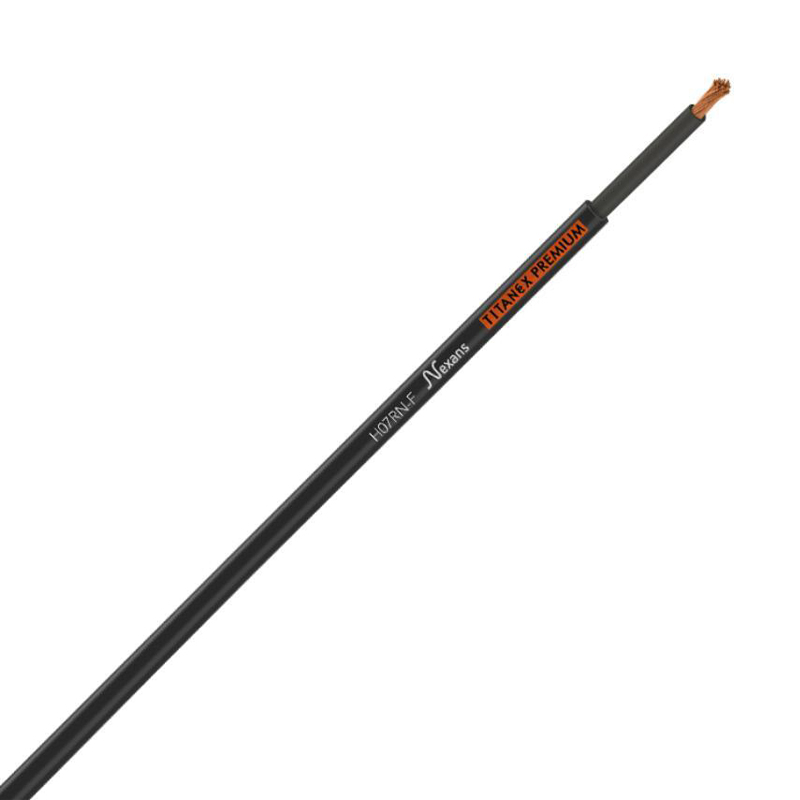

H07RN-F TITANEX 1G120 - Industrial Flexible Rubber Cable, 1 Core x 120mm2

Product Description

Technical Specifications:

Construction characteristics

• Conductor material: Copper class 5
• Insulation: Cross-linked synthetic elastomer type EI 4 waterproof, EI 6, EI 7, EI 8
• Outer sheath: Cross-linked synthetic elastomer type EM2 waterproof, EM6, EM7, EM8
• Sheath colour: Black
• Conductor flexibility: Flexible class 5
• Conductor shape: Circular
• Halogen free: Yes
• With Green/Yellow core: No
• With smaller neutral conductor: No

Dimensional characteristics

• Number of cores: 1
• Conductor cross-section: 120 mm²
• Approximate net weight: 1430 kg/km
• Maximum outer diameter: 28.6 mm
• Neutral conductor section (when smaller): – mm²

Electrical characteristics

• Rated Voltage Uo/U (Um): 450 / 750 V
• Permissible current rating in open air: – A
• Permissible mobile installation current: 299 A
• Protected and fixed installation current: 382 A
• Voltage drop, single phase: 0.36 V/A.km

Mechanical characteristics

• Mechanical resistance to impacts: Good
• Cable flexibility: Flexible

Usage characteristics

• Bending factor when installed: 4 (xD)
• Dynamic bending factor: 8 (xD)
• Flame retardant: NFC 32070 C2, IEC 60332-1-2
• Max. conductor temperature in service: 90 °C
• Maximum operating temperature: 85 °C
• Minimum operating temperature: -50 °C
• Oil resistance: Good
• RoHS compliant: Yes
• Short-circuit max. conductor temperature: 250 °C
• Water proof: AD8
