Product Description

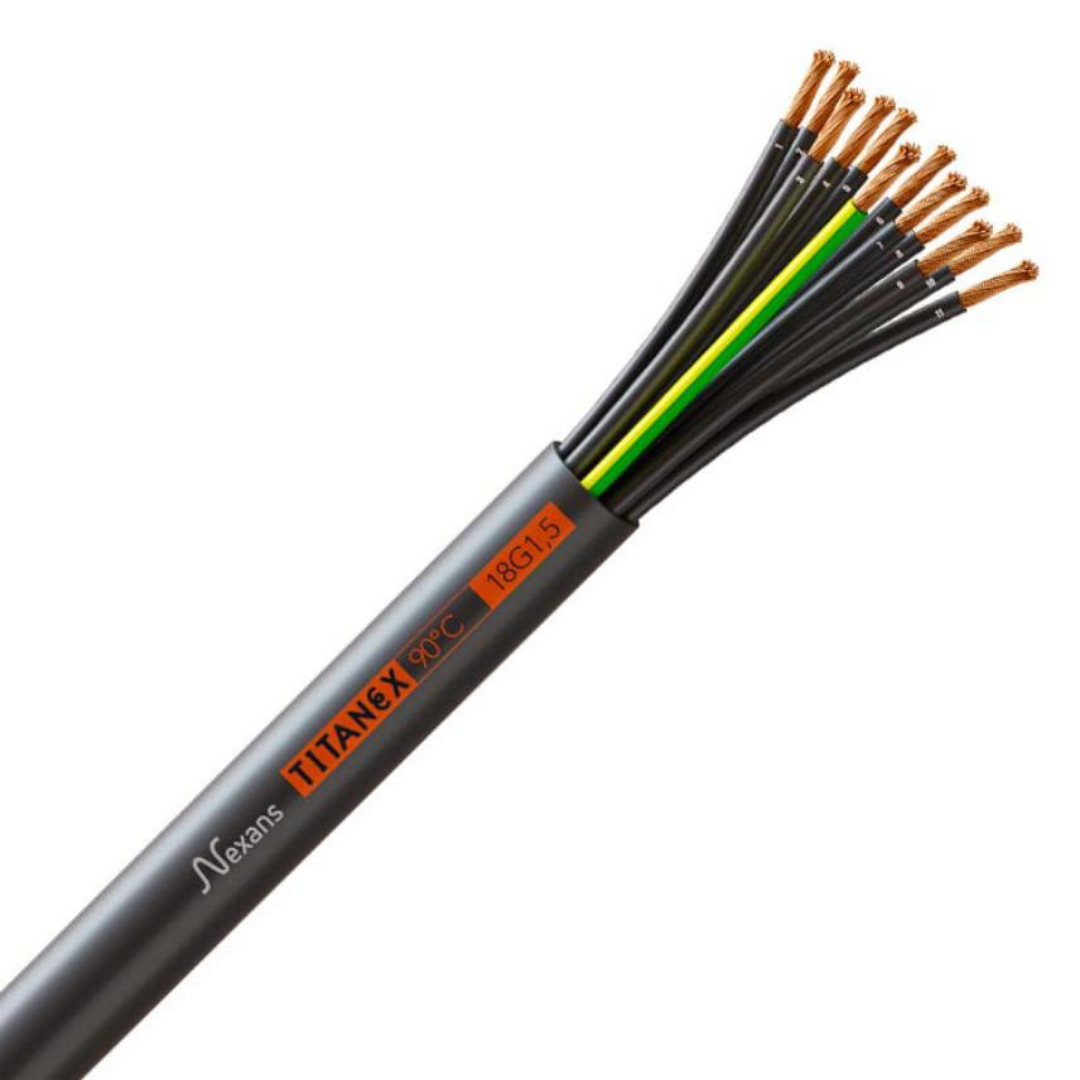

H07RN-F TITANEX 18G1.5, Industrial flexible rubber cable, 18 core x 1.5mm2
The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions.
Made in France
TITANEX-18G2.5
| Construction characteristics |
| Conductor material |
Bare copper |
| Conductor flexibility |
Flexible class 5 |
| Insulation |
Special cross-linked elastomer |
| Outer sheath |
Special cross-linked elastomer |
| Sheath colour |
Black |
| Lead free |
Yes |
| With Green/Yellow core |
Yes |
| With smaller neutral conductor |
No |
| Dimensional characteristics |
| Number of cores |
18 |
| Conductor cross-section |
2.5mm² |
| Minimum outer diameter |
24.4mm |
| Maximum outer diameter |
30.9mm |
| Approximate weight |
1018kg/km |
| Electrical characteristics |
| Rated Voltage Uo/U (Um) |
450 / 750 V |
| Voltage drop, single phase |
13.9V/A.km |
| Permissible current rating in open air |
14A |
| Mechanical characteristics |
| Mechanical resistance to impacts |
AG3 |
| Cable flexibility |
Flexible |
| Usage characteristics |
| Silicone free |
Yes |
| Chemical resistance |
Accidental |
| Water proof |
Good |
| Flame retardant |
C2, NF C 32-070 & IEC 60332-1 |
| Packaging |
Cut to length |
| Operating temperature, range |
-25 .. 55°C |
| Max. conductor temperature in service |
90°C |
| Short-circuit max. conductor temperature |
200°C |
| Oil resistance |
Yes |
| RoHS compliant |
Yes |
TITANEX-18G1.5
