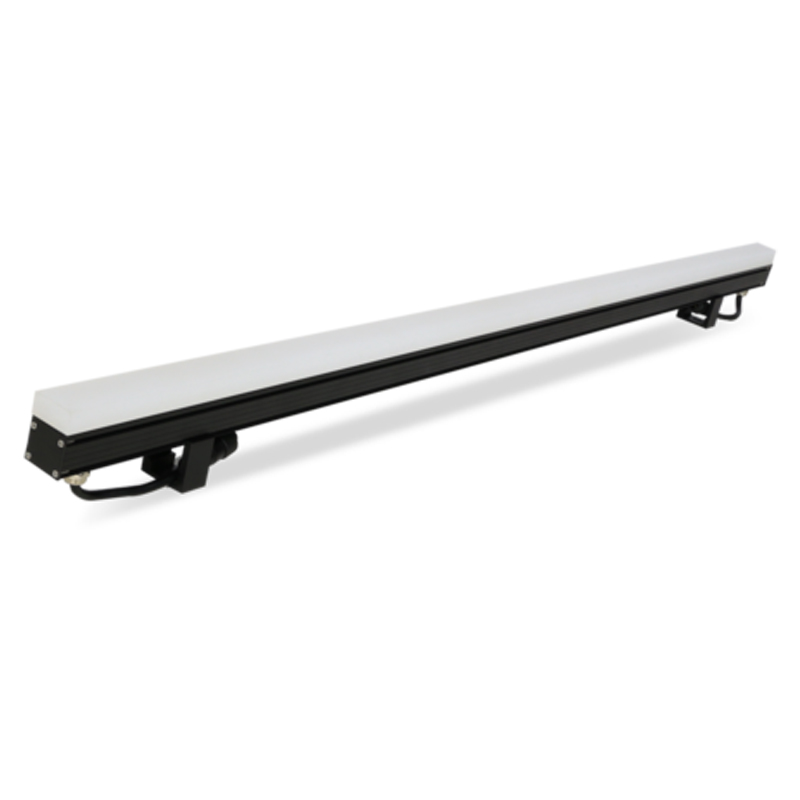

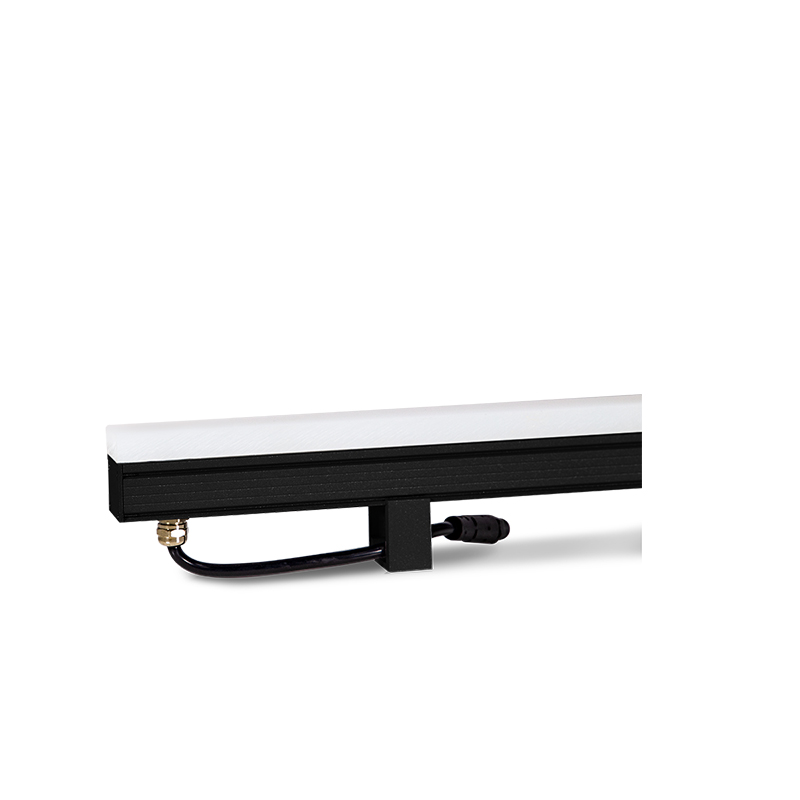

PIXIBAR 48-IS – Indoor RGB Digital LED Bar with Square Diffuser

PixiBar 48-IS is a 48 SMD5050 RGB LED pixel bar. This one meter bar provides great color mixing and pixel effects with 16 pixels control and a square diffuser cover. It is ideal for linear and grid installations on the wall or ceiling of club, stage and events.

Categories: , , Brand: Series:

Product Description

PixiBar 48-IS is a 48 SMD5050 RGB LED pixel bar. This one meter bar provides great color mixing and pixel effects with 16 pixels control and a square diffuser cover. It is ideal for linear and grid installations on the wall or ceiling of club, stage and events. SOURCE
  • Light source: SMD5050 RGB LEDs
  • LED quantity: 48 LEDS
OPTICAL SYSTEM
  • Cover: Square diffuser
  • View angle: 120°
CONTROL & PROGRAMMING
  • Pixels control: 16
  • Color mixing: RGB
  • Control protocols: DMX, 44 FPS
  • Control channels: 48 CHs
  • Address setting: Manual
ELECTRICAL
  • Input voltage: 24V
  • Power consumption: 10 watts
CONNECTIONS

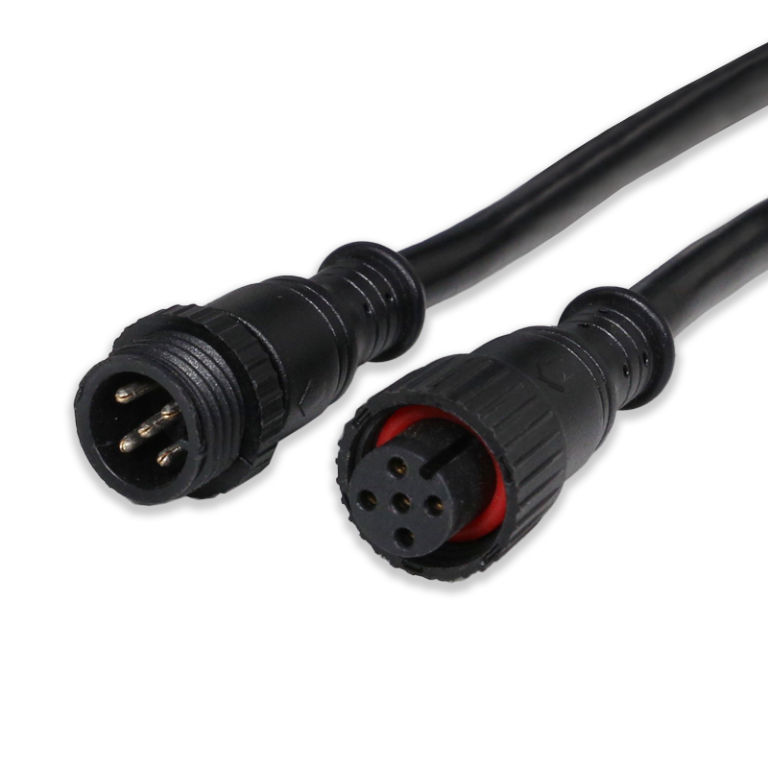

  • Power and data connection: 15cm 5 pin female and male connection
  • Cable entry: Bottom
PHYSICAL
  • Dimensions: 1000 x 28 x 50mm (without bracket) 1000 x 35 x 90mm (with bracket)
  • Color: Black
  • IP rating: 20
  • Operating temperature: -40°C/50°C


Download

Data Sheet
