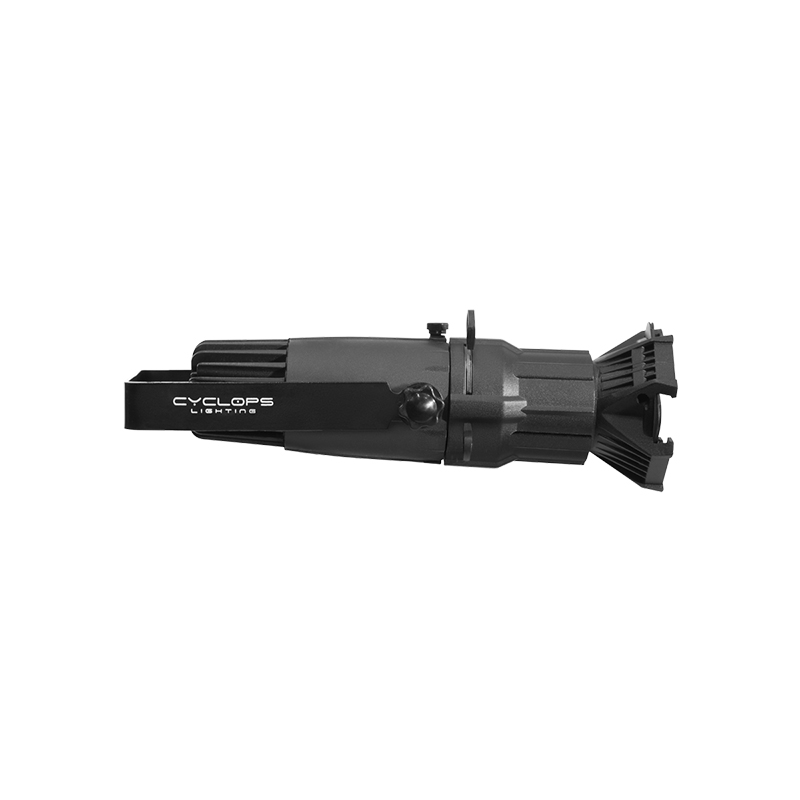

PR 20C - Mini portable - Cool White LED profile

PR 20C is a super small 30 cm LED profile powered by 20 watts Cool white COB LED. Featuring a fixed Lens of 19°, 26°, 36° or 50°, it delivers a crisp projection and even field with a high CRI of 92. Optional Fresnel lenses are available to get a wash effect from the same LED engine as well as DMX and Power track adapter. This LED Profile can be best deployed in museums, art galleries, exhibitions, and retailer shops.

Clear
SKU: PR20C Categories: , , Brand: Series:

Product Description

PR 20C is a super small 30 cm LED profile powered by 20 watts Cool white COB LED. Featuring a fixed Lens of 19°, 26°, 36° or 50°, it delivers a crisp projection and even field with a high CRI of 92. Optional Fresnel lenses are available to get a wash effect from the same LED engine as well as DMX and Power track adapter. This LED Profile can be best deployed in museums, art galleries, exhibitions, and retailer shops.

SOURCE

  • Light source: 20 watts Cool white LED
  • Color temperature: 5600 K
  • LED life expectancy: 50,000 Hrs

PHOTOMETRICS

  • CRI (Color Rendering Index) : >92
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >94
  • TM-30 Rg (IES TM-30-15 Gamut Index): >102
  • TLCI (Television Lighting Consistency Index): >97

OPTICAL SYSTEM

  • Fixed lens: 19°, 26°, 36° or 50°
  • Optional Fresnel lenses

KEY FEATURES

  • 2 Dimmer curves
  • Strobe
  • Video flicker free
  • Silent operation

CONTROL & PROGRAMMING

  • Control protocols: Rotary, DMX
  • Control channels: 1, 3 CHs

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz
  • Output: 20-42V /600mA DC

 CONNECTION

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: 30-42V/600mA adaptor

PHYSICAL

  • Dimensions: 295 x 130 x 120mm
  • Net weight: 1.3 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 20
  • Operating temperature: -5°C/45°C



Additional information

Lens

19°, 26°, 36°, 50°

Download

Data Sheet
