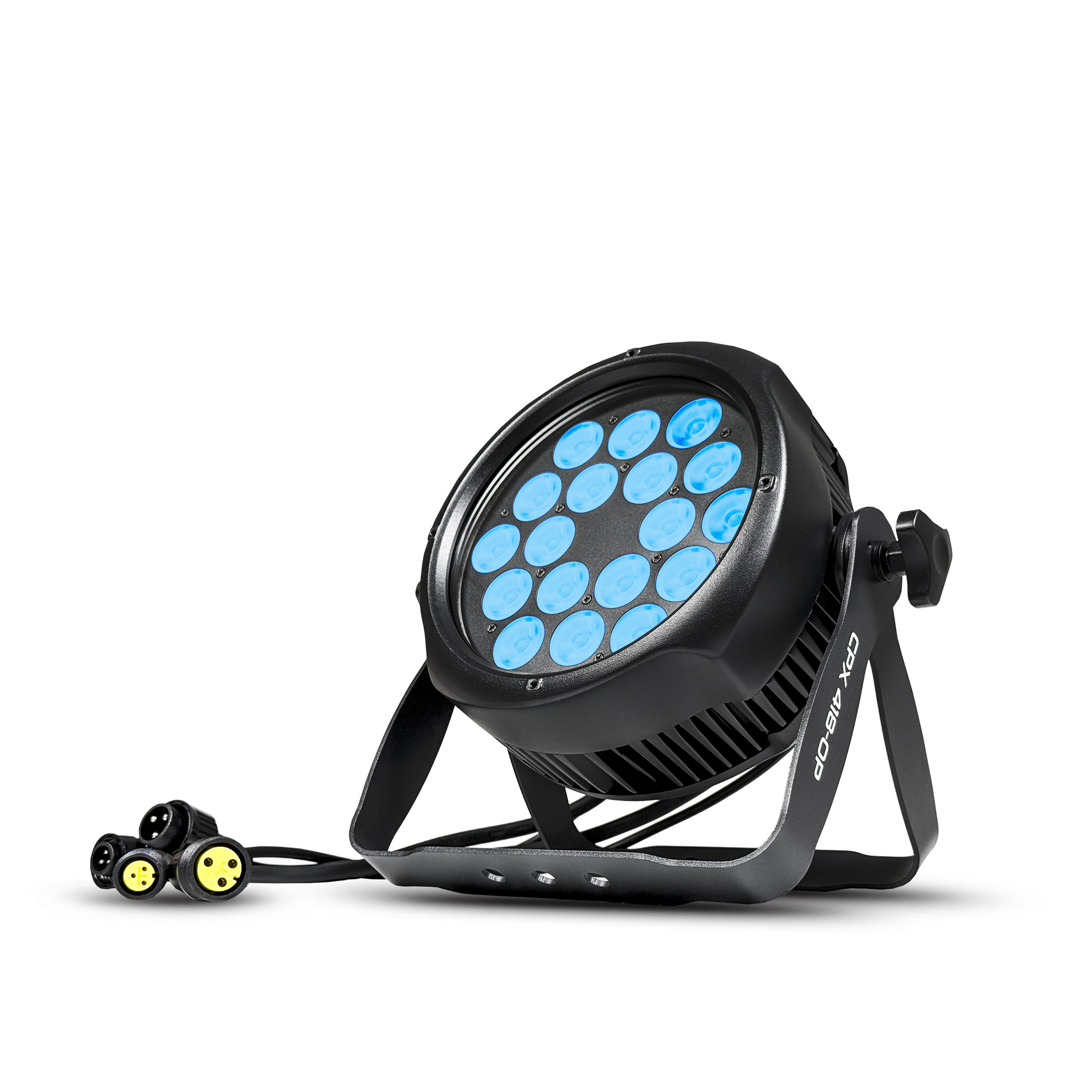

CPX 418OP - Outdoor RGBW LED Par

Product Description

SOURCE

• Light source: 18 x 12 watts, 4 in 1 RGBW LEDs
• LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

• Beam angle: 25°
• Light output: 7000 Lux @ 2m @ 10°

DYNAMIC EFFECTS

• Color mixing: RGBW
• Dimmer: 4 selectable dimming curves
• Strobe and fade effect
• Built-in color and dynamic macros

CONTROL & PROGRAMMING

• Display : TFT displayer with 4 buttons
• Control protocols: DMX, Master-Slave, Auto Run
• Control channels: 3, 4, 6, 8, 11 CHs

 ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 230 watts

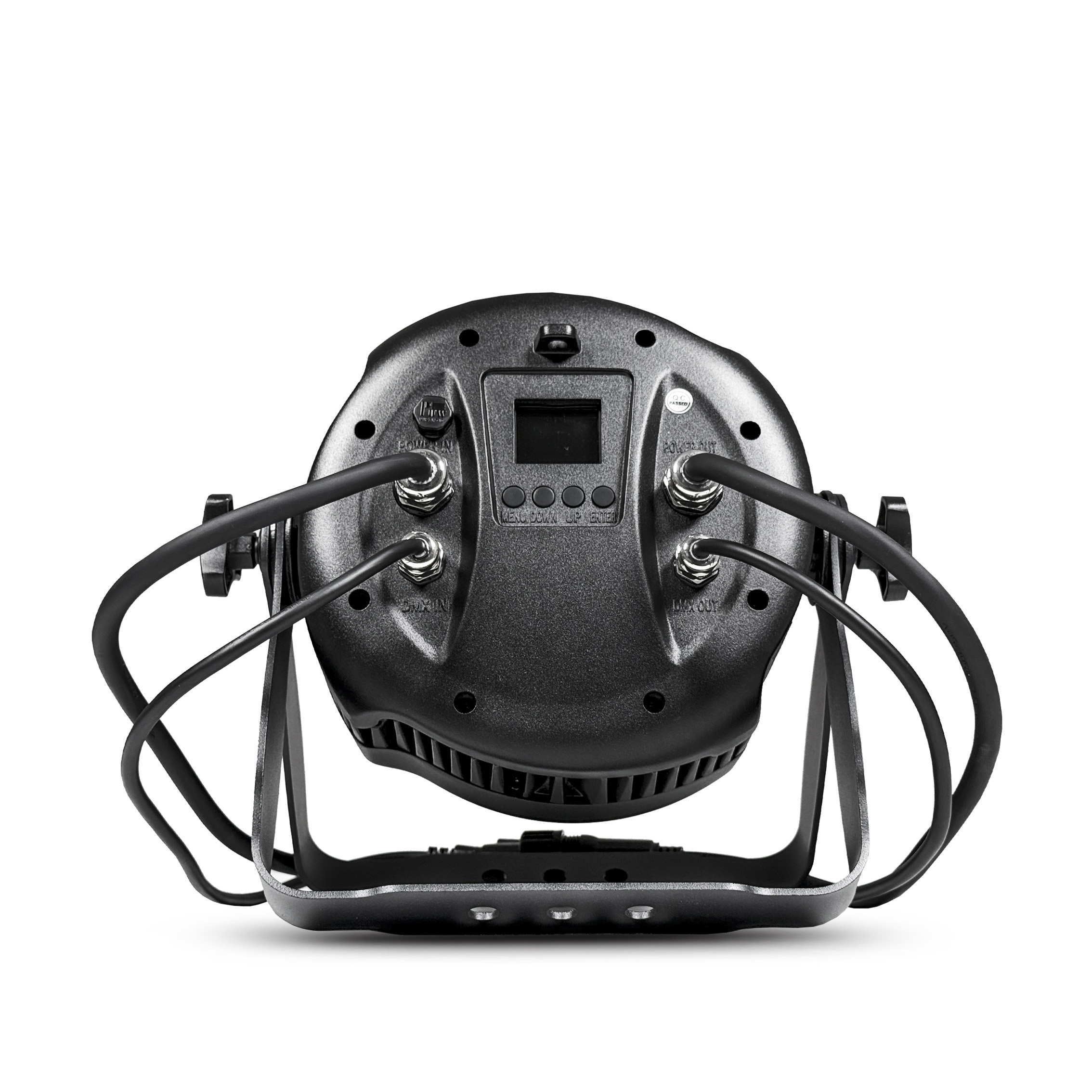

 CONNECTIONS

• DMX connections: IP DMX In/Out cables with 3 pin screw lock connectors
• Power connections: IP Power In/Out cable, screw lock connectors

 PHYSICAL

• Dimensions: 280.32 x 142.56 x 288.28mm
• Net weight: 5 Kg
• Color: Black
• Housing: Aluminum
• IP rating: 65
• Operating temperature: -20°C/45° C
