R-Series (AD/DA) 2nd-generation - I/O Racks

Product Description

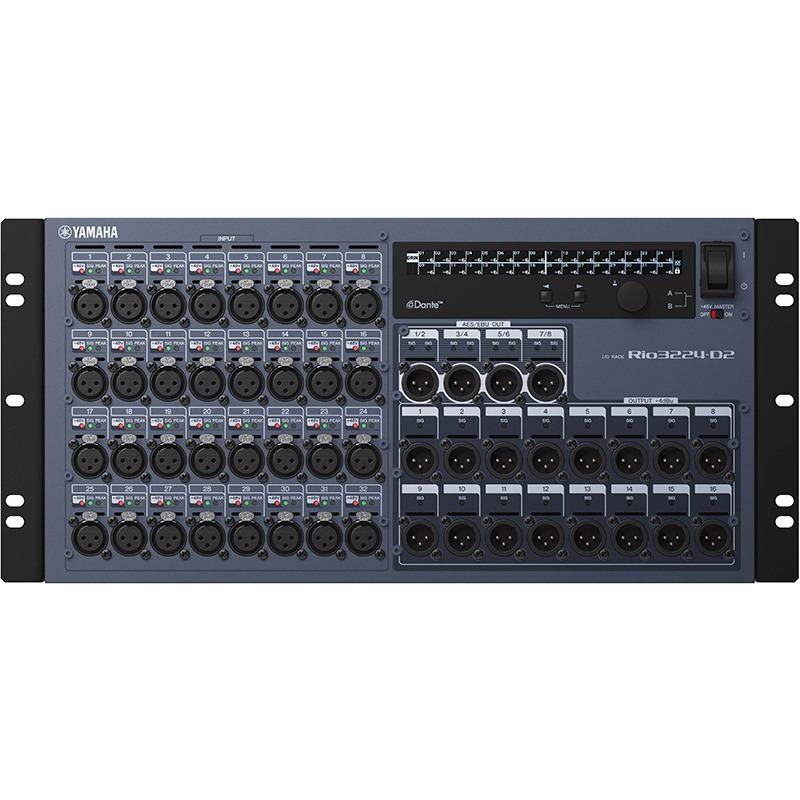

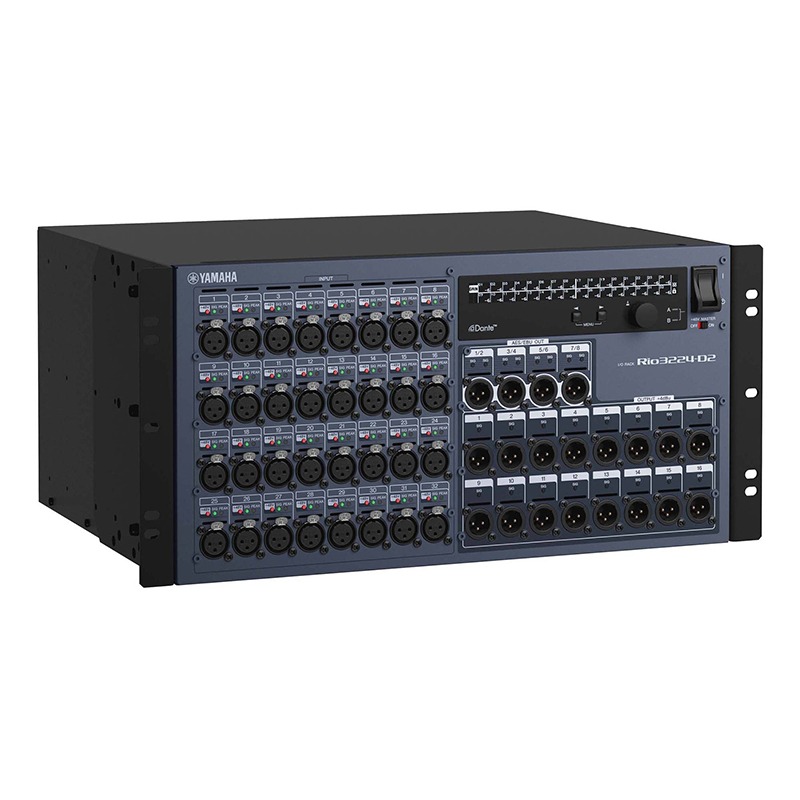

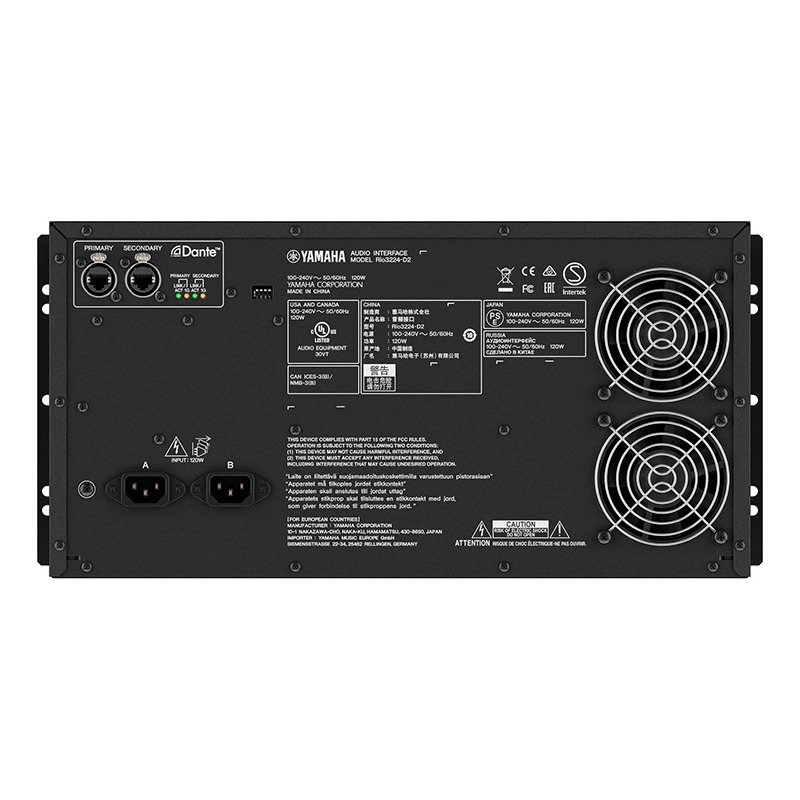

Rio3224-D2 I/O Rack

This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

• 32 analog inputs and 16 outputs, and 8 digital outputs.
• Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
• Comprehensive display and local control of gain and other parameters.
• Dual power supply units are built in for high reliability.
• Power consumption: 120W
• Dimensions (WxHxD): 480 x 220 x 368mm (18.9″ x 8.7″ x 14.5″)
• Net Weight: 13.5 kg (29.8 lbs)

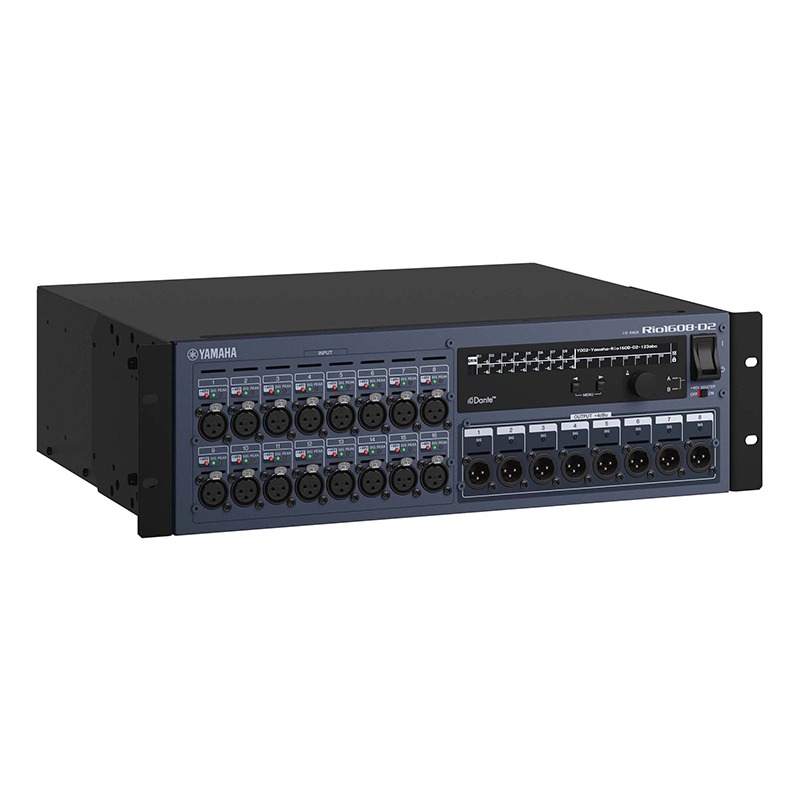

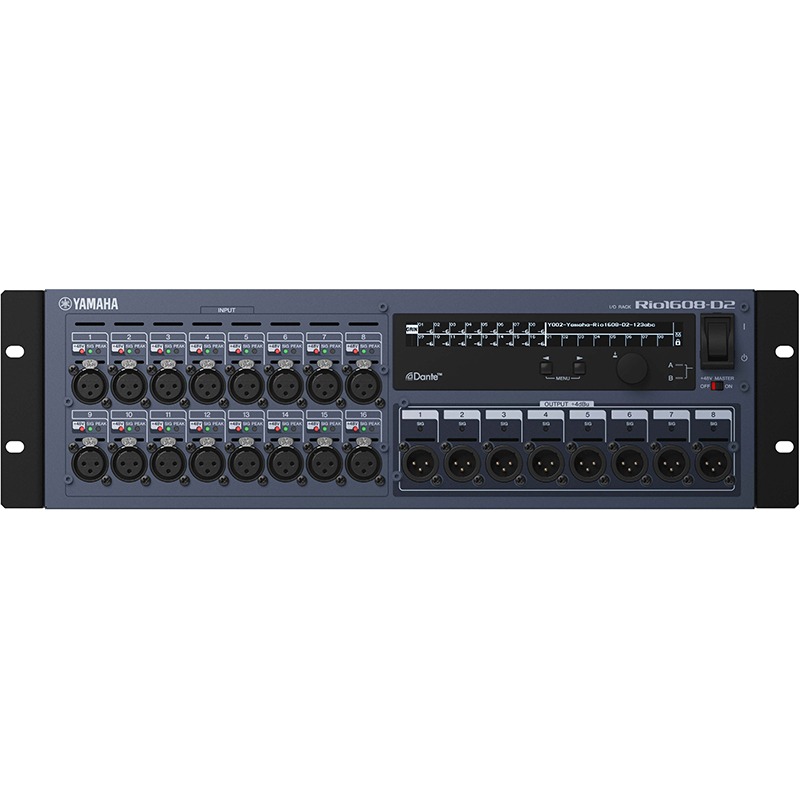

Rio1608-D2 I/O Rack
