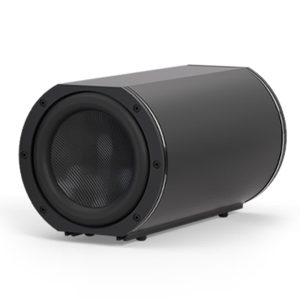

Truffle-KTR26 – Passive Subwoofer

The Truffle-KTR26 is the largest model in the compact line of Truffle subwoofers applied when low-end sustain is needed.

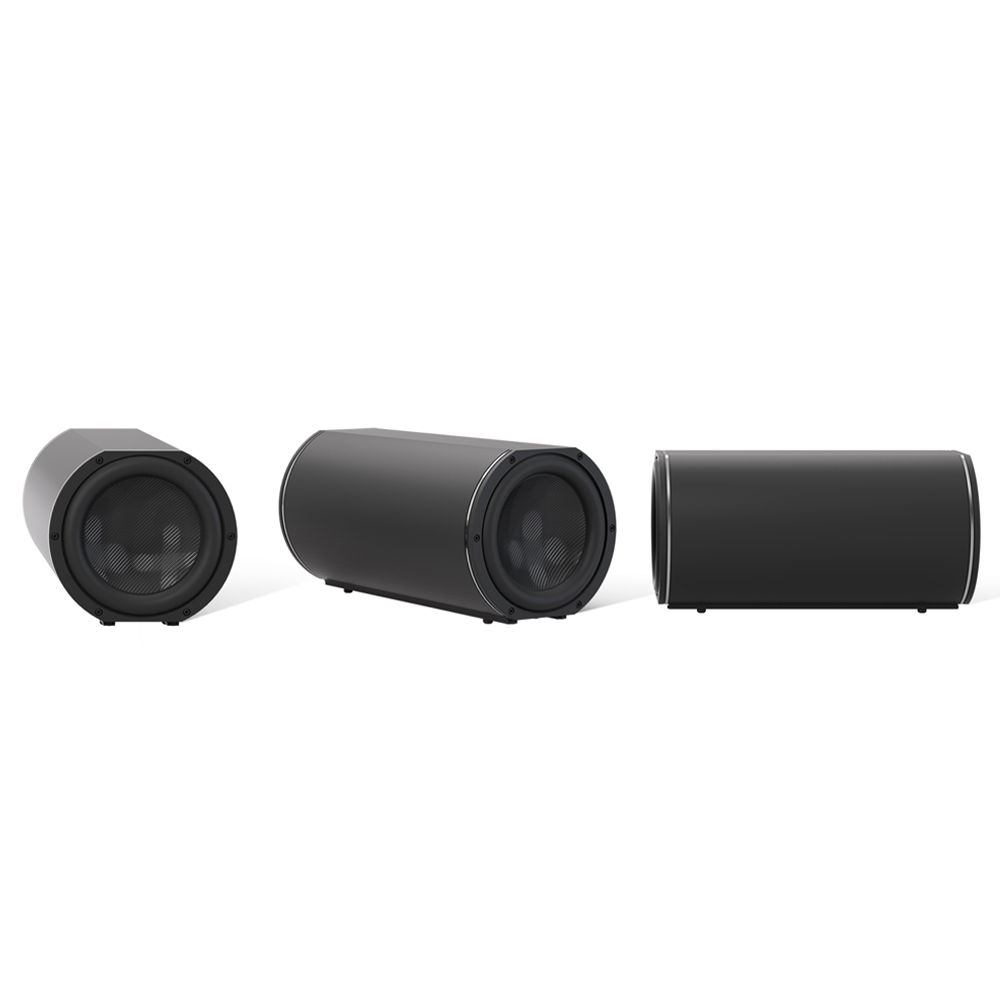

The source subwoofer has a frequency range of 45 Hz to 150 Hz and is comprised of a single 6.5″ driver with passive radiators. For a hidden installation, the Truffle-KTR26 was designed with an 12″-long cylindrical speaker box equipped with one 6.5″ active driver on one end and one symmetrical 6.5″ passive speaker on the opposite end, perfect for an omnidirectional low-end source.

This subwoofer provides the low-end frequencies for the Azimut-KAMUT2V25 audio system.

Product Description

General:

  • Type: Passive subwoofer
  • Transudcers: 6.5″ woofer + passive radiator
  • Frequency Response (1): 45 Hz – 150 Hz (-6 dB)
  • Maximum SPL (2): 120 dB (peak)
  • Rated Power: 100 W
  • Coverage: Omni
  • Connectors: 2PIN euroblock connector (included)
  • Nominal Impedance: 2 Ω

Handling and Finishes:

  • Dimensions (W x H x D): 182 x 176 x 341 mm (7.1 x 6.9 x 13.4 in)
  • Weight: 3,5 kg (7.72 lb)
  • Material: Aluminum
  • Color: Black
  • Finishes: Powder Matte

Regulations:

  • IP Rating: IP6

Notes for data:
(1) With dedicated preset
(2) Maximum SPL is calculated using crest factor 4 (12dB) measured at 1 m.

Passive loudspeakers require dedicated presets loaded on K-array amplifiers.
New materials and designs are introduced into existing products without previous notice.

Downloads

Data Sheet
