DA11AEN - Dante® Audio Analogue Encoder

Name: DA11AEN - Dante® Audio Analogue Encoder
SKU: DA11AEN
Price: 711 AED
Availability: OutOfStock

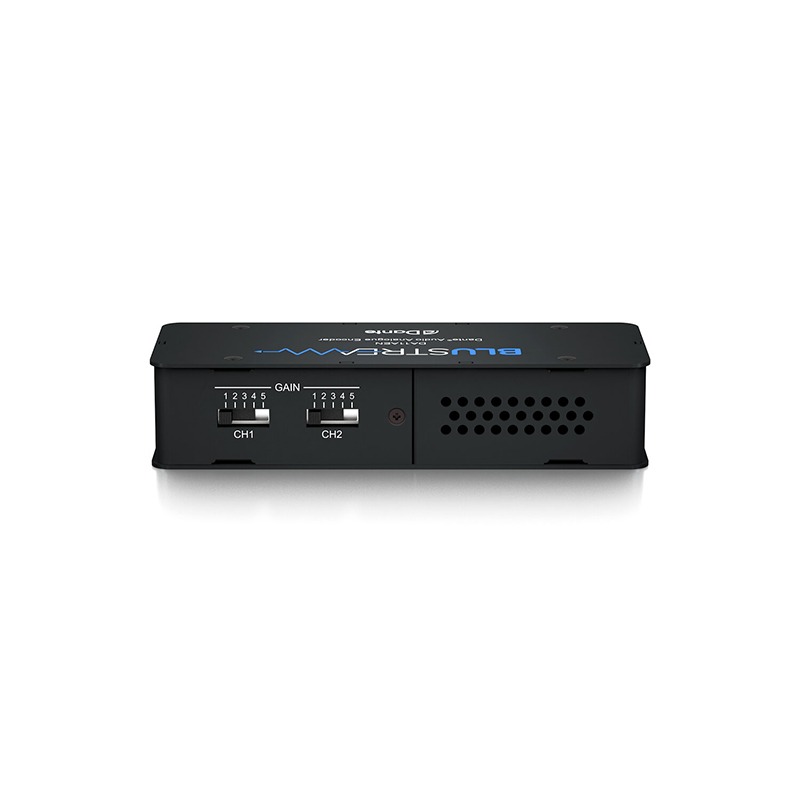

The DA11AEN has been designed to encode unbalanced or balanced 2ch analogue audio to Dante® digital signal.

It allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream matrix products or distribution products to be connected as a source within a Dante® network.

The DA11AEN is a plug & play device that is powered using PoE (Power over Ethernet) from any PoE network switch and supports AES67 RTP audio transport.

Out of Stock

Add to Quote

SKU: DA11AEN Categories: Signal Distribution, Video Signal Distribution Brand: Blustream

Product Description

Key Features

Encodes unbalanced or balanced 2ch analogue audio to a Dante® digital signal
Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
Supports AES67 RTP audio transport
Features Class 1 802.3af PoE for powering of product from any PoE switch
Dante® is a registered trademark of Audinate Pty Ltd

Specifications

Audio Input Connectors: 6-pin Phoenix connector (2ch balanced / un-balanced analogue audio)
Audio Output Connectors: 1 x RJ45, female (100Mbps Dante® network)
Casing Dimensions (W x H x D): 120mm x 23mm x 34mm
Shipping Weight: 0.2kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: Class 1 IEEE 802.3af POE PD

Box Contents
