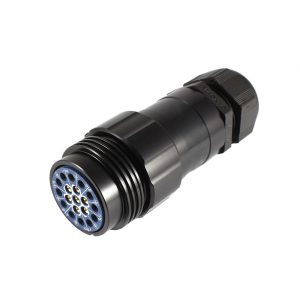

19 Pin Female InLine Solder connector with Lock Ring for 15-23mm Cable Glanding
Machined Aluminum Metal Shell, 600V, 23A per circuit, Solder termination, IP67 when Mated – Made in the UK
Grade 19 Pin Socapex connector has a machined aluminum metal shell for a reliable connection show after show. Comes with Silicone insert for a standard size Socapex cable.
• SHL Connectors are rated 23 Amps, 600 VAC.
• Each circuit can carry up to a maximum of 23 Amps continuous load.
• Interiors are clearly and permanently marked on front and back for
ease of wiring and circuit identification.
Current Rating 23 Amps
Voltage Rating 600 VAC Max
Operating Temp –55°C / +60°C
Ingress Protection IP67 watertight when mated
Shells Machined Aluminum
Finish Hard wearing Black
Cable Entry Standard M40 – 15–23mm
M40 O/S – 26–32mm
Conductor Size Standard 1.5 mm/2.5 mm
Contacts Silver Plated Brass
