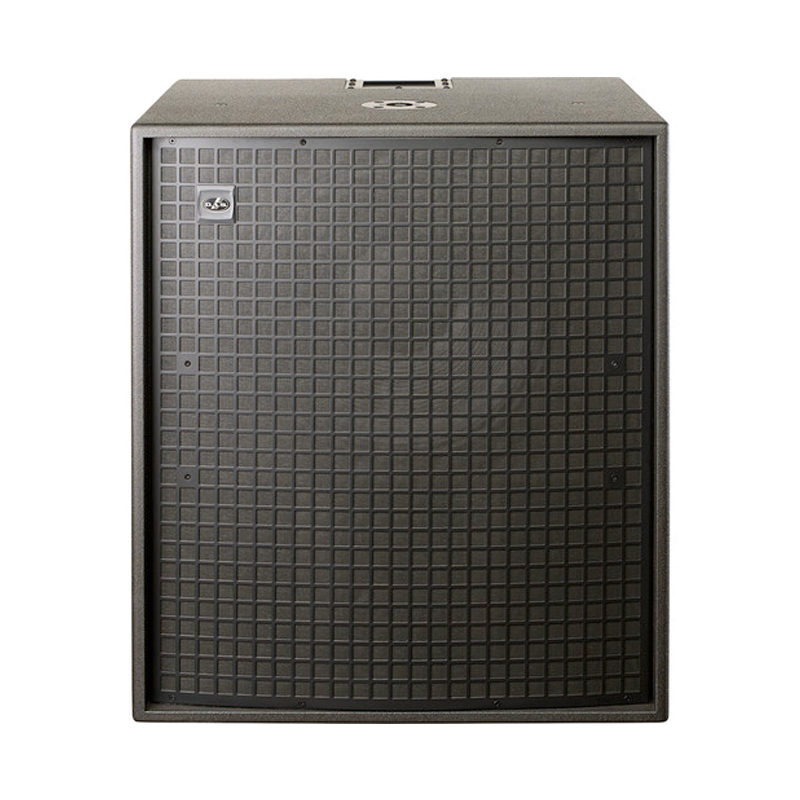

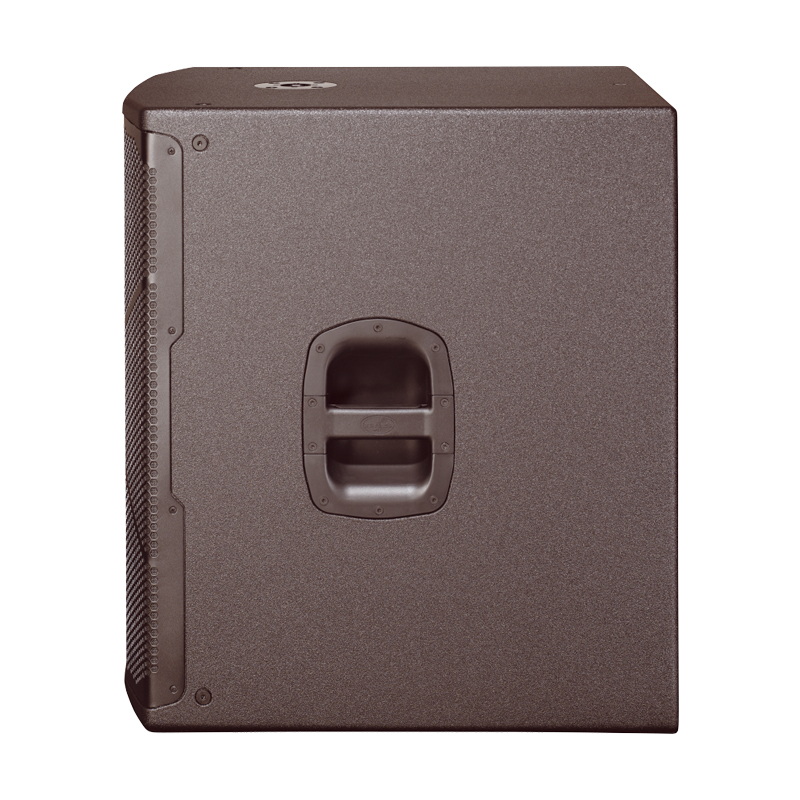

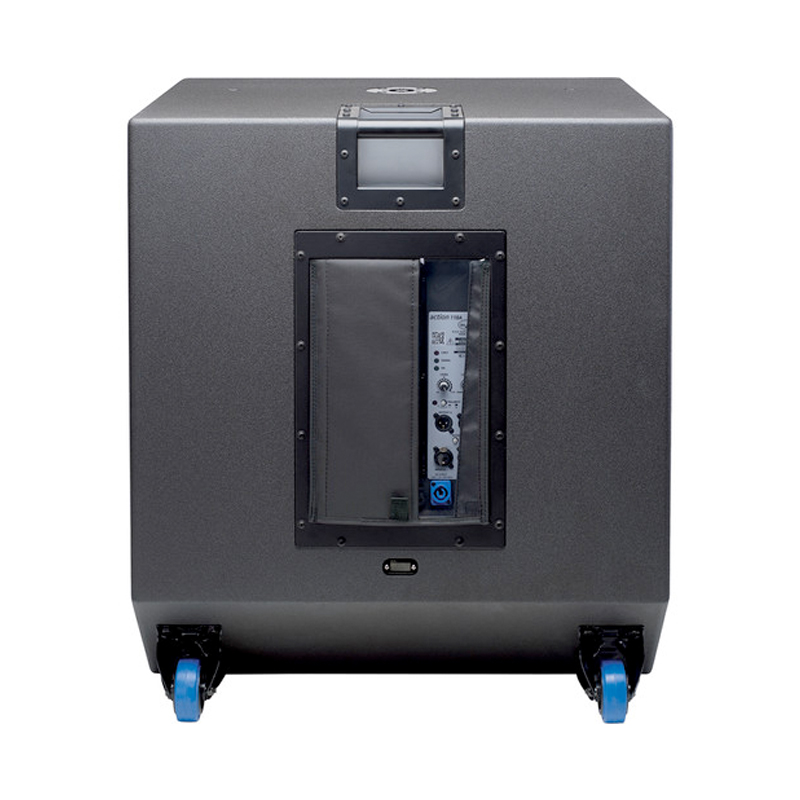

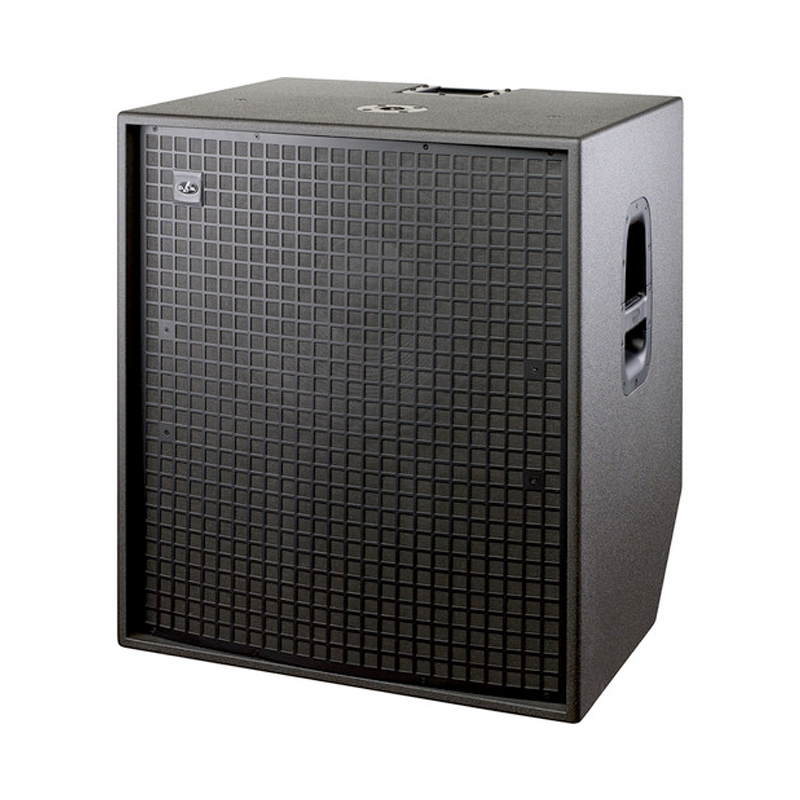

Action 118A – Hornbass Subwoofer

The Action 118A is a powered horn-bass subwoofer system designed to provide extended bass response for the Action full-range cabinets.

Product Description

The Action 118A is a powered horn-bass subwoofer system designed to provide extended bass response for the Action full-range cabinets. A powerful 3200 Wpeak Class D amplifier drives a D.A.S. 18LX long excursion bass loudspeaker incorporating a 4″ voice coil for high power handling and output.The Action 118A is powered by a Class D amplifier with switch mode power supply (SMPS), digital signal processing (DSP) and a 3200 Wpeak power. The amplifier has a unique EQ switch which allows the user to select a Deep subbass response or a Loud bass response. The system includes two balanced inputs with stereo filtered output connections for satellite systems. The variable crossover ranges from 80 Hz-125 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system. – Powered horn-bass subwoofer system – High output 18″ loudspeaker – Polarity switch – Filtered output defeat switch – Variable 80 -125 Hz high-pass filter – Gain control Product features
  • Nominal LF Amplifier Power:3200 Wpeak,1600 Wcontinuous (Class D)
  • Frequency Range (-10 dB) Loud: 50 Hz – 125 Hz Deep: 45 Hz -125 Hz
  • Rated Peak SPL at 1 m:137 dB
  • Internal Crossover:Variable LPF 80 Hz-125 Hz

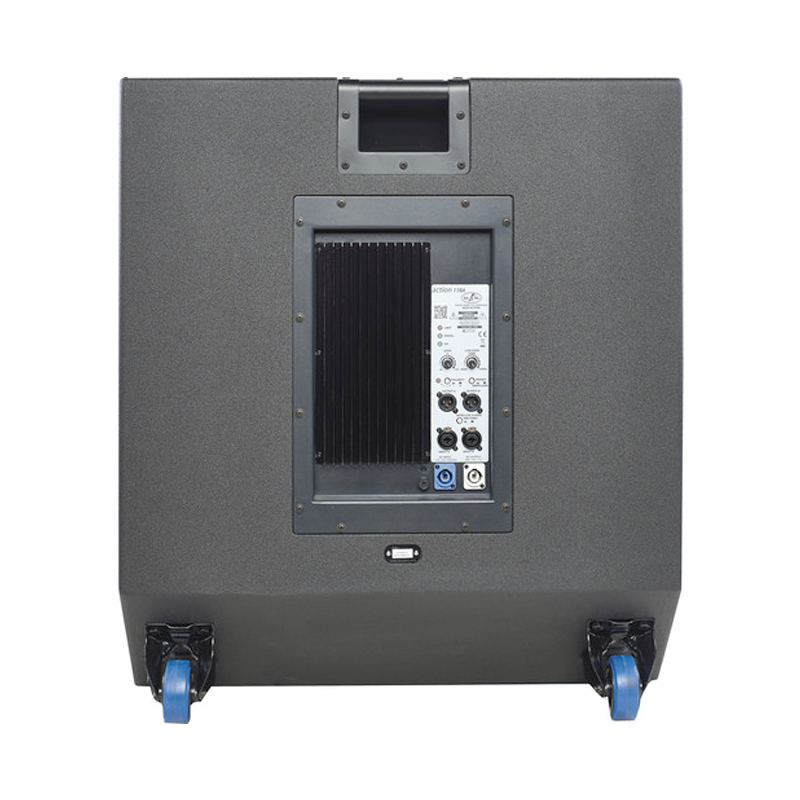

  • Connectors INPUT: 2 x Female XLR LOOP THRU: 2 x Male XLR AC INPUT: powerCON AC OUTPUT: powerCON
  • AC Requirements:115 V, 5.4 A, 50 Hz/60 Hz 230 V, 2.7 A, 50 Hz/60 Hz
  • Enclosure Material:Birch Plywood
  • Color/Finish:Black ISO-flex Paint
  • Dimensions (H x W x D):79.1 x 69.0 x 56.7 cm (31.14 x 27.17 x 22.32 in)
  • Weight:55 kg (121 lb)
