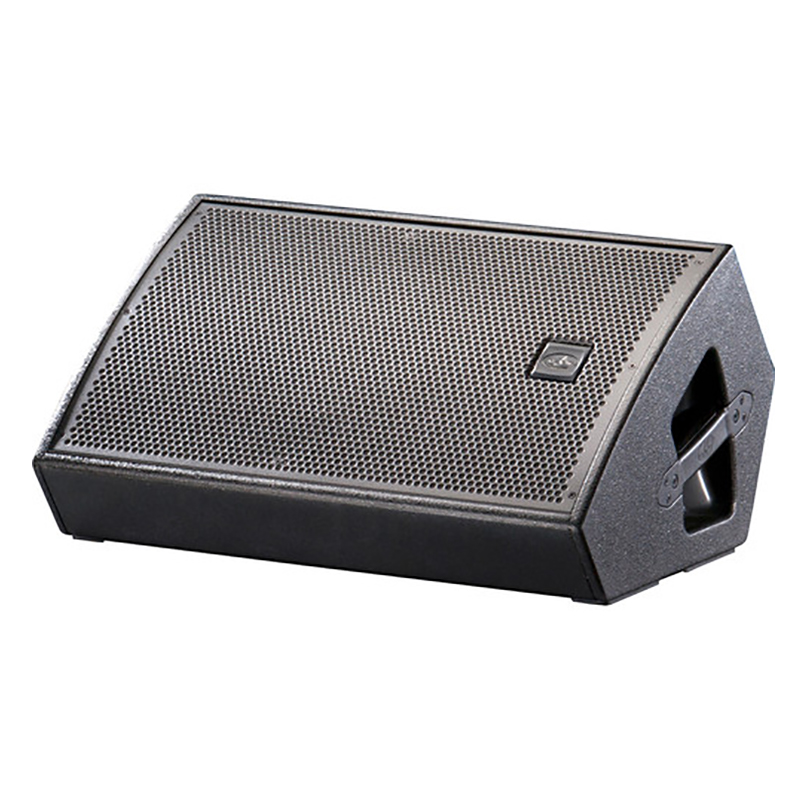

Action M12 – Stage Monitor

The Action M12 is a dedicated stage monitor designed for use with external amplification. The enclosure is constructed from Birch plywood and is protected with a black paint finish. Two side located handles facilitate handling and a steel grille protects the components. A pole mount socket adds versatility to the Action M12.

Product Description

Action M12

– Dedicated stage monitor
– 12″ bass loudspeaker
– Compression driver with titanium diaphragm
– Low profile enclosure design for minimum visual impact
– Black paint finish
– Stand mountable

RMS Power Handling 300 W
Peak Power Handling 1200 W
Frequency Range (-10 dB) 63 Hz – 20 kHz
Nominal Impedance 8 ohms
On-axis Sensitivity 1 W / 1 m 95 dB SPL
Rated Peak SPL at 1 m 130 dB
Dispersion 80º x 50º
Enclosure Material Birch Plywood
Color/Finish Black/ISO-flex Paint
Connectors 2 x NL4 speakON
Dimensions (H x W x D) 42 x 64.5 x 31.6 cm
16.6 x 25.4 x 12.5 in
Weight 17.5 kg (38.5 lb)
