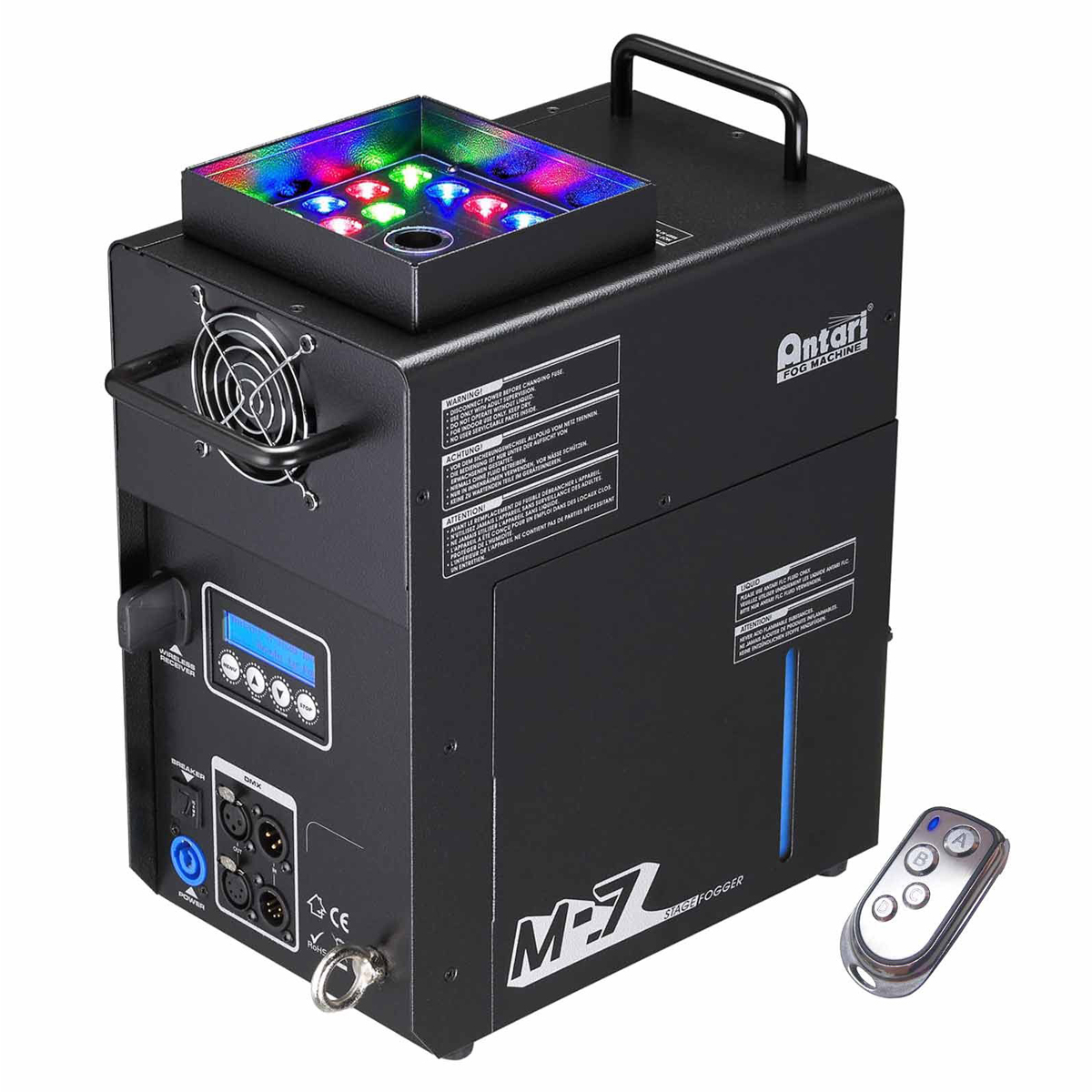

M-7 RGBA – Fog Machine

The new M-7 RGBA is the updated version of the original M-7 LED fog machine. Amber LEDs have been added up to M-7 RGBA which allows its color mixing even more attractive. Plus, optional W-DMX function is available on M-7 RGBA.



Categories: , Brand: Series:

Product Description

The new M-7 RGBA is the updated version of the original M-7 LED fog machine. Amber LEDs have been added up to M-7 RGBA which allows its color mixing even more attractive. Plus, optional W-DMX function is available on M-7 RGBA. Features
  • RGBA LEDs on board
  • Optional Wireless DMX available
  • New structure design for multiple angle rigging
  • Auto sensing frequency
  • Fluid tank compartment for ease of transportation
  • Huge output volume with high pigments LED colors
  • Great fit for Stage purpose
  • Generate fog at any orientation
Specifications – Input voltage : US model : AC 100-120V, 50 / 60Hz 13A – EU model : AC 220-240V, 50 / 60Hz 6.5A – Rated power: 1516W – Light source: 22 x 3W LED (5 Red, 6 Green, 6 Blue, 5 Amber) – Warm-up time: 5 minutes (approx.) – Fluid consumption: 120 ml/min – Fluid tank capacity: 2.4l (0.63gal) – Compatible fluid: Antari FLC Super Light Fog Fluid – Operating time: 20 mins at max. output – Ambient temp. range: 0°C – 40 °C (32 °F-104 °F) – Output: 6 meters height – Control: DMX512, Timer, Manual, Wireless, Master/Slave, Wireless DMX (Optional) – DMX channels: 9 channels – Connection: Neutrik Powercon (Power)/ XLR 3-pin and 5-pin (DMX) – Optional accessories: WTR-90 Wireless DMX – Dimensions:L344 W193 H381 mm (L13.54 W7.60 H15 inch) – Weight:11.5 kg (25.35 lbs)

Download

User Manual
