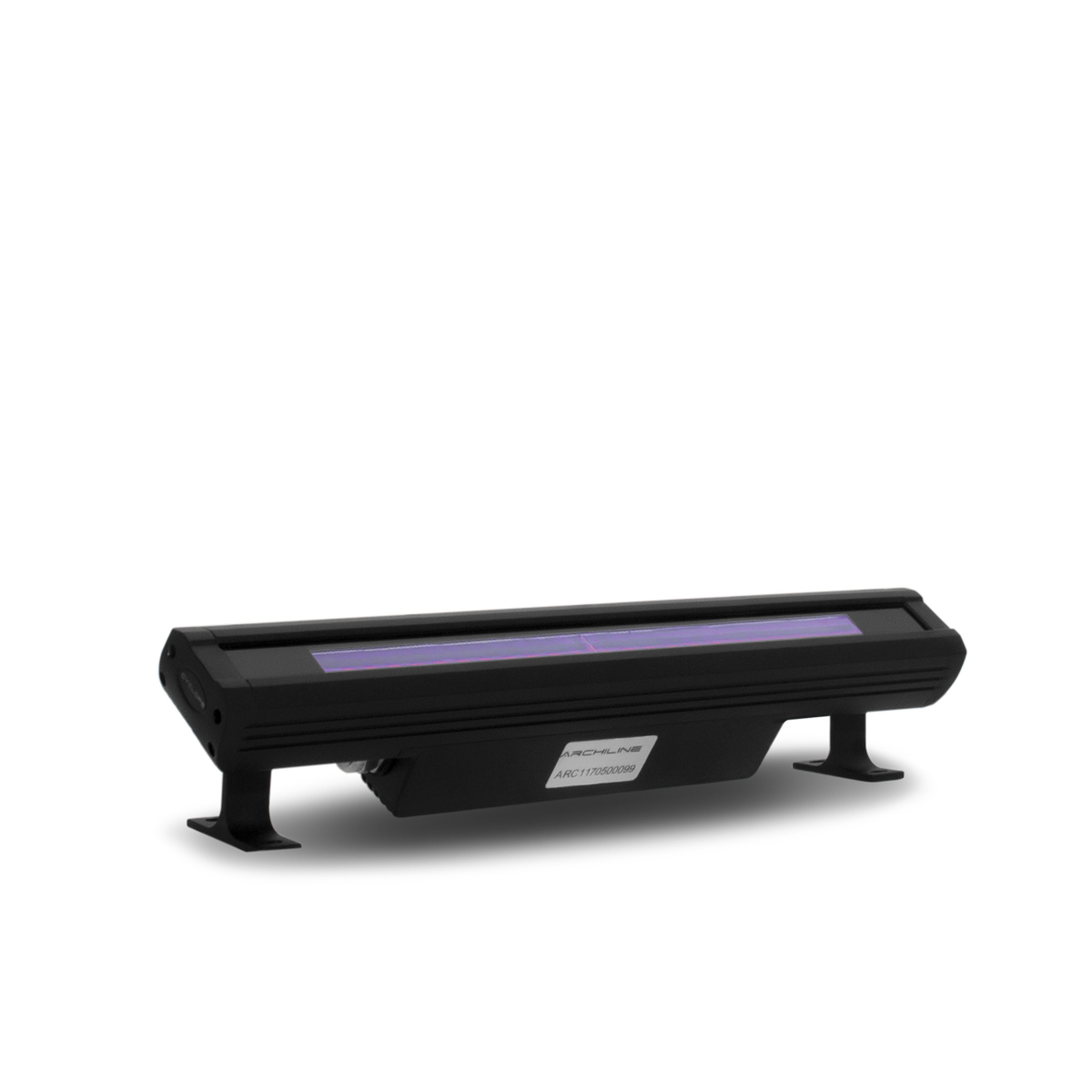

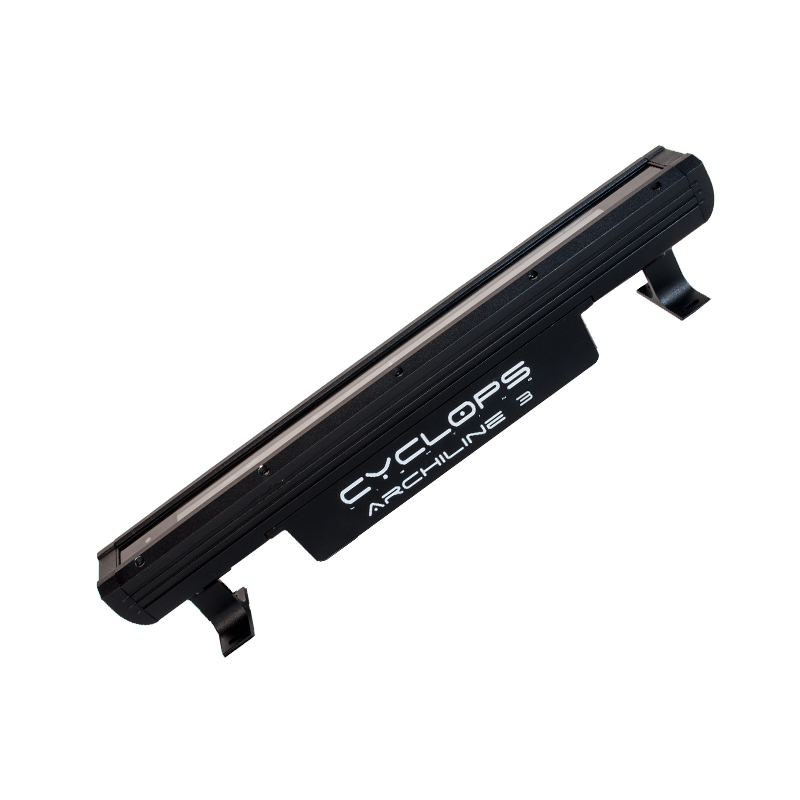

ARCHILINE 3 – Outdoor, UV LED wash bar

Archiline 3 is a 24 x 3 watts outdoor UV LED bar. This IP rated linear bar wash has high brightness output and is de­signed in a compact size to fit any indoor or outdoor architectural application.





Product Description

Archiline 3 is a 24 x 3 watts outdoor UV LED bar. This IP rated linear bar wash has high brightness output and is de­signed in a compact size to fit any indoor or outdoor architectural application. SOURCE
  • Light source: 24 x 3 watts, UV LED
  • Lamp type: SMD LED, 35 x 35mm
  • LED life expectancy: 50,000 Hrs
OPTICAL SYSTEM
  • Beam angle: 60° x 10°
  • Light output: 61 Lux @ 2m
ELECTRICAL
  • Input voltage: 100-250V/50-60Hz
  • Power consumption: 40 watts
 CONNECTIONS
  • Power connections: IP rated screw type In/Out cable connectors
PHYSICAL
  • Dimensions: 395 x 53 x 81mm
  • Net weight: 2.1 Kg
  • Color: Black
  • Housing: Die cast aluminum cover
  • IP rating: 66
  • Operating temperature: -20°C/45°C

Downloads

Data Sheet
