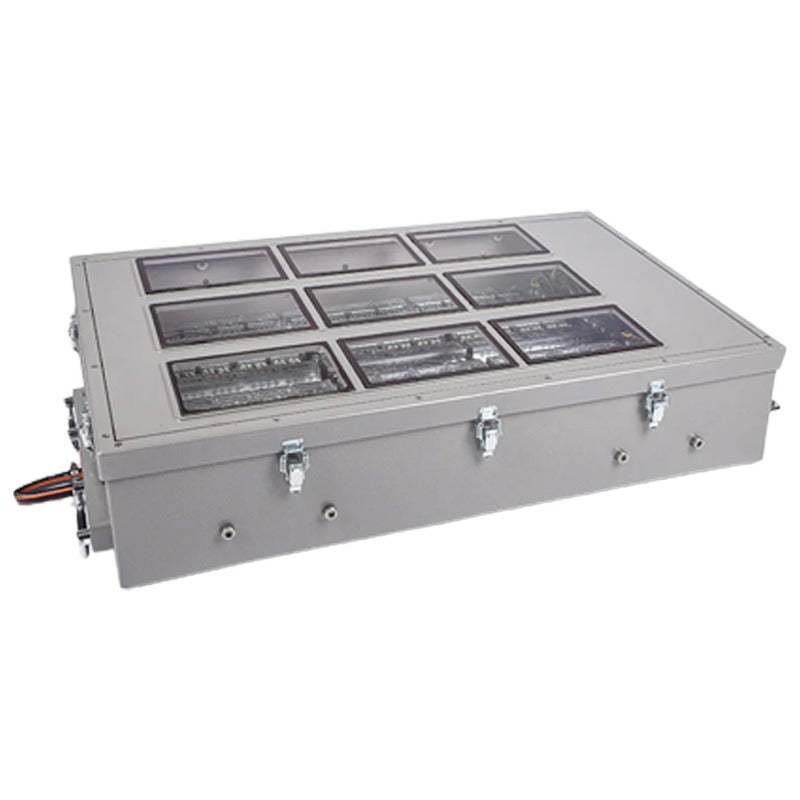

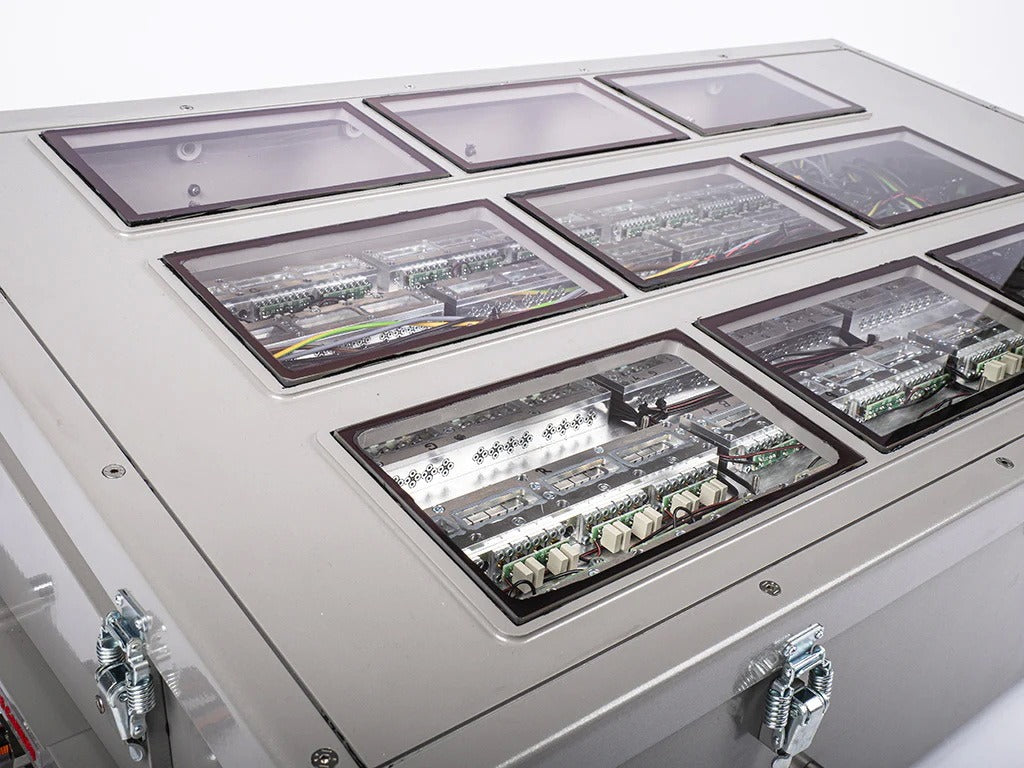

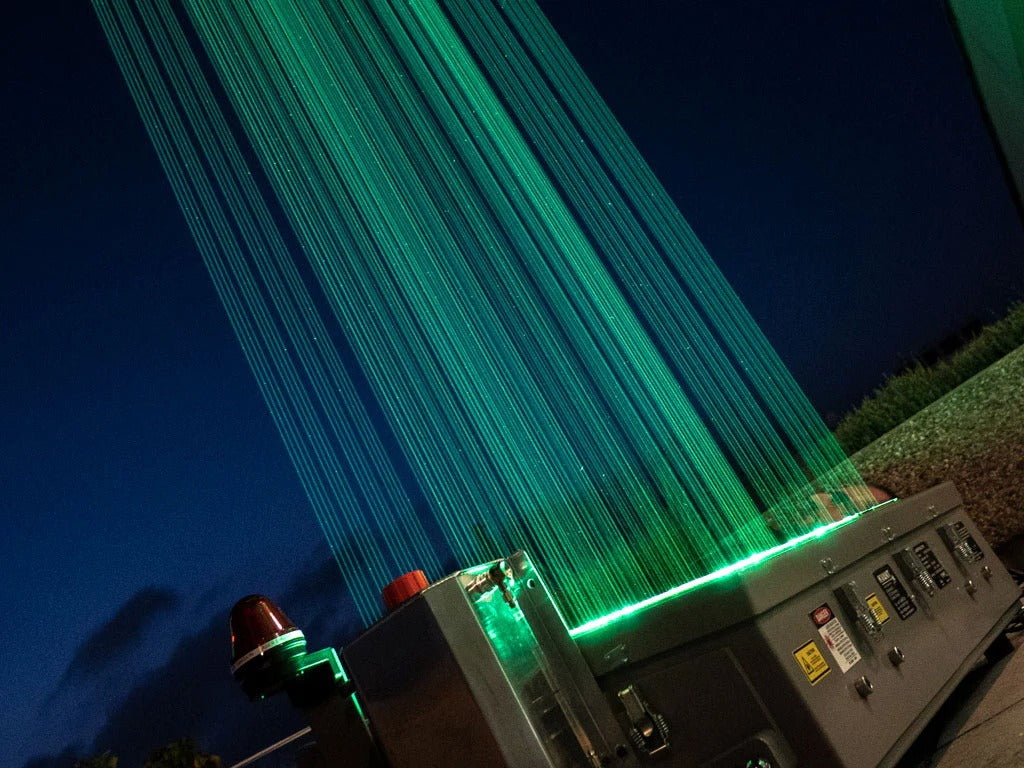

Architect W660B - 660 Watt RGB Single-beam Sky Laser

660 Watt RGB single-beam Sky Laser intended for architectural use and landmark illumination.

Categories: , , Brand:

Product Description

The new Architect range of high-power static-beam lasers (sometimes called sky lasers or landmark lasers) is our reaction to globally increasing demand for super bright lasers. These are great for highlighting significant landmarks, structures and buildings.

The beam coming out of the Architect systems draws attention from many miles away. It adds a great deal of sublimity to already majestic nature-made, or human-made objects, making them even more unique, appealing and desirable.

The Architect Sky Lasers will pinpoint any place sky-high – Making that location distinct from very far away, from every direction and to all.

Specifications:

  • Source | Type: Semiconductor laser diode | Full-colour RGB static-beam laser projector/Sky laser
  • Suitability: Architectural outdoor installations | Landmark and Sky illumination
  • System control: Analog 0-5 Volts or DMX
  • Compliant with: EN 60825-1
  • Ingress Protection Rating: IP67
  • Weight [kg]: ~ 130
  • Size [WxHxD, mm]: 1069 x 363 x 540 [Technical Drawings are in the SUPPORT section of this page]
  • Guaranteed opt. output: 660 Watt
  • R | G | B [W]: 269 | 224 | 168 [White balanced output]
  • Wavelengths [nm, ±5nm]: 637 | 520 | 450
  • Beam size [mm]: 390 x 1350 or custom
  • Luminous efficiency [lm]: 150,000
  • Beam divergence [mrad]: 10 [full angle, averaged value], or custom
  • Cooling: water, ~ 12 l per minute, 10 degrees Celsius
  • Dimming: 0 – 100%
  • Max. power consumption [VA]: <5000
  • Operation temperature [°C]: 5-35

Download

Specification Sheet
