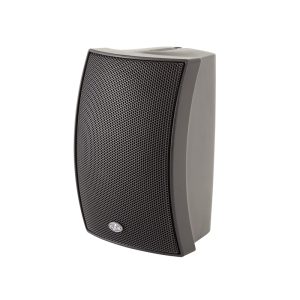

Arco-4T 2-way Passive Point Source

The Arco 4 incorporates a 4” woofer with weather resistant polypropylene cone.

Clear
SKU: N/A Categories: , , Brand: Series:

Product Description

The Arco 4 incorporates a 4” woofer with weather resistant polypropylene cone. High frequency reproduction is handled by a 19 mm neodymium dome tweeter for brilliant highs. An Overload Safety Circuit protects the speakers from damage in case of overpowering. The “T” versions include a multi-tap transformer with 5-10-15 W settings. IP-54 versions for outdoor use are available. – Molded high-impact ABS enclosures – Available in black or white color options – Small size and ready-to-paint exterior – Adjustable ceiling/wall mount – “T” versions equipped with factory-installed multi-tap transformers Technical Data
RMS Power Handling 50 W
Peak Power Handling 200 W
Frequency Range (-10 dB) 72 Hz-22 kHz
On-axis Sensitivity 1 W / 1 m 86 dB SPL
Rated Peak SPL at 1 m 109 dB
Transformer Taps 15/10/5 W (100 V) 7.5/5/2.5 W (70 V)
Dispersion 90ºH x 90ºV
Enclosure Material Paintable ABS Plastic
Color/Finish Black or White
Connectors Spring-Loaded Terminal
Dimensions (H x W x D) 21 x 14 x 14 cm 8.7 x 5.5 x 5.5 in
Weight 1.6 kg (3.5 lb)
