Artec 310.96 - 10MI Low Frequency Loudspeaker

The ARTEC-310.96 is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 90° x 60° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.

SKU: ARTEC-310.96 Categories: , Brand: Series:

Product Description

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

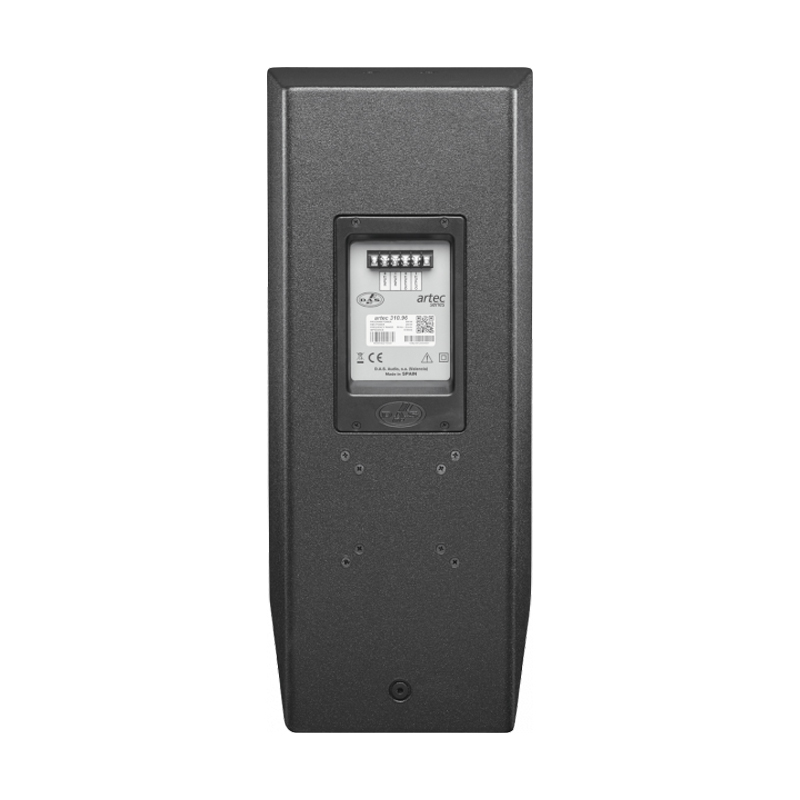

The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount.

Key Features:

  • 1 x 10MI low frequency loudspeaker, 2.5» VCD
  • 1 x M-34 compression driver
  • VESA75/VESA100 standard threaded mounting points
  • Rotatable 90º x 60º horn
  • Vertical or horizontal positioning
  • AXU-A310 U-Bracket included

Applications:

  • A/V systems and corporate events
  • Meeting rooms, classrooms, and exhibit areas
  • Installations in bars and clubs

Technical Specifications:

Performance

  • Frequency Range (-10 dB): 50 Hz – 20 kHz
  • Horizontal Coverage (-6 dB): 90º
  • Vertical Coverage: 60º
  • Nominal Impedance: 8 ohms
  • RMS Power Handling: 250 W
  • Peak Power Handling: 1000 W
  • On-axis Sensitivity 1W/1 m: 96 dB SPL
  • Maximum Peak SPL at 1 m: 126 dB
  • Recommended Amplifier: PA-900
  • Recommended Processor: DSP-226

Connectors

  • Audio Input Connector: Covered Barrier Strip Terminals
  • Audio Output Connector: Covered Barrier Strip Terminals

Enclosure

  • Enclosure Construction: Birch Plywood
  • Enclosure Geometry: Trapezoidal
  • Rigging: M10 Rigging Points
  • Finish: ISO-flex Paint
  • Color: Black
  • Depth: 345 mm (13,6 in)
  • Dimensions ( H x W x D ): 610 x 295 x 345 mm | 24,0 x 11,6 x 13,6 in
  • Net Weight: 15,5 kg ( 34,2 lb )

Components

  • LF Driver: 10MI
  • HF Driver :M-34
  • Horn/Waveguide: BC-916

Shipping

  • Carton Dimensions ( H x W x D ): 705 x 391 x 416 mm | 27,8 x 15,4 x 16,4 in
  • Shipping Weight: 19,5 kg ( 43,0 lb )
