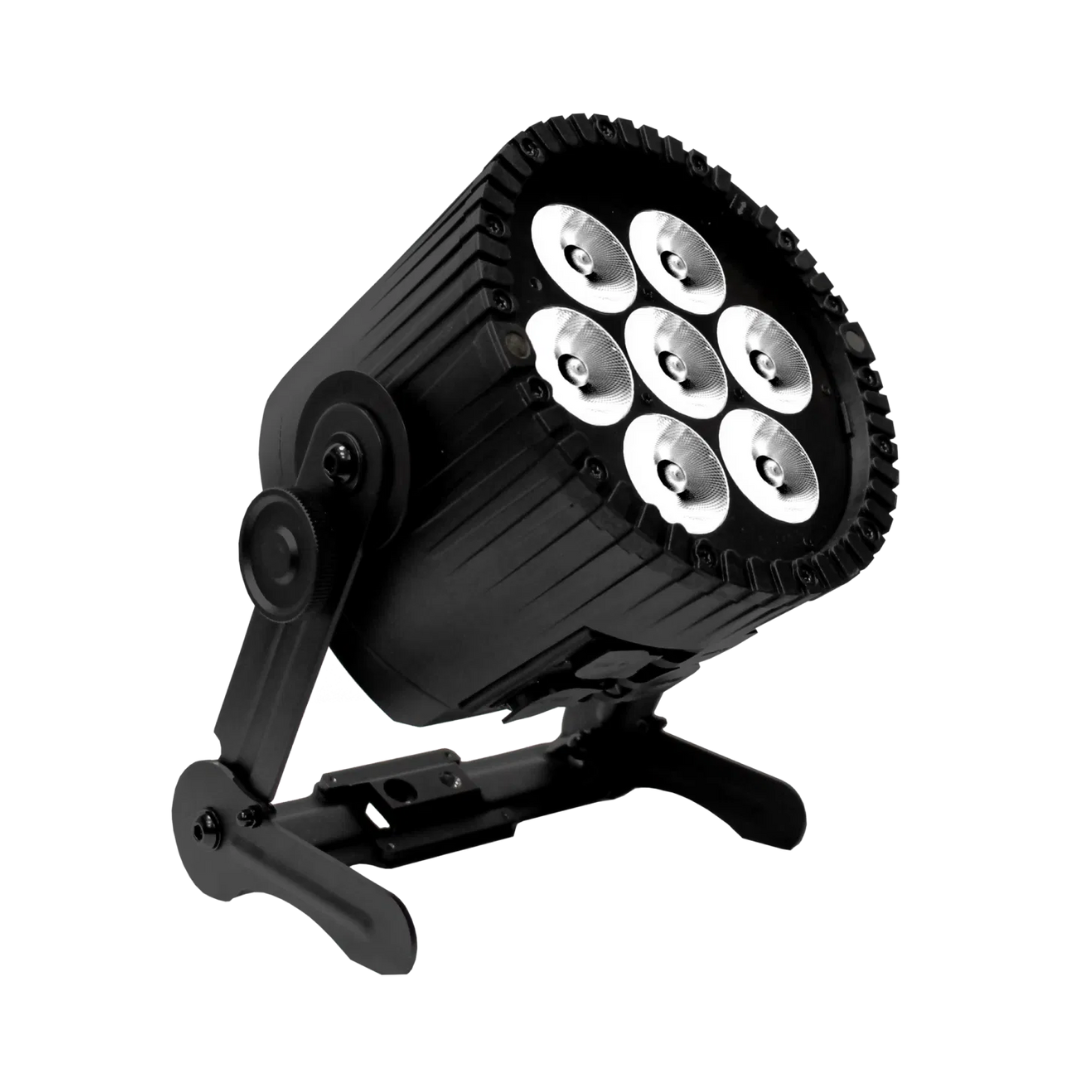

Astera - AX9 PowerPAR

Product Description

Included in the Box

1 x AX9 PowerPAR(AX9)

1 x 30° Flood filter (AX9-FF)

1 x Wallwash filter (AX9-WWF)

Technical Specifications

LED Engine: Titan LED Engine

Colors: RGBMintAmber

Total LED Power: 105 W

LED Power Draw: 70 W

Luminous Flux 2700K: 2 844 Lumens

Luminous Flux 3200K: 3 214 Lumens

Luminous Flux 5500K: 3 047 Lumens

Light Output 2700 K @ 1m: 41 755 Lux

Light Output 3200 K @ 1m: 47 078 Lux

Light Output 5500 K @ 1m: 44 355 Lux

CRI (Ra)/ TLCI 3200- 6500 K: ≥96

Beam Angle: 13°

Field Angle: 25°

Strobe: 0 – 25 Hertz

Pixels: 1

Battery Runtime: up to 20 hours

Battery Lifetime: 70 % after 300 cycles

Charging Time (nominal): 5 hours

AC Input: 100-240 VAC, 50/60 Hz, 2.3 A/115 VAC, 1.1 A/230 VAC, 110 W

AC Connector: PowerCON TRUE1 IN/OUT

Wired DMX: Yes ( via 5-pin XLR)

CRMX Receiver: Built-in

BluetoothBridge BTB: Built-in

Wireless Protocols: CRMX, UHF, Bluetooth, WiFi

Wireless Range: CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds

Infrared Control: Yes

IP Rating: IP65

Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F

Weight: 5.66 kg

Dimensions L x W x D: 175 mm x 222 mm x 256 mm / 6.9″ x 8.7″ x 10.1″

Mounting Options: Airline Track, 4x M6 thread, AX9 Bracket (with 3/8“-16 UNC thread, 1/2“hole)
