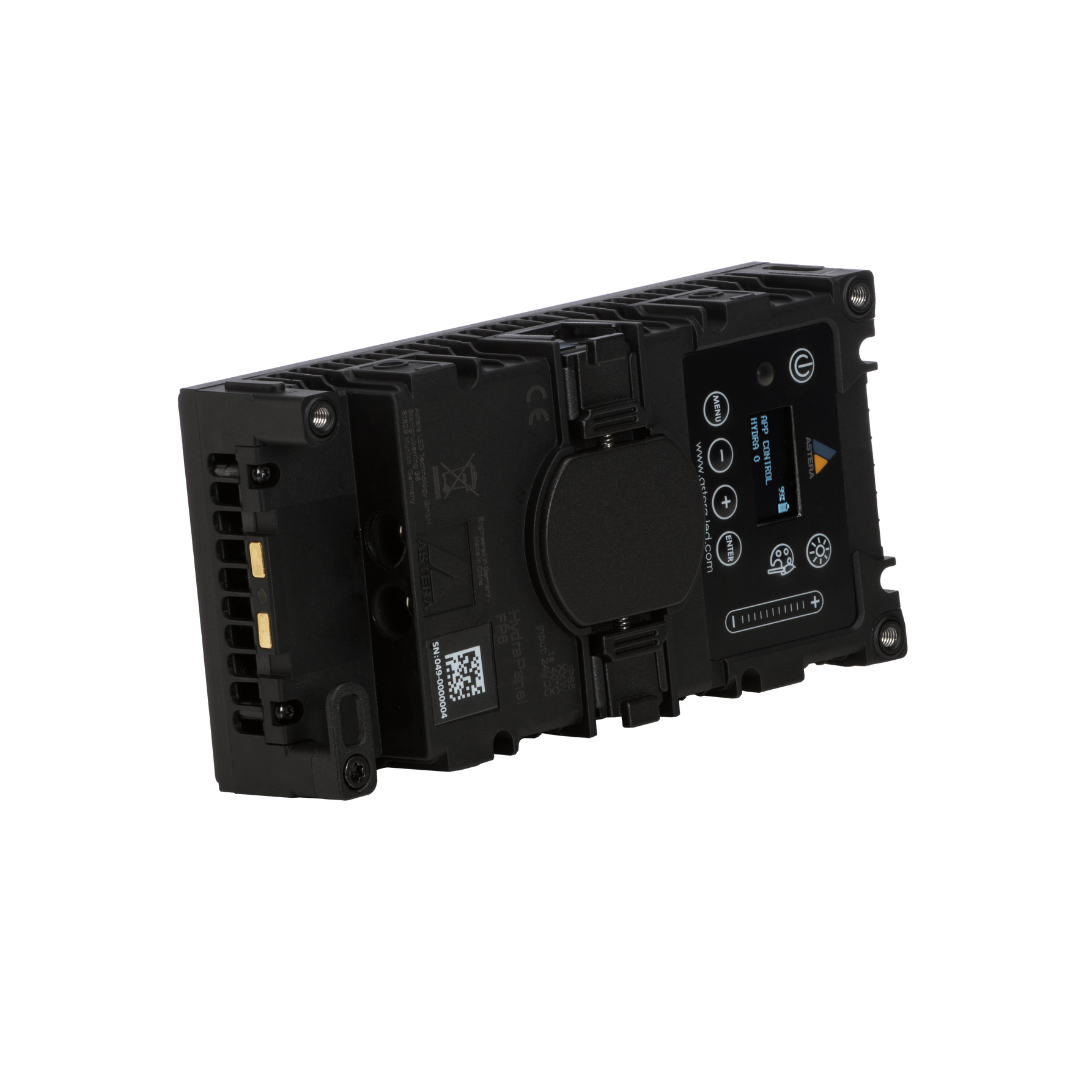

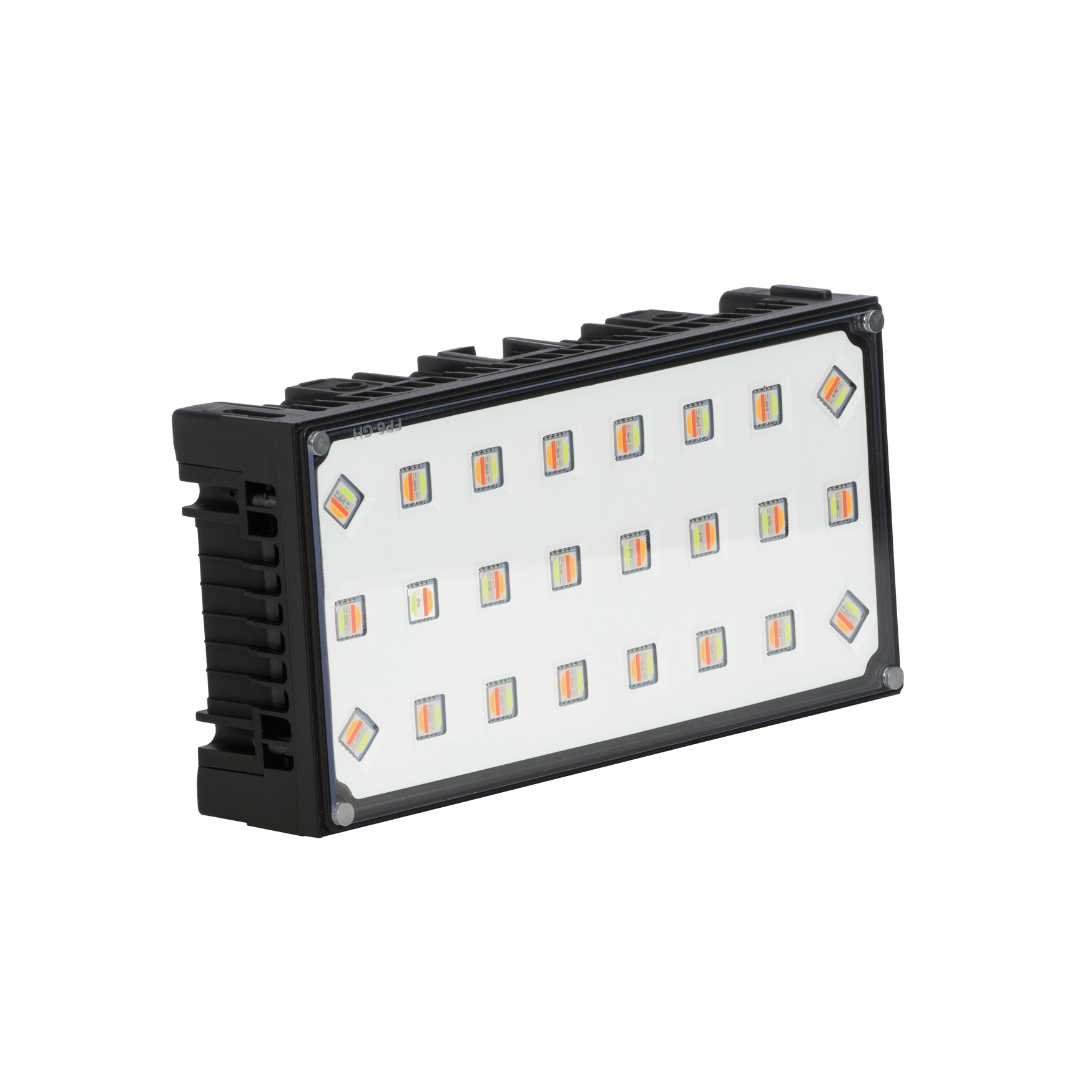

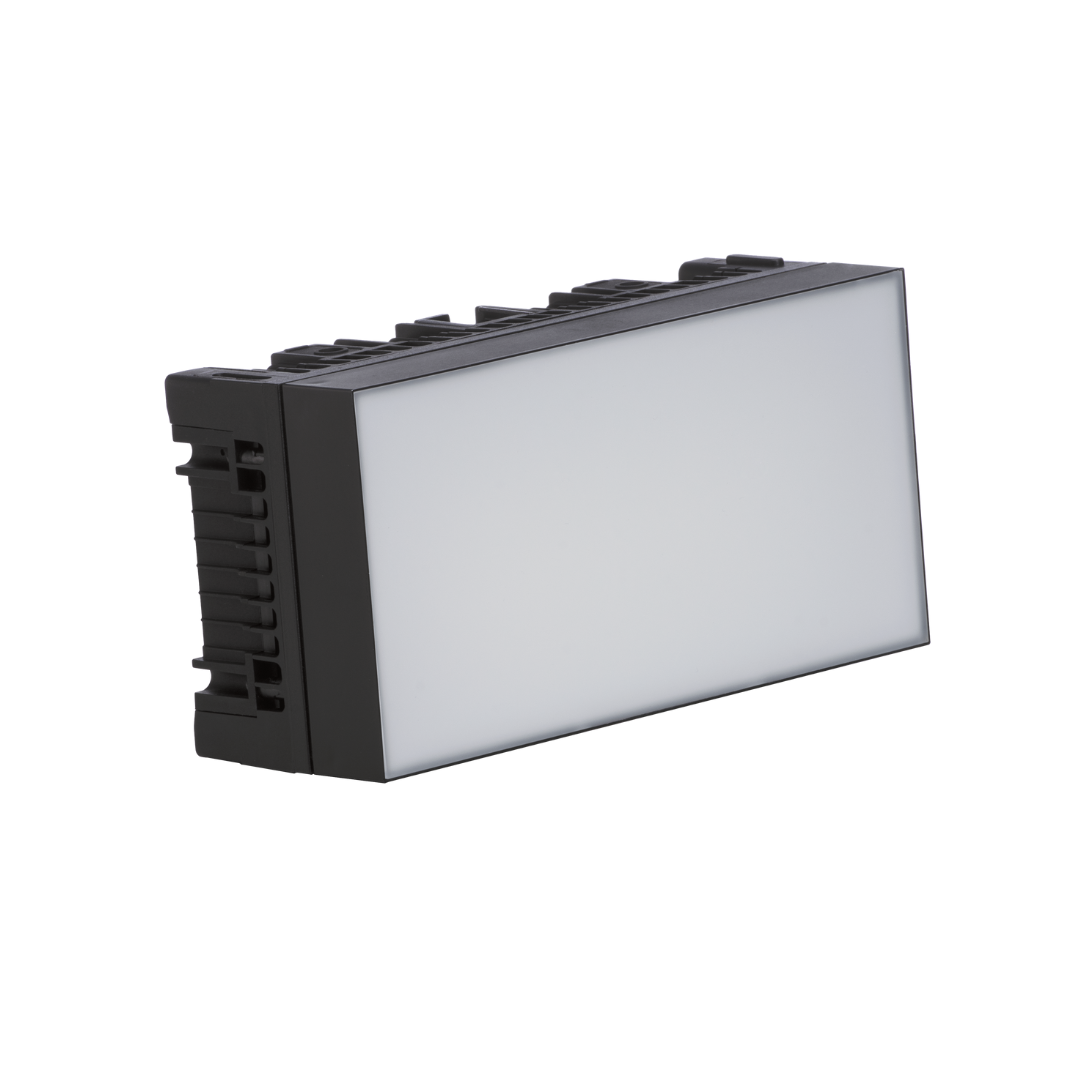

Astera - HydraPanel - Wireless LED Panel with Titan LED Engine, AsteraApp and CRMX receiver

Product Description

Included in the Box

1x HydraPanel (FP6)
1x DiffusorSheet 100 (FP6-DS-100)
1x GelHolder (FP6-GH)
1x SoftFrame 100 (FP6-SF-100)
1x Intensifier 80 (FP6-INT-80)
1x EggCrate 40 (FP6-EGC-40)
1x EggCrate 60 (FP6-EGC-60)
1x FlexBase (FP6-FB)
1x ConnectorPlate (FP6-CP)
1x Babypin (AX-BBP-1/4)
2x Waterproof Protection Cover for PixelBrick & HydraPanel (PB15-PLG)

Technical Specifications

LED Engine: Titan LED Engine

Colors: RGBMintAmber

Total LED Power: 25 W

LED Power Draw: 17 W

Luminous Flux 3200K: 1102 Lumens

Luminous Flux 4000K: 1287 Lumens

Luminous Flux 5500K: 1298 Lumens

Light Output 3200 K @ 1m: 443 Lux

Light Output 4000 K @ 1m: 512 Lux

Light Output 5500 K @ 1m: 516 Lux

CRI (Ra)/ TLCI 3200- 6500 K: ≥96

Beam Angle: 110° x 100°

Field Angle: 150° x 145°

Strobe: 0 – 25 Hertz

Pixels: 6

Battery Runtime: up to 20 hours

Battery Runtime Max Brightness: 1 h 45 m

Battery Lifetime: 70 % after 300 cycles

Charging Time (nominal): 3 hours

DC Input: 24 VDC – 0.85 A

DC Connector: 5.5 mm x 2.1 mm

Wired DMX: Yes (via FP1-PWB / FP3-DTL / PWB-2-86)

CRMX Receiver: Built-in

BluetoothBridge BTB: Built-in

Wireless Protocols: CRMX, UHF, Bluetooth, WiFi

Wireless Range: CRMX/UHF up to 300 m. Bluetooth up to 3 m.

Infrared Control: Yes

ControlSync: Yes

TouchSlider: Yes

IP Rating: IP65 (only with PB15-PLG)

IP Rating wired with PWB-CAB-5/-10/-15/-0.2: IP65

Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F

Weight: 604 g / 1.3 lbs

Dimensions (L x W x D): 166 mm x 85 mm x 43.5 mm / 6.53″ x 3.34″ x 1.71″

Mounting Options: 2 x ColdShoe 3 x M5 thread 1 x SafetyWire Eyelet
