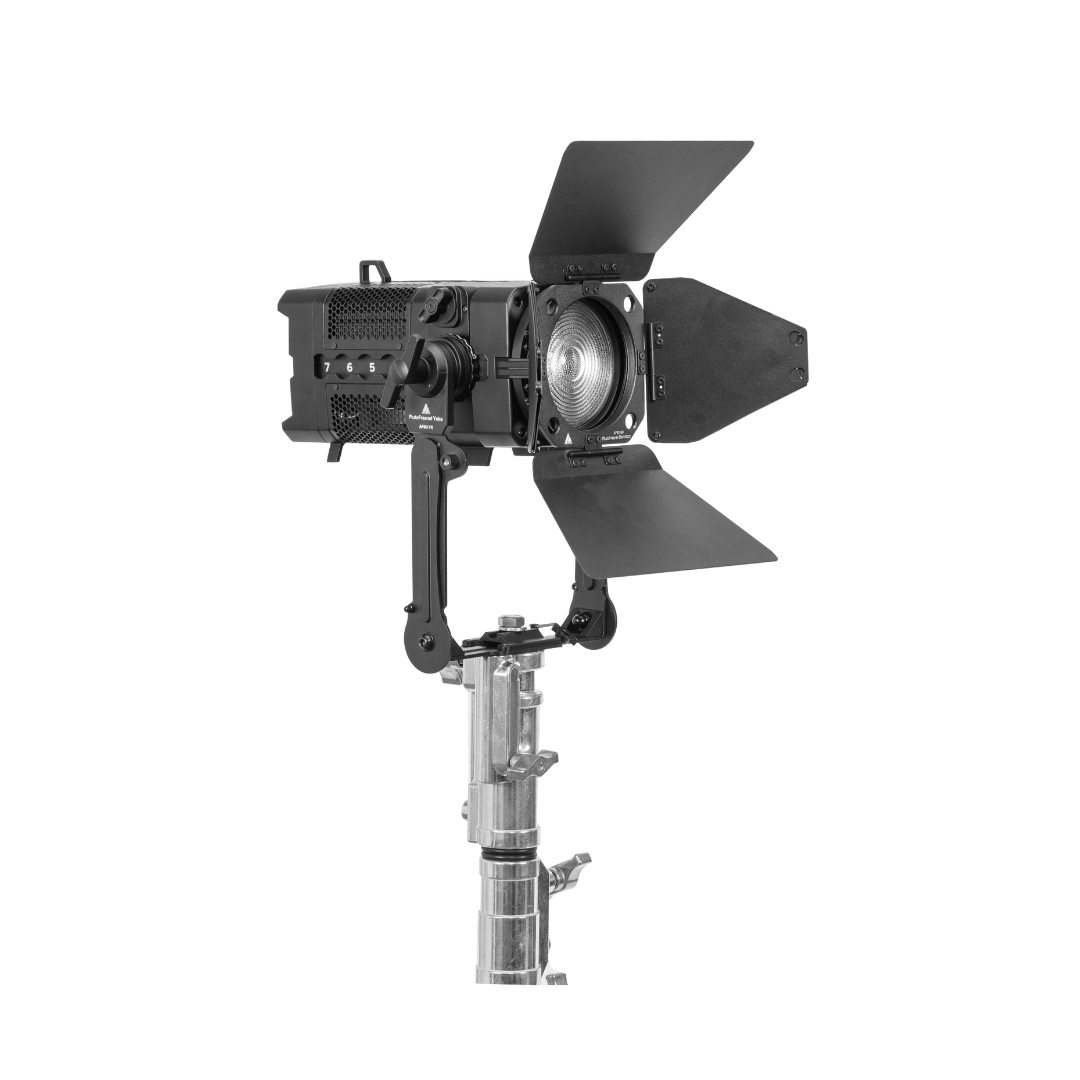

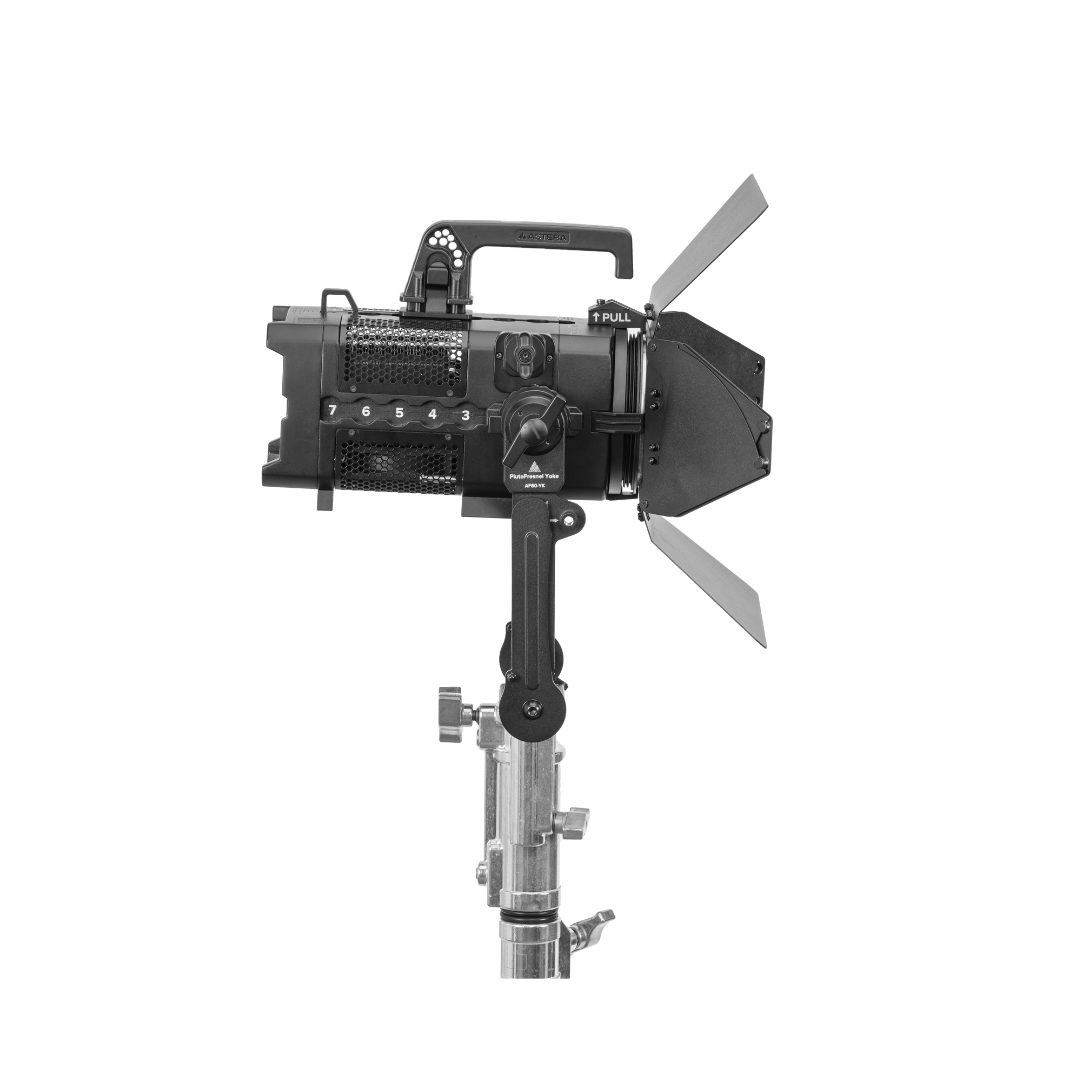

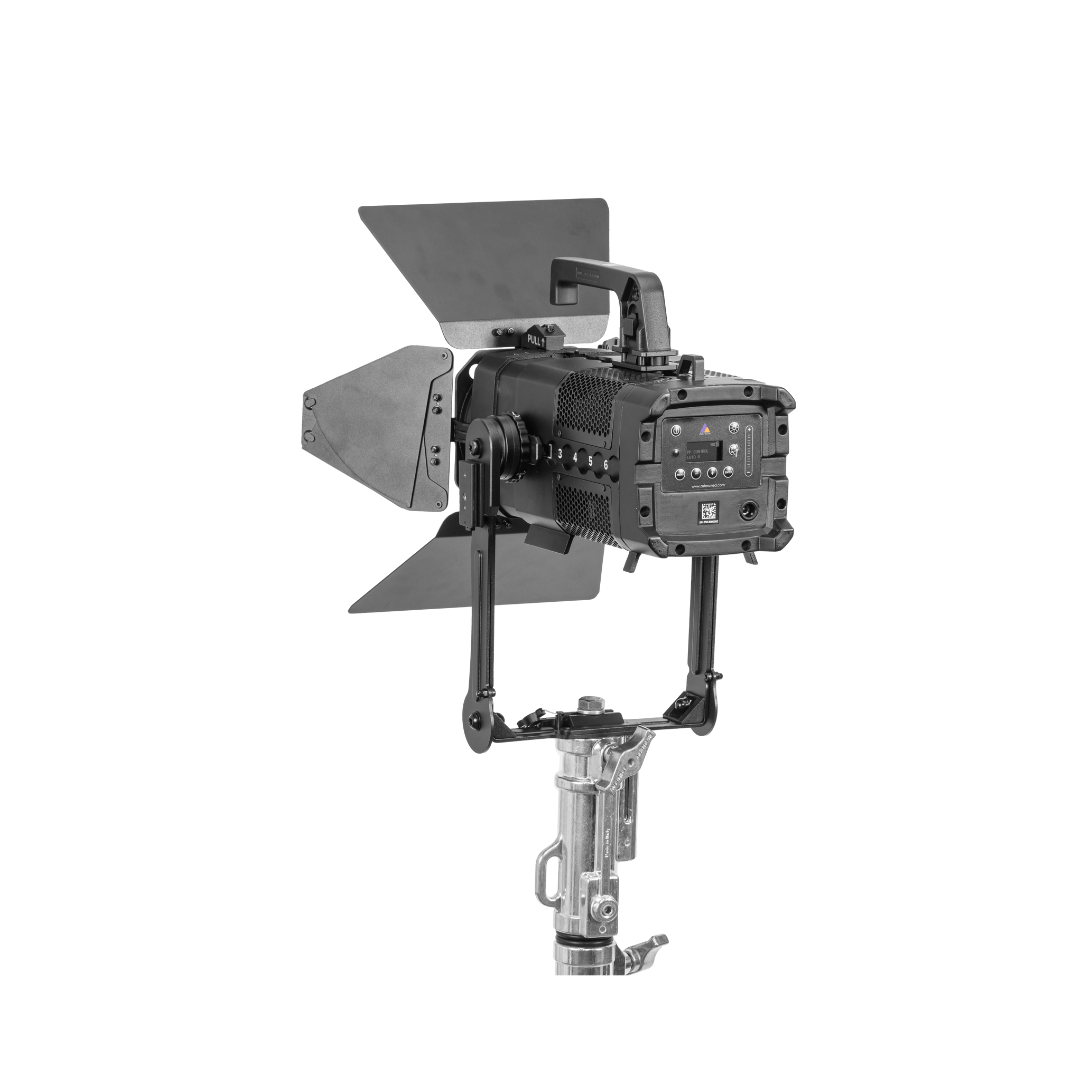

Astera - PlutoFresnel - Battery-powered spotlight with Fresnel Lens.

Product Description

Included in the Box

1x PlutoFresnel (AF80)
1x Fresnel Lens for PlutoFresnel (AF80-FL)
1x Barndoors for PlutoFresnel (AF80-BD)
1x Yoke for PlutoFresnel (AF80-YK)
2x YokeBase for PlutoFresnel (AF80-YKB)
1x TVMP Adapter (AX-TVMP)
1x TrackHandle (AX-THD)

Technical Specifications

LED Engine: Titan LED Engine

Colors: RGBMintAmber

Total LED Power: 105 W

LED Power Draw: 80 W

Luminous Flux 3200K: 2232 Lumens

Luminous Flux 4000K: 2642 Lumens

Luminous Flux 5500K: 2847 Lumens

Light Output 3200 K 15° @ 1m: 38167Lux

Light Output 3200 K 35° @ 1m: 10028 Lux

Light Output 3200 K 60° @ 1m: 2872 Lux

CRI (Ra)/ TLCI 3200- 6500 K: ≥96

Beam Angle: 15° x 60°

Strobe: 0 – 25 Hertz

Pixels: 1

Battery Runtime: up to 20 hours

Battery Runtime Max Brightness: 3 h

Battery Lifetime: 80 % after 400 cycles

Charging Time (nominal): 3.5 hours

DC Input: 24 VDC, 80W

DC Connector: 5.5 mm x 2.1 mm

Power Consumption (max.): 80W

Wired DMX: Yes (via FP3-DTL / PWB-2-86)

CRMX Receiver: Built-in

BluetoothBridge BTB: Built-in

Wireless Protocols: CRMX, UHF, Bluetooth, WiFi

Wireless Range: CRMX/UHF up to 100 m. Bluetooth up to 3 m.

RDM Support: Wireless

Infrared Control: Yes

ControlSync: Yes

TouchSlider: Yes

IP Rating: IP55 (only with PB15-PLG)

IP Rating wired with PWB-CAB-0.2/-1.5/-5/-10/-15

Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F

Weight: 4.637 / 10.22 lbs

Weight (with AF80-FL, AF80-BD, AF80-YK, 2x AF80-YKB, AF80-THD): 6.493 kg / 14.31 lbs

Dimensions (L x W x D): 281.9 mm x 153.5 mm x 161.8 mm / 11.1″ x 6.0″ x 6.4″

Dimensions L x W x H (with AF80-YK, 2x AF80-YKB): 281.9 mm x 244.7 mm x 323 mm / 11.1″ x 9.6″ x 12.7″

Mounting Options: 4 x AirlineTracks, 1/2″ hole, 3/8″ thread, 1 x BrickMount (PB15-BMO)
