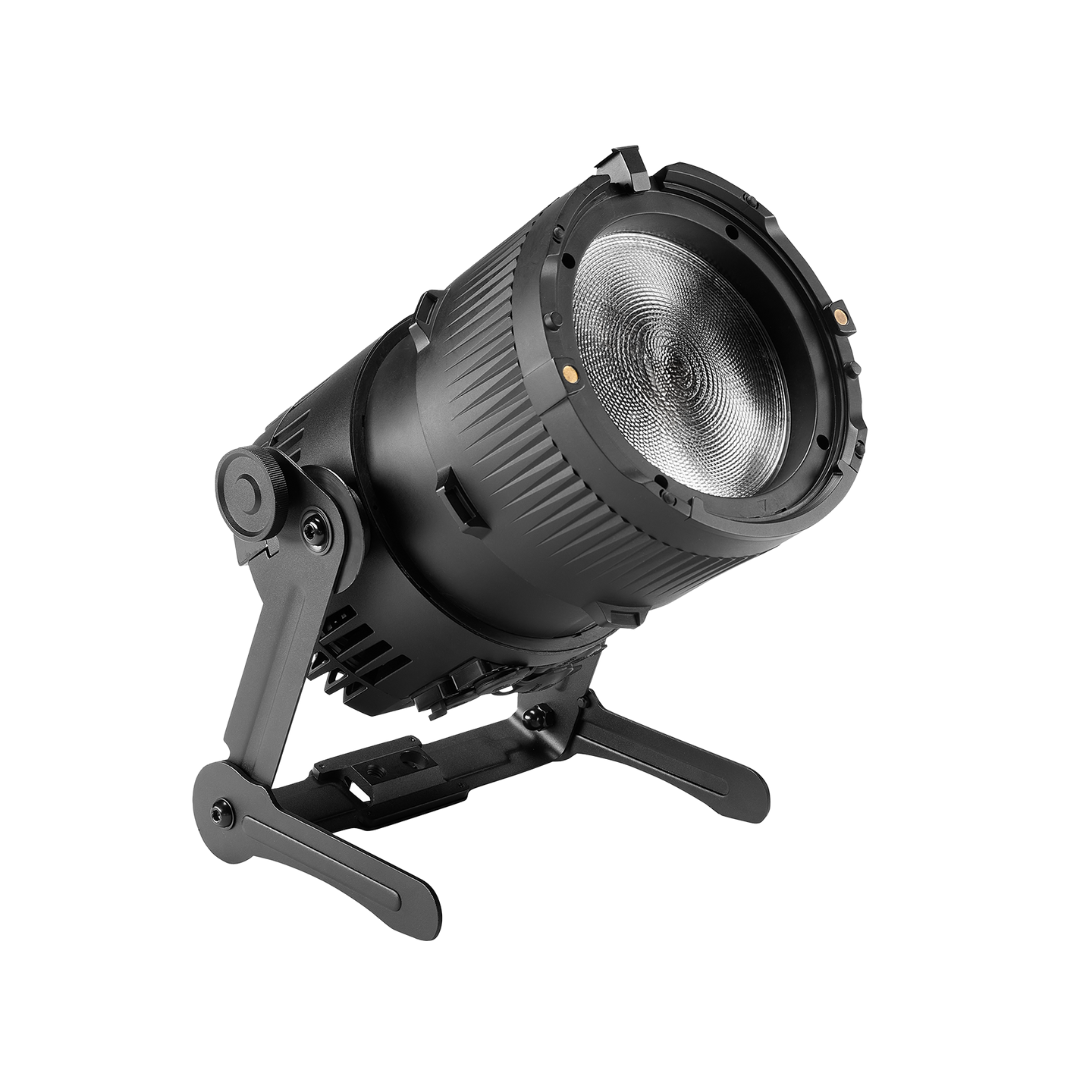

Astera - QuikPunch

Product Description

What’s in the Box

• 1 x QuikPunch
• 1 x QuikPunch Yoke

Technical Specifications

• LED Engine: Titan LED Engine
• Colors: RGBMintAmber
• Output Gain: Yes
• LED Power Draw: 75 W
• CRI (Ra) / TLCI 3200 – 6500 K*: ≥96
• Strobe: 0 – 25 Hertz
• Battery Runtime: up to 20 hours
• Battery Runtime (max. Brightness): 4 h 30 m
• Battery Lifetime: 70 % after 500 cycles
• Charging Time (nominal): 5 hours 15 min
• AC Input: “100 – 240 VAC, 50/60 Hertz, 115 VAC – 2 A / 230 VAC – 1 A”
• AC Connector: PowerCON TRUE1 IN/OUT
• Power Consumption (max.): 100 W
• Wired DMX: Yes
• CRMX Receiver: Built-in
• BluetoothBridge BTB: Built-in
• Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
• Wireless Range: “CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds”
• RDM Suppor: No / Wireless and / or wired
• Infrared Control: Yes
• PrepBox compatible: Yes
• IP Rating unwired: IP65
• IP Rating wired: IP65
• Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
• Weight: 6450 g / 14.22 lbs
• Dimensions (L x W x D): 236.2 mm x 195.8 mm x 295.8 mm / 9.3″ x 7.71″ x 11.65″

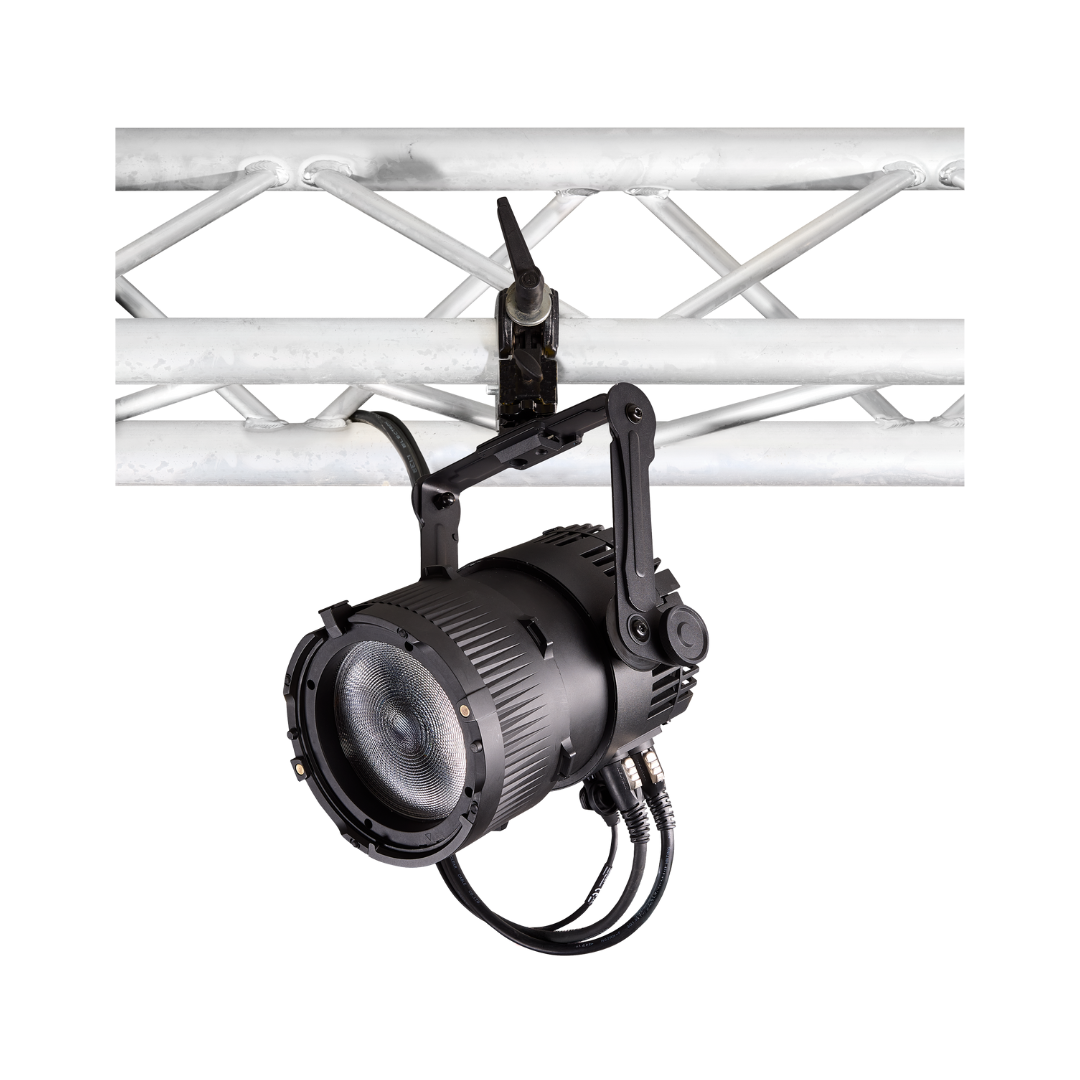

• Mounting Options: AirlineTrack, 3/8″ – 16 UNC thread, Yoke (with 3/8″ – 16 UNC thread, 1/2″ hole)
