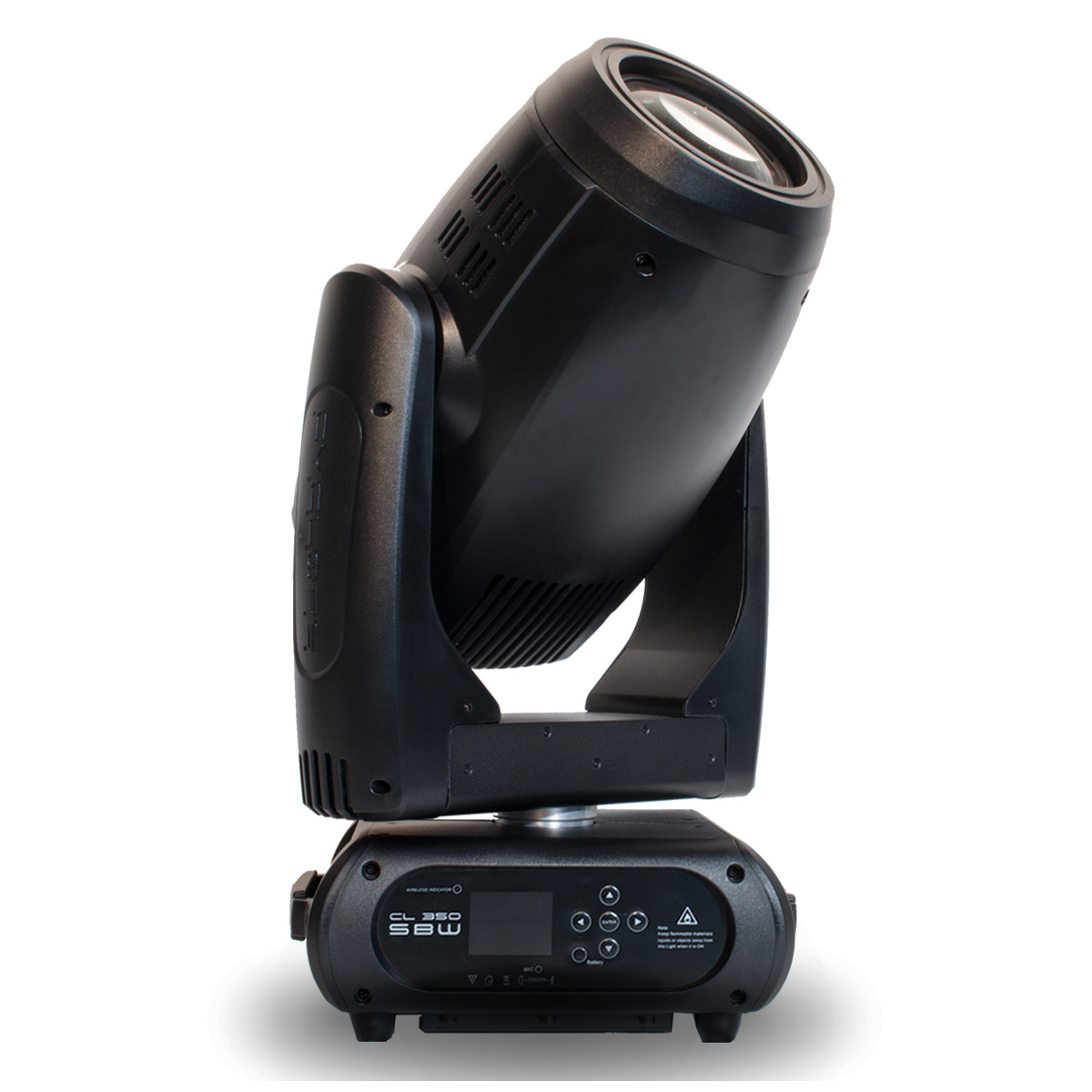

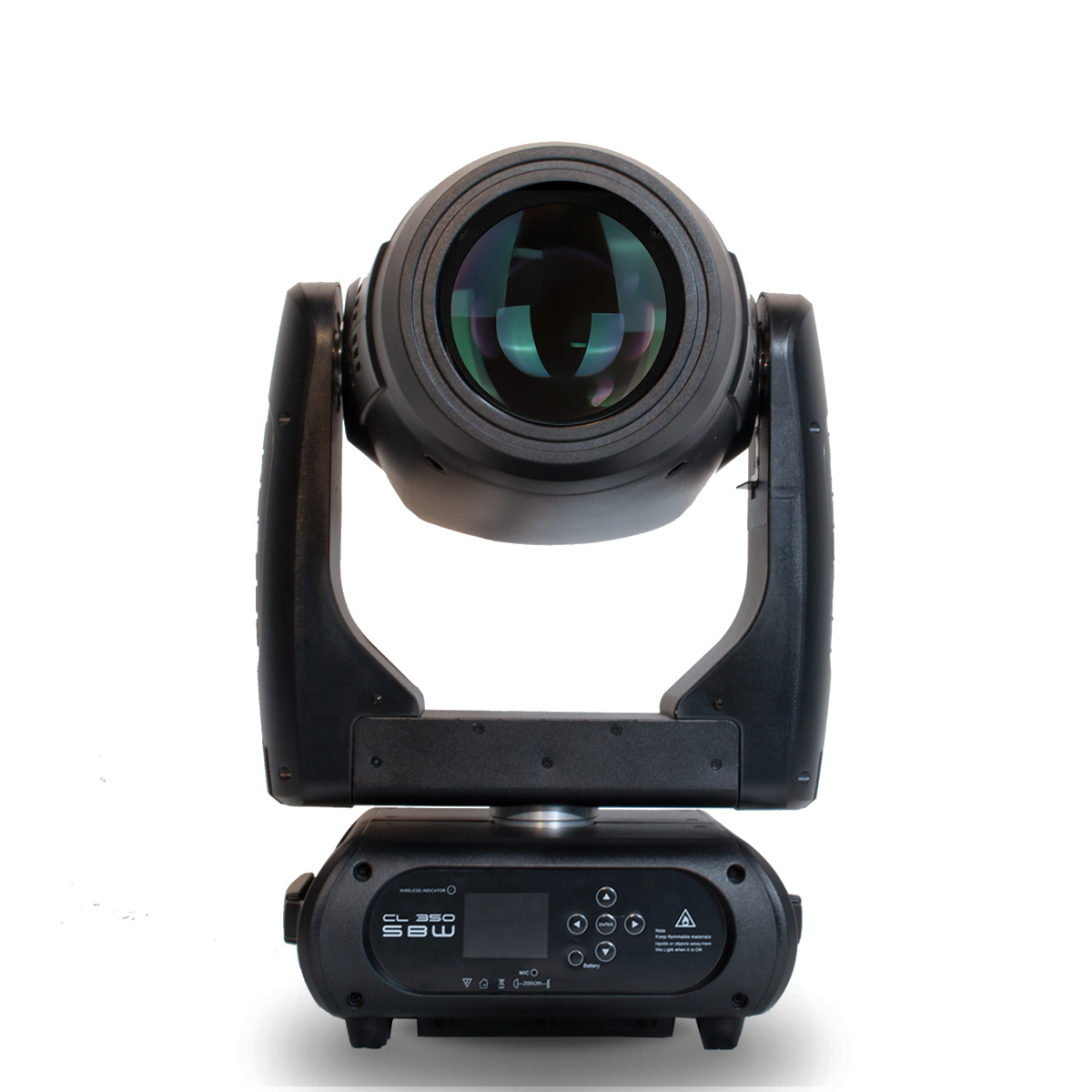

CL 350 SBW- Hybrid Moving Head

The CL 350 SBW is a hybrid beam/spot/wash 3 in 1 model with super-short-arc lamp for the best brightness.
The multi functions of this hybrid moving head make it suitable for all kinds of applications. Functions include color wheel, rotating gobo wheel plus one more static gobo wheel, effect wheel with 6f linear+8f circular prism and frost, focus, fast zoom from 2 to 23 degree.

Product Description

The CL 350 SBW is a hybrid beam/spot/wash 3 in 1 model with super-short-arc lamp for the best brightness. The multi functions make this model suitable for all kinds of applications. Functions include color wheel, rotating gobo wheel plus one more static gobo wheel, effect wheel with 6f linear+8f circular prism and frost, focus, fast zoom from 2 to 23 degree.

Product Features

Source

Optical System

  • Beam angle: 2°-10° beam,5.5°-23° spot
  • X/Y
    – Pan: 630° (4.0 sec) or 540°(3.58 sec), Tilt: 265° (2.8 sec)
    -16-bit resolution
    – Auto repositioning Colors
    – 13+open, interchangeable, indexable and bidirectional rainbow effect
    – Color bounce
  • Gobos
    – Rotating gobo wheel: 9 (glass)+open
    – Static gobo wheel, 14+open
    – Real indexable and gobo shaking
    – Distinctive gobo animation effect
  • Features
    -DMX channels: 20/24/14/16
    -Color wheel: 13+1 colors
    – Rotating gobo wheel: 9+1 gobos
    – Static gobo wheel: 14+1 gobos
    – Zoom: 2,10. beam, 5.5.-23. spot
    – Motorized focus
    – Full range 0-100% dimmer
    – Various strobe
    – Frost
    – 6-linear+8facets prism
    – RDM function to change DMX address, display flip, X/Y Reverse and so on
    – RDM read voltage, current, power consumption of lamp
    – Software upgrade via DMX
    – Hibernation when lost DMX for preset time
    – Indicate temperature into of base, arm and lamp
    – Fan speed auto change according to temperature

Display

  • 2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu
  • Auto look
  • Rip
  • Back-up communicating IC Power
  • Max power consumption: 430W
  • Powercon in and out
  • Power supply: Electronic auto-ranging
  • Input voltage range: 100-240V, 50-60Hz

Dimension and Weight

  • Fixture: 369X402X623MM
  • Packing: 720X430X350MM
  • Net Weight: 17KG
  • Gross Weight: 19KG

Rigging

  • Mounting points: 4 1/4-turn locks
  • 2 x Omega brackets with 1/4-turn quick locks
  • Safety rope
