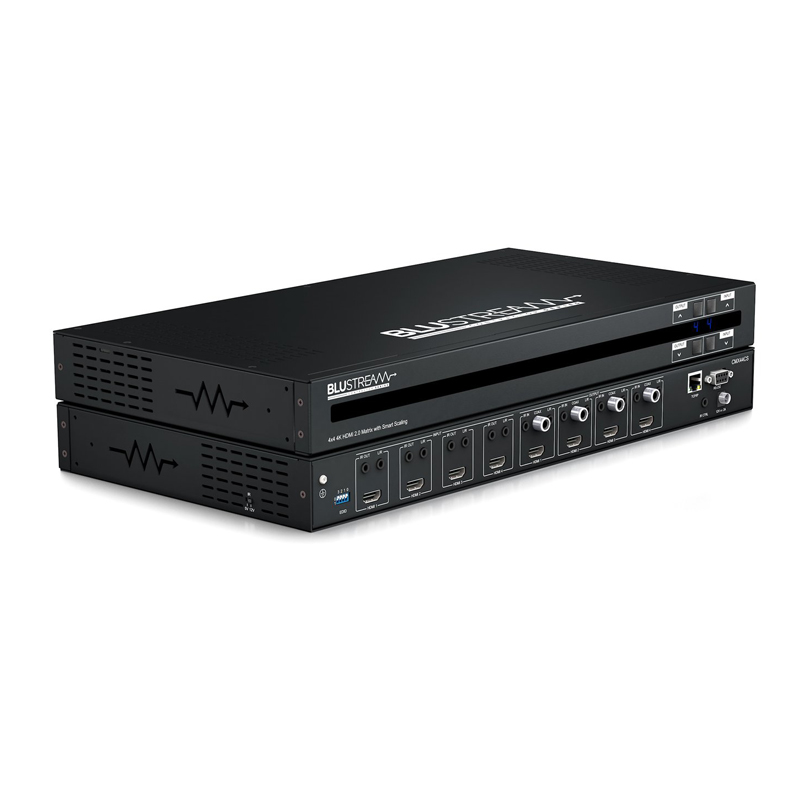

CMX44CS - 4x4 4K HDMI 2.0 Matrix

Product Description

Key Features:

• Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
• Supports HDMI2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
• Control via front panel, IR, RS-232, TCP/IP and Web GUI
• IR routing
• Supplied with Blustream 5V IR receivers and emitters
• 3rd Party drivers available for all major control brands
• Advanced EDID management
• HDCP2.2 compliant
• 1U Design for 19″ rack mount integration – Mounting kit included

Specifications:

• Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
• Video Output Connectors: 4x HDMI Type A, 19-pin, female, locking
• Audio Output Connectors: 4x RCA (S/PDIF), 4x Analogue audio L/R (3.5mm stereo Jack)
• Audio Input Connectors: 4x Analogue audio L/R (3.5mm stereo Jack)
• RS-232 serial port: DB-9, female
• IR Input ports: 5x 3.5mm stereo jack
• IR Output ports: 4x 3.5mm mono jack
• Mounting kit included
• Casing Dimensions (WxDxH):  440mm x 225mm x 44mm
• Dimensions Including Connections (W x D x H): 440mm x 231mm x 50mm
• Shipping Weight: 2.3kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: 12V/2A DC
• 19″ Rack mounting kit included

Box Contents:

• 1x CMX44CS
• 1x 12V/2A DC power supply
• 1x Remote control
• 4x IR emitter
• 5x IR receiver
• 1x Rack mounting kit
• 1x Quick Reference Guide
