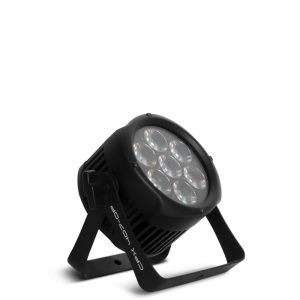

CPX 407OP – Outdoor RGBW Quad LED Par

CPX 407OP is a 7 x 15 watts, outdoor 4 colors RGBW LED Par. It is a small size and large in output LED Par, perfect for any outdoor installation or event.

SKU: CPX407OP Categories: , , Brand: Series:

Product Description

CPX 407OP is a 7 x 15 watts, outdoor 4 colors RGBW LED Par. It is a small size and large in output LED Par, perfect for any outdoor installation or event.

SOURCE

  • Light source: 7 x 15 watts RGBW quad LEDs
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 10°
  • 40° with included diffuser filter

DYNAMIC EFFECTS

  • Dimmer: 4 selectable dimming curves
  • Color mixing: RGBW
  • Strobe and fade effect
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, Master-Slave, Auto Run
  • Display: TFT displayer with 4 buttons
  • Control channels: 3, 4, 5, 6, 8, 11 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 110 watts

CONNECTIONS

  • DMX connections: IP DMX In/Out cables with 3 pin screw lock connectors
  • Power connections: IP Power In/Out cable, 3 pin screw lock connectors

PHYSICAL

  • Dimensions: 219 x 113 x 225mm
  • Net weight: 3.4 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -30°C/45°C

Download

Data Sheet
