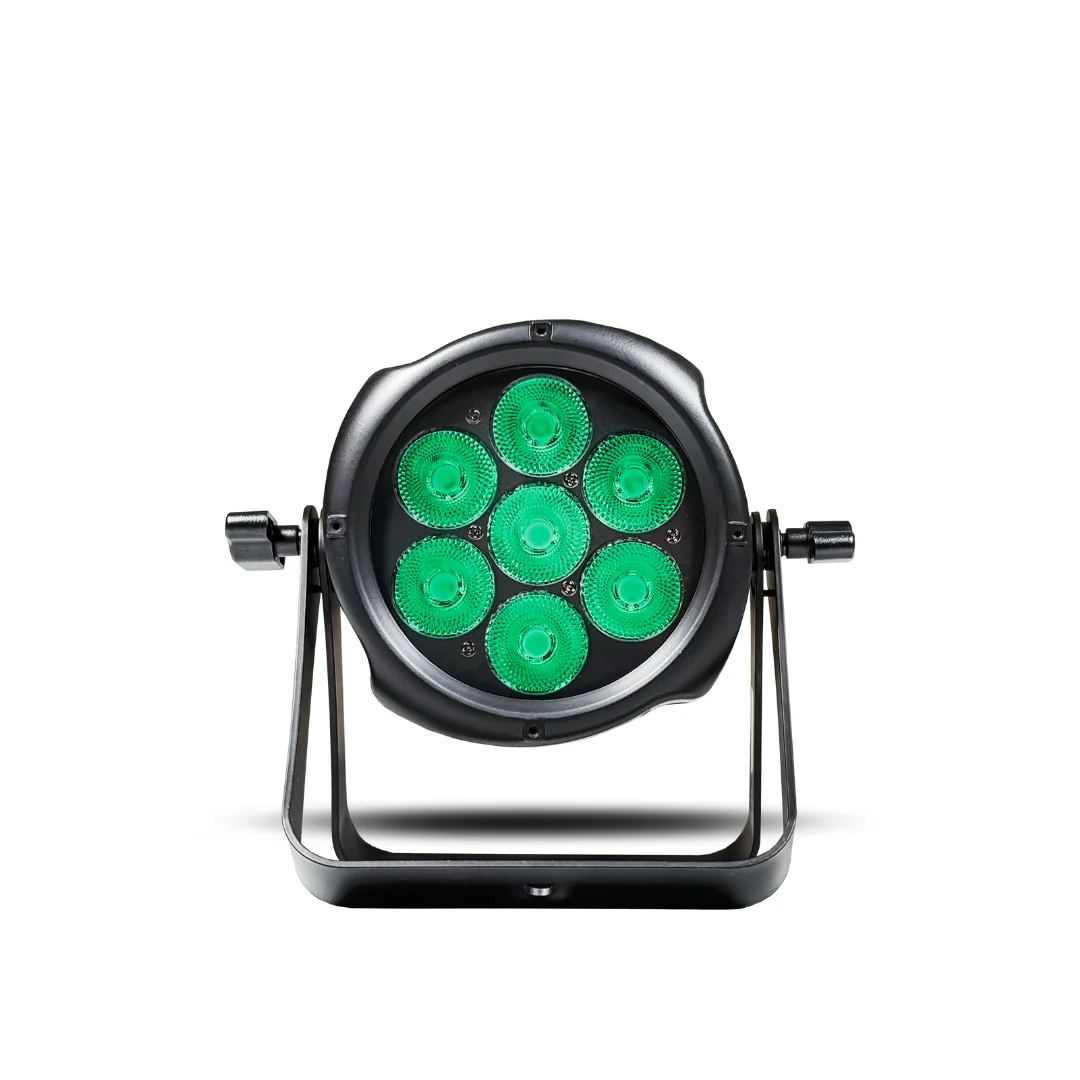

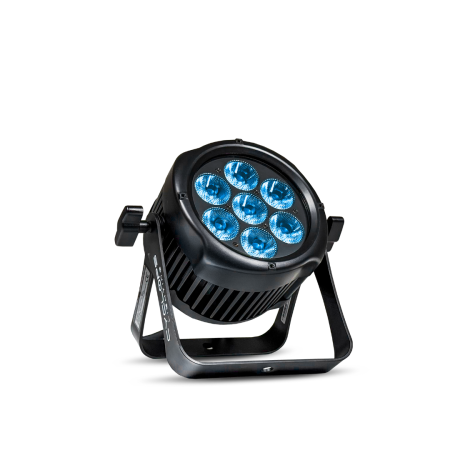

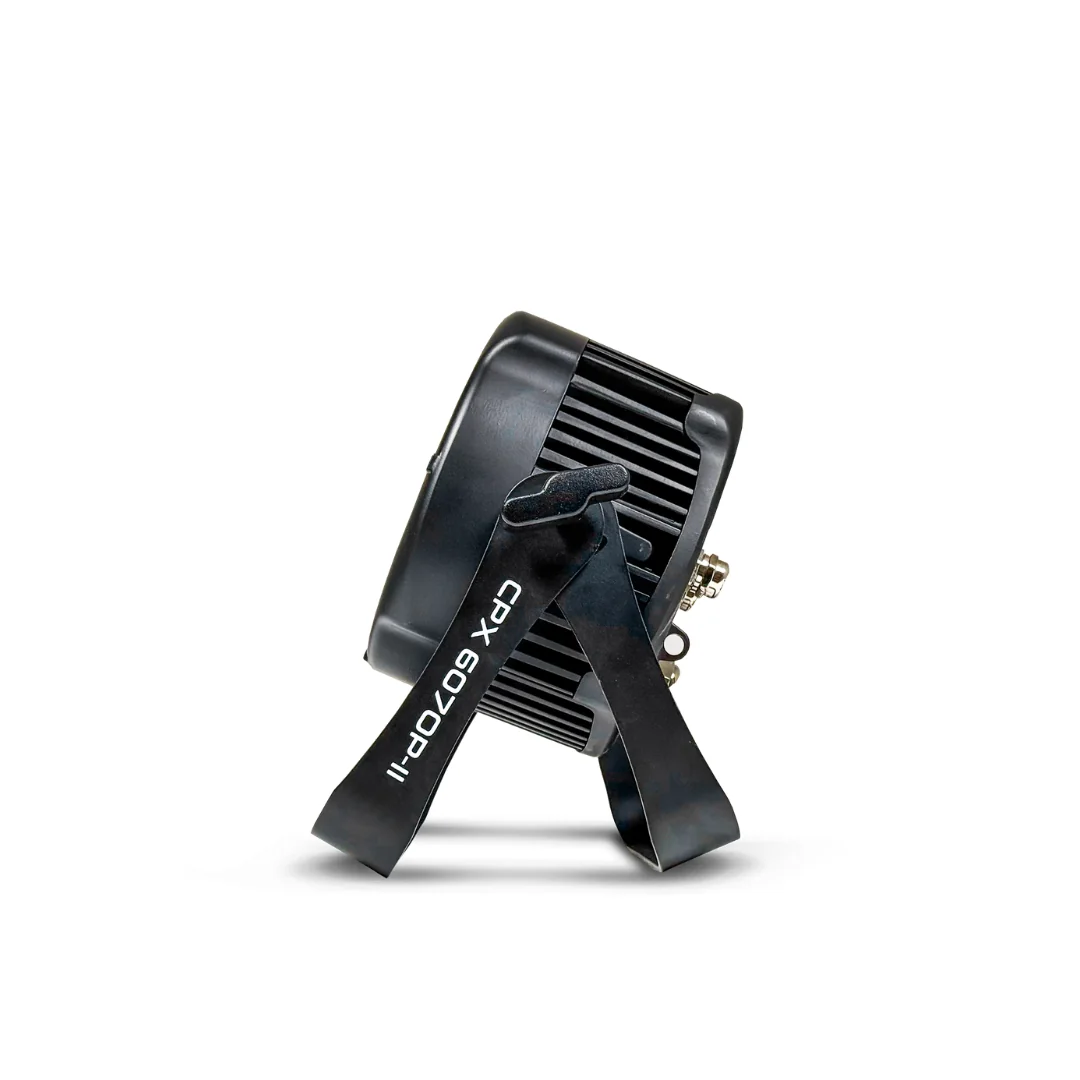

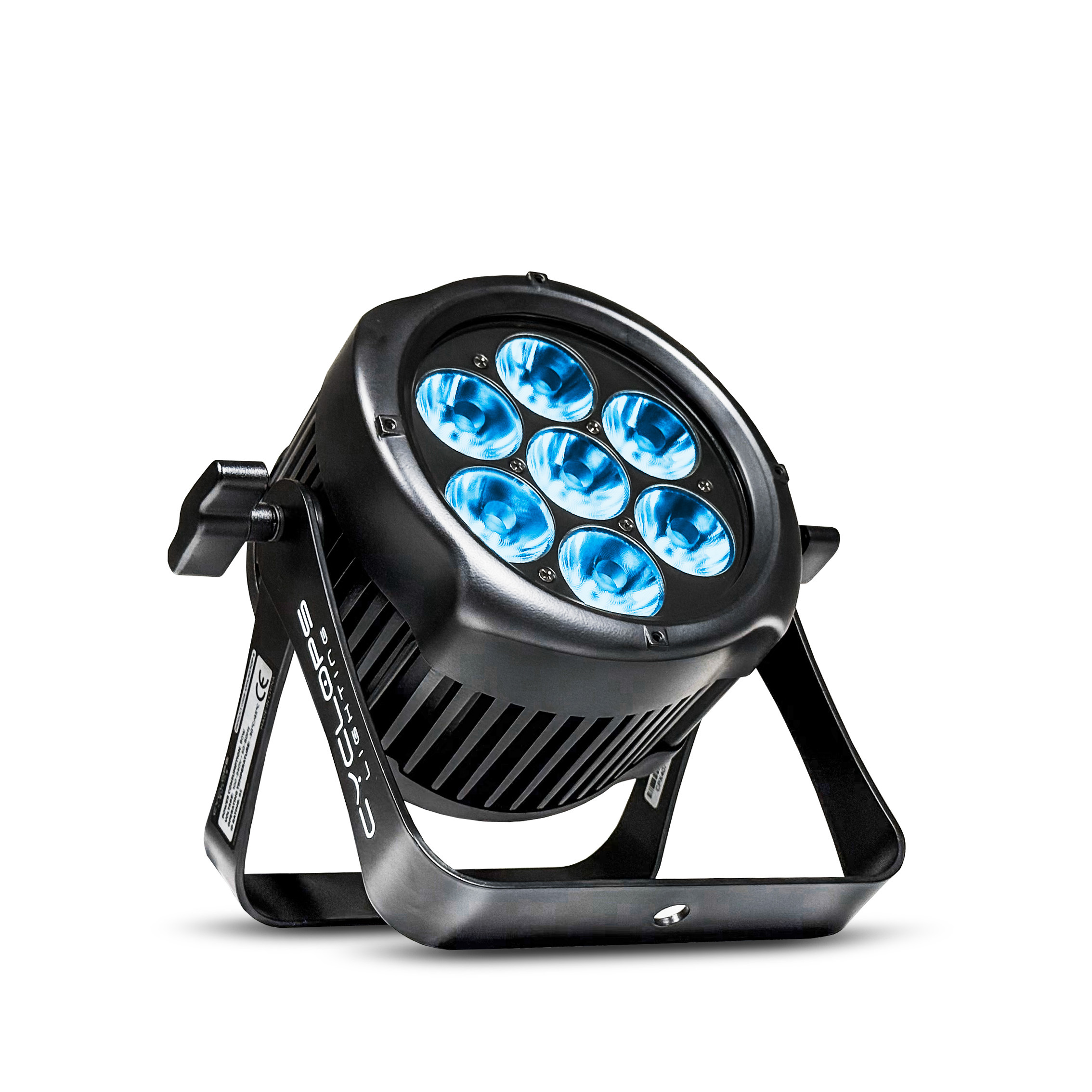

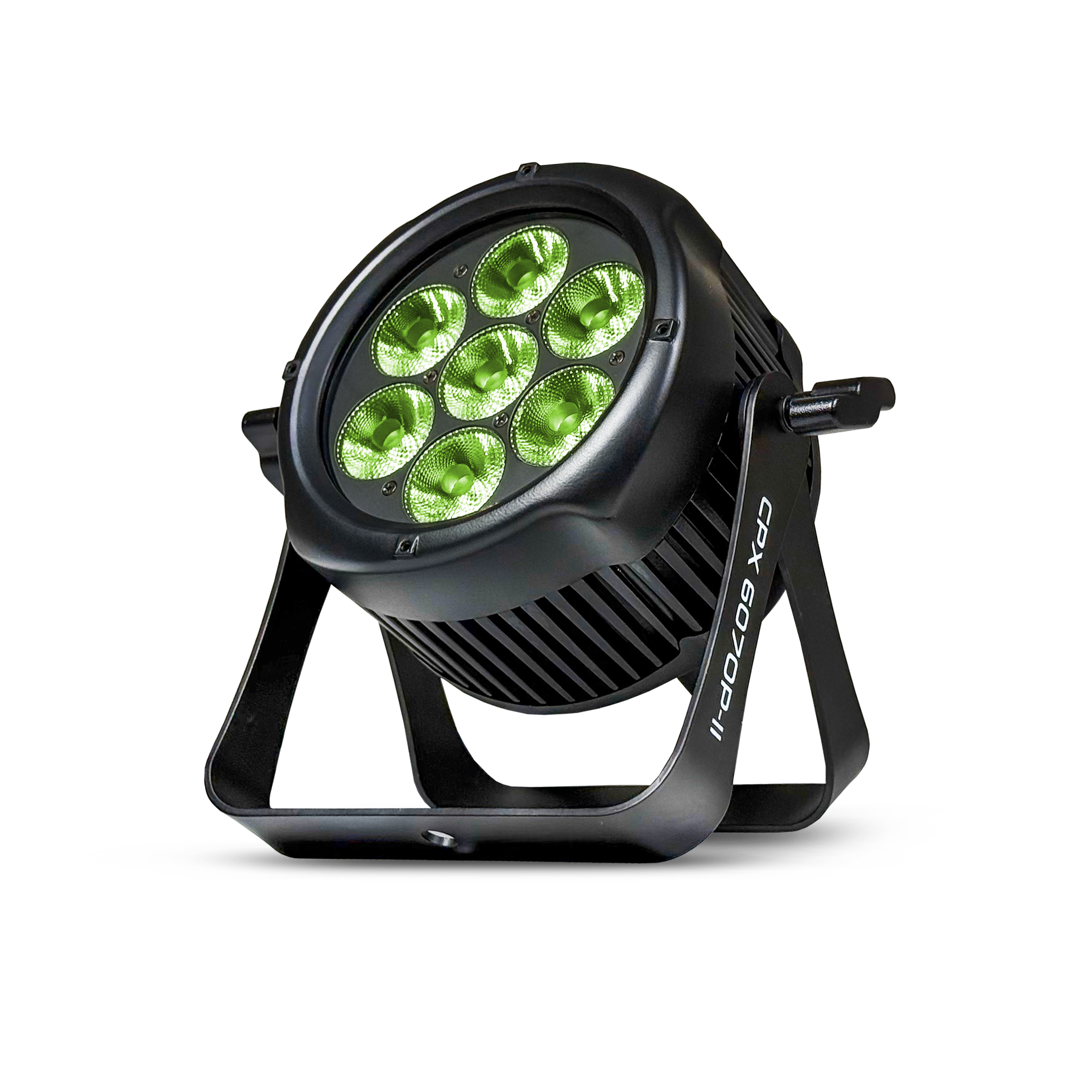

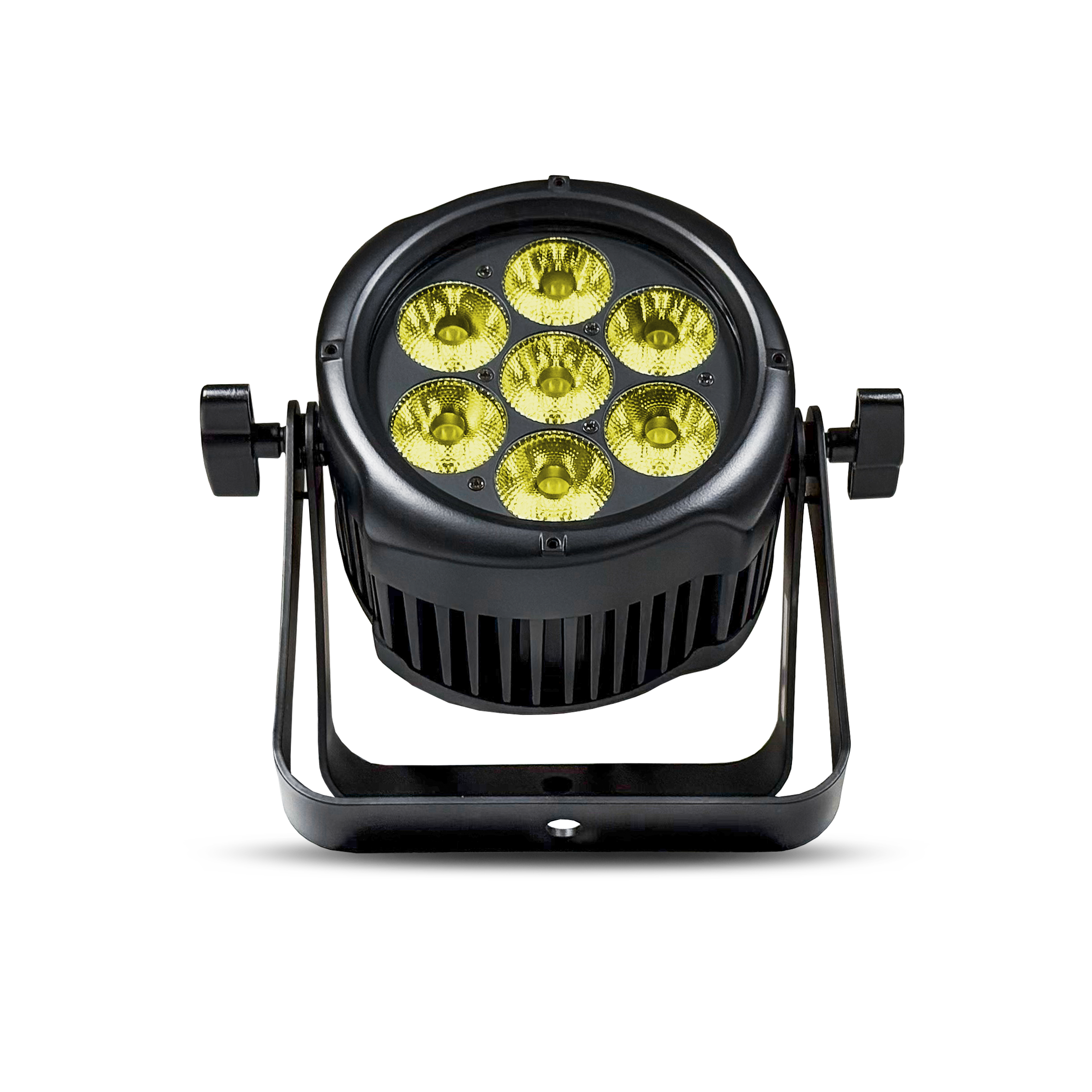

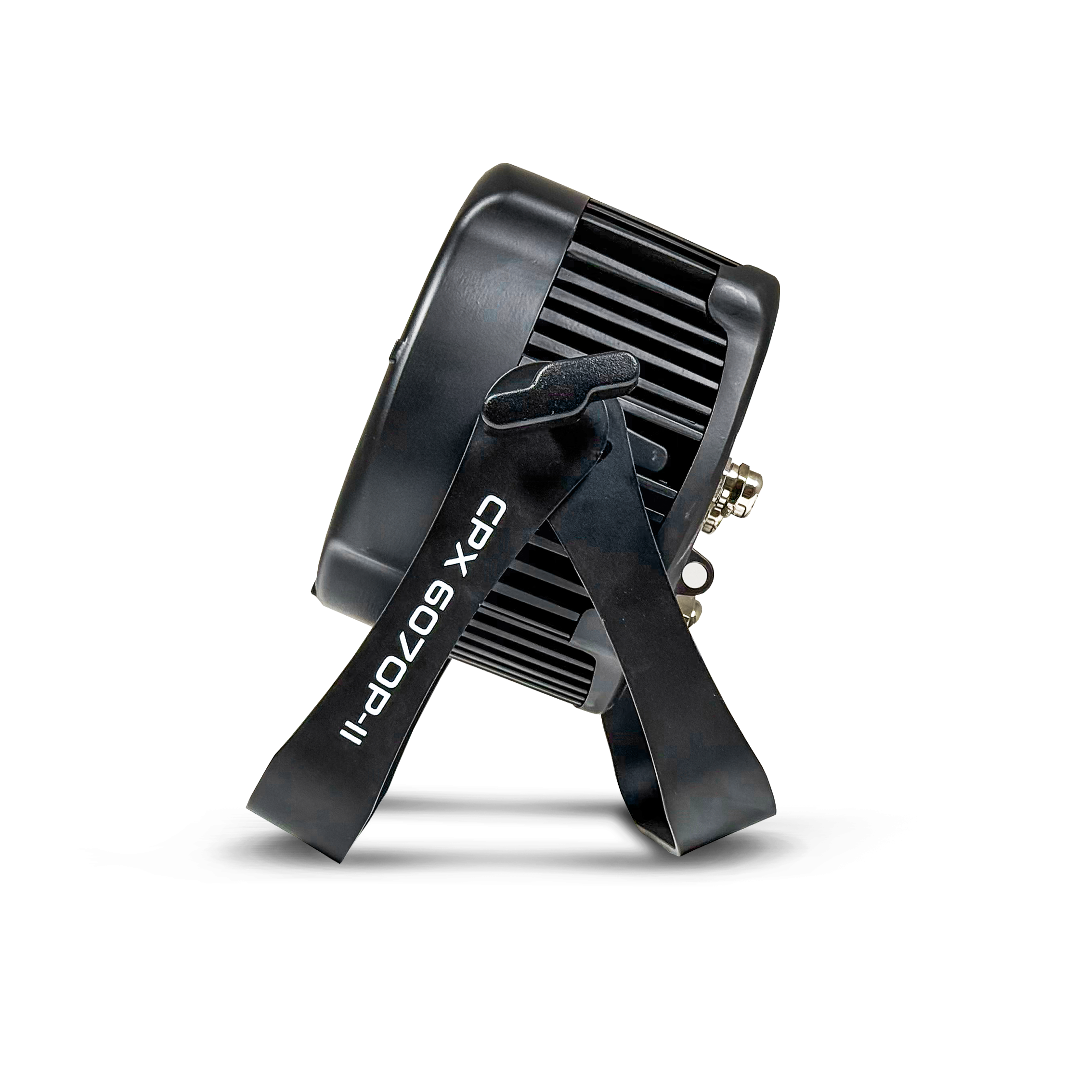

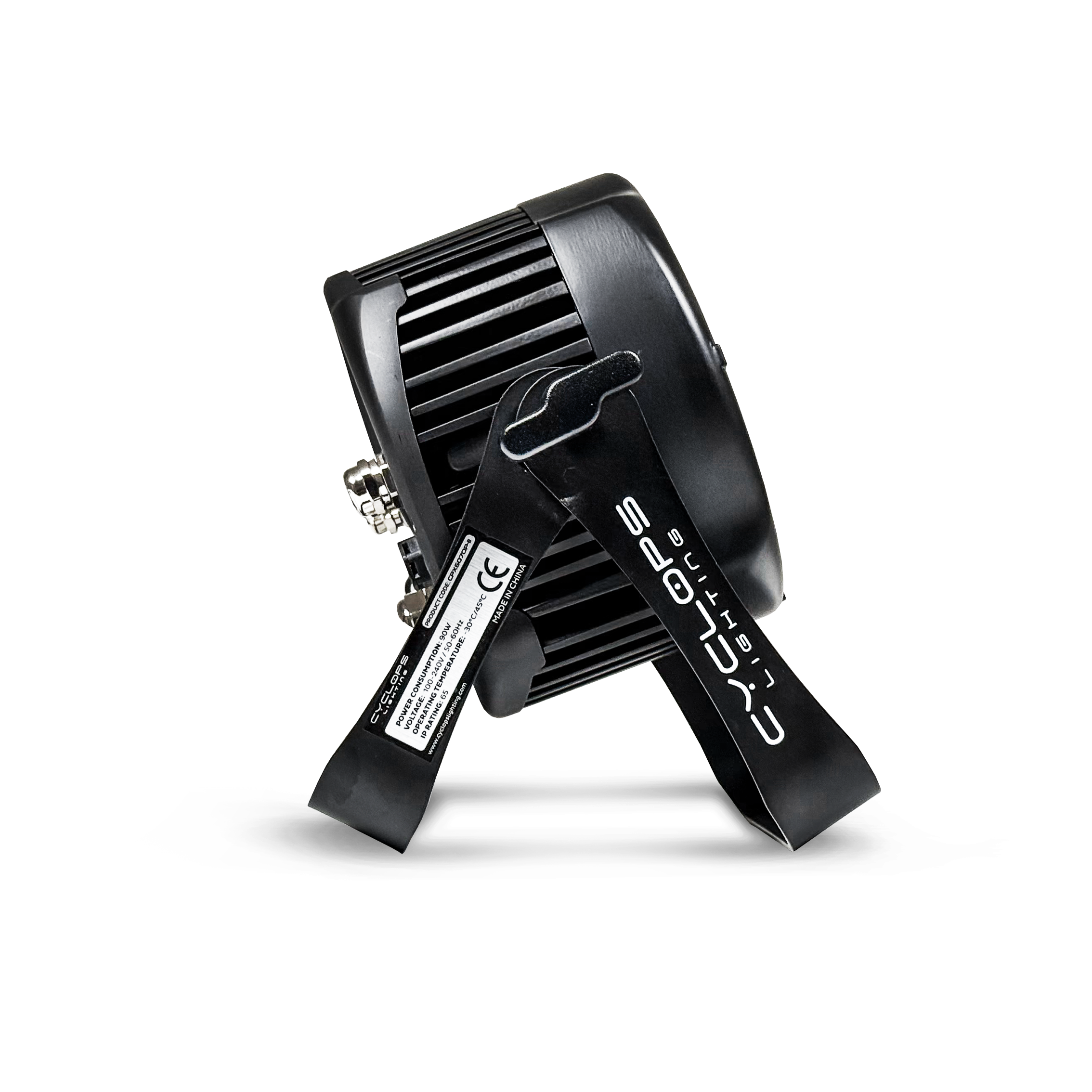

CPX 607OP-II - LED PAR

Product Description

Specifications

Source

• Light source: 7 x 20 watts, RGBWA + UV 6 in 1 LEDs
• LED life expectancy: 50,000 Hrs.

Optical System

• Beam angle: 15°

Dynamic Effects

• Dimmer: 4 selectable dimming curves
• Color mixing: RGBWA+UV
• Strobe and fade effect
• Built-in color and dynamic macros

 Control & Programming

• Control protocols: DMX, Master-Slave, Auto Run
• Display: TFT displayer with 4 buttons
• Control channels: 3, 6, 8, 10, 13 CHs

 Electrical

• Input voltage: 100-240V/50-60Hz
• Power consumption: 75 watts

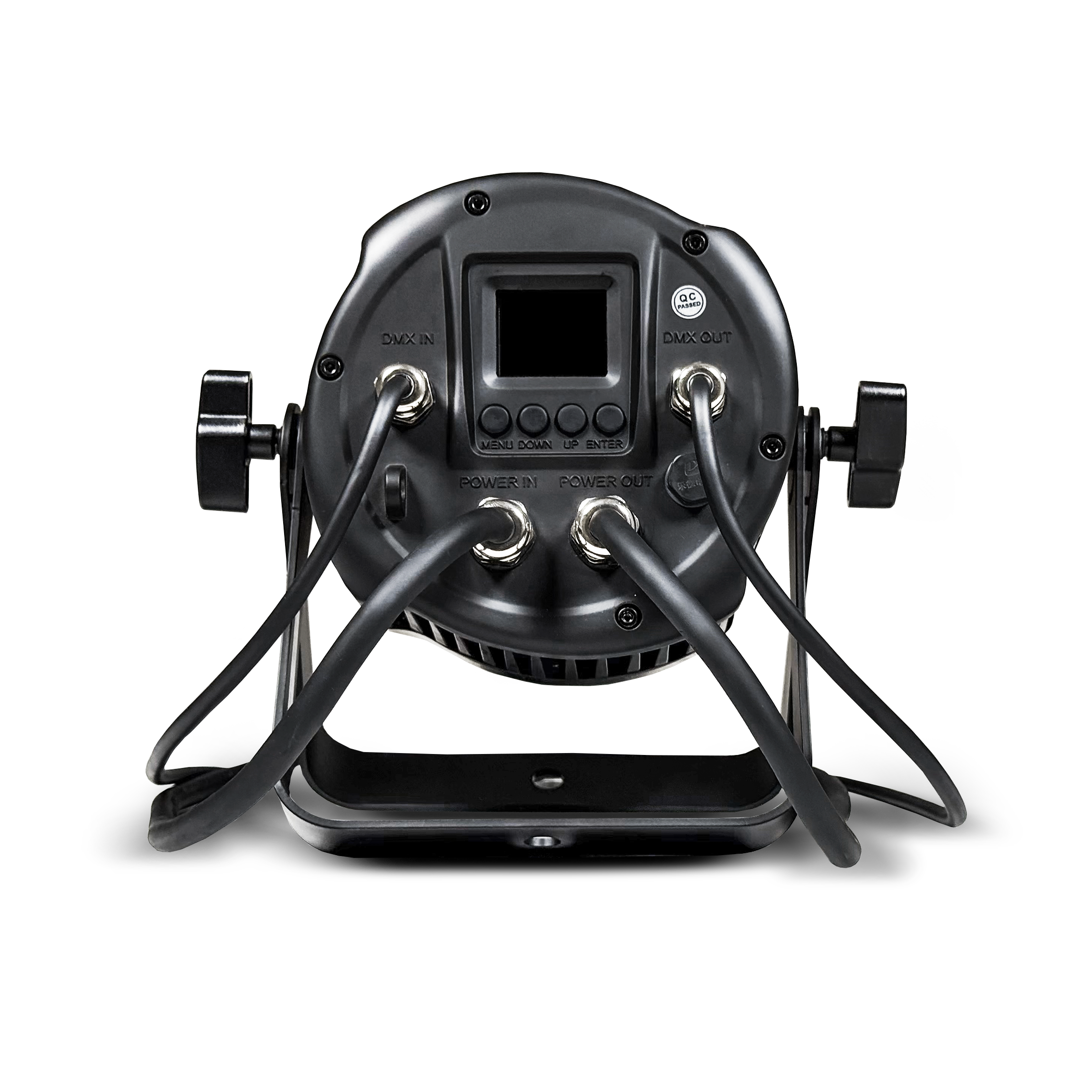

Connections

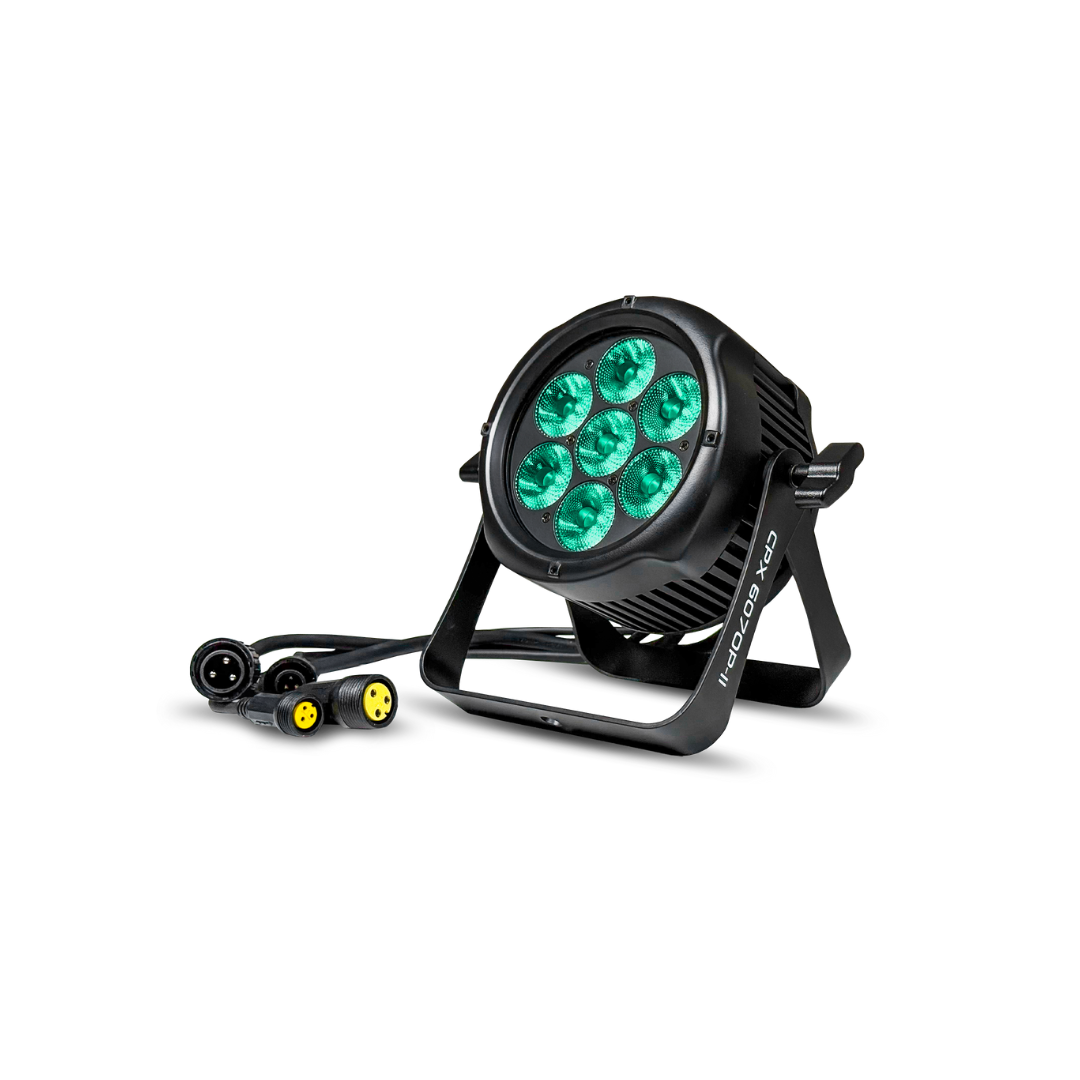

• DMX connections: IP DMX In/Out cables with 3 pin screw lock connectors
• Power connections: IP Power In/Out cable, 3 pin screw lock connectors

Physical

• Dimensions: 219 x 113 x 225mm
• Net weight: 3.4 Kg
• Color: Black
• Housing: Aluminum
• IP rating: 65
• Operating temperature: -30°C/45°C
