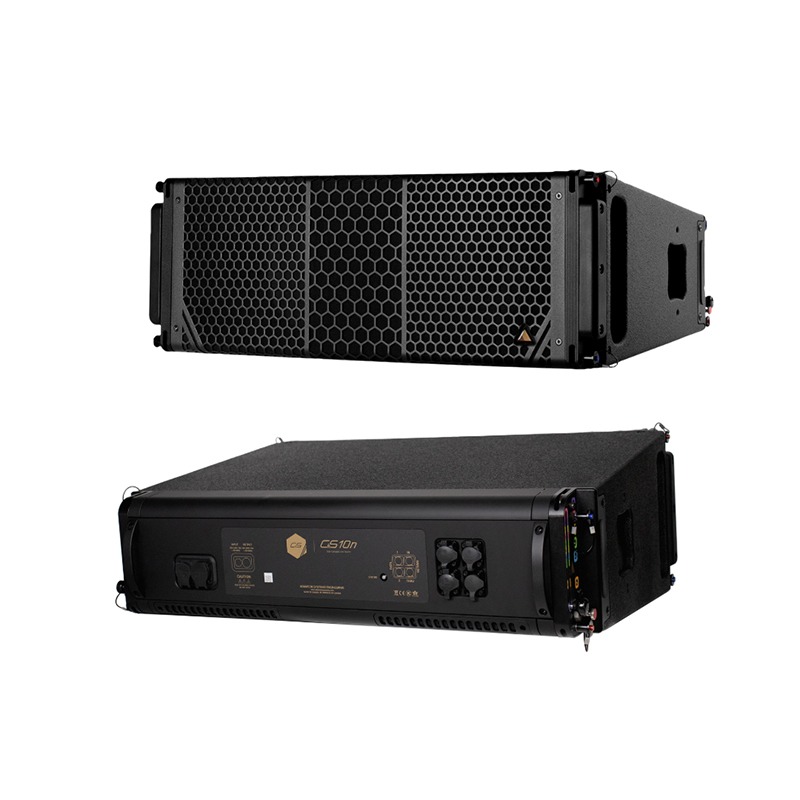

CS10n - Two-way Full-Range Loudspeaker

Product Description

Acoustically, the CS10n contains 2x 10-inch Kevlar® Neodymium transducers and a 4” compression driver. The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 80° x 10° (H x V). The narrower horizontal pattern allows for increased usability in reflective spaces as well as increased long-throw capability of a CS-Series package.

The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection.

Specifications:

• Frequency Range (+/-3 dB): 60 Hz – 18 kHz
• Nominal Directivity (-6 dB): H x V 80° x 10°
• Maximum Peak SPL**: 141.3 dB
• Components LF: 2x ND10-LM 10” Kevlar® Neodymium Driver
• Components HF: Adamson NH4 4” Diaphragm / 1.5” Exit Compression Driver
• Rigging: Slidelock Rigging System
• Connection: Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR
• Height Front (mm / in): 265 / 10.4
• Height Back (mm / in): 178 / 7
• Width (mm / in): 737 / 29
• Depth (mm / in): 526 / 20.7
• Weight (kg / lbs): 31 / 68.4
• Amplification: 2 channel Class-D, 2400 W total output
• Input Voltage: 100 – 240 V
• Current Draw: 0.45 A rms idle, 1.7 A rms long-term, 10 A max peak
