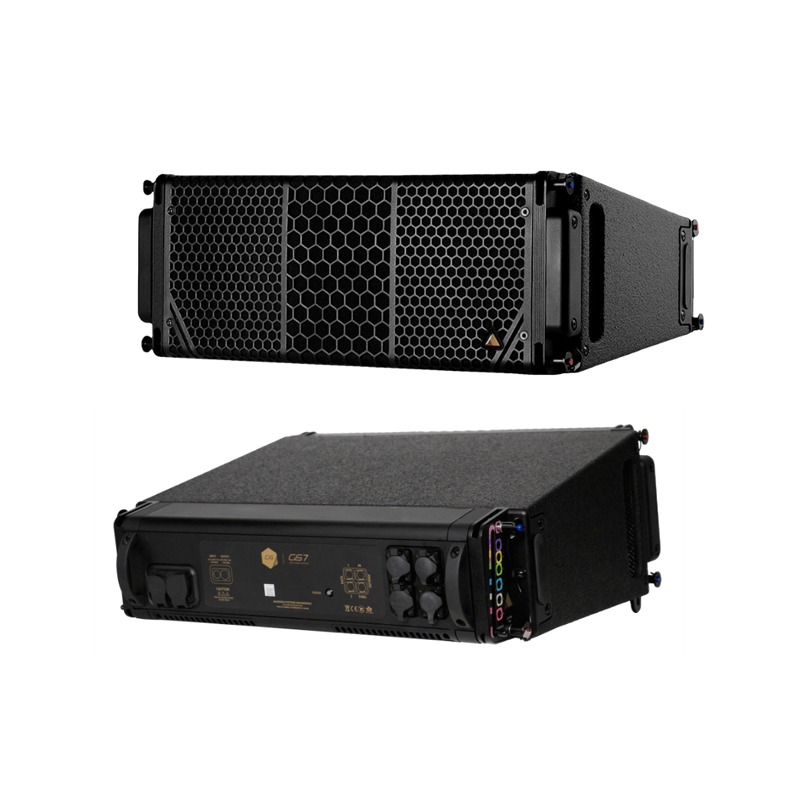

CS7 - Two-Way Full-Range Loudspeaker

Product Description

Acoustically, the CS7 contains 2x 7-inch Kevlar® Neodymium transducers and a 3” compression driver. The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 100°x 12.5° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the farfield. Adamson’s Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.

The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. Please refer to the CS7 User Manual for further information.

Specifications:

• Frequency Range (+/-3 dB): 80 Hz – 18 kHz
• Nominal Directivity (-6 dB): H x V 100° x 12.5°
• Maximum Peak SPL**: 138 dB
• Components LF: 2x ND7-LM16 7” Kevlar® Neodymium Driver
• Components HF: Adamson NH3 3” Diaphragm / 1.4” Exit Compression Driver
• Rigging: Slidelock Rigging System
• Connection: Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR
• Height Front (mm / in): 203 / 8
• Height Back (mm / in): 122 / 4.8
• Width (mm / in); 527 / 20.75
• Depth (mm / in): 411 / 16.2
• Weight (kg / lbs): 17.5 / 38.6
• Amplification: 2 channel Class-D, 2400 W total output
• Input Voltage :100 – 240 V
• Current Draw: 0.45 A rms idle, 1.5 A rms long-term, 9 A max peak
• Supported Processing: Onboard / Proprietary
