DECO-6, 40 W, 6.5" two-way passive full-range ceiling speaker, 8 ohm, white

Product Description

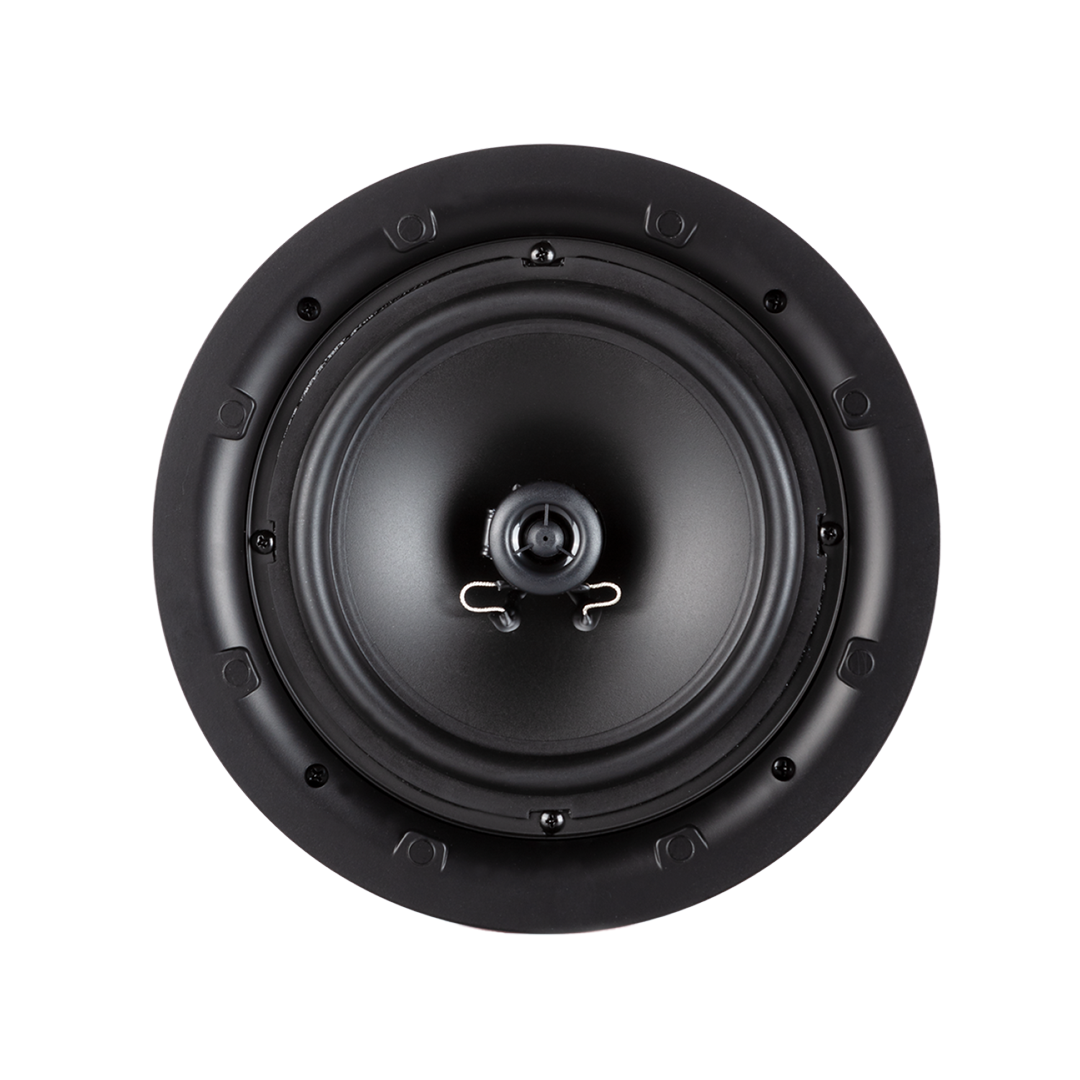

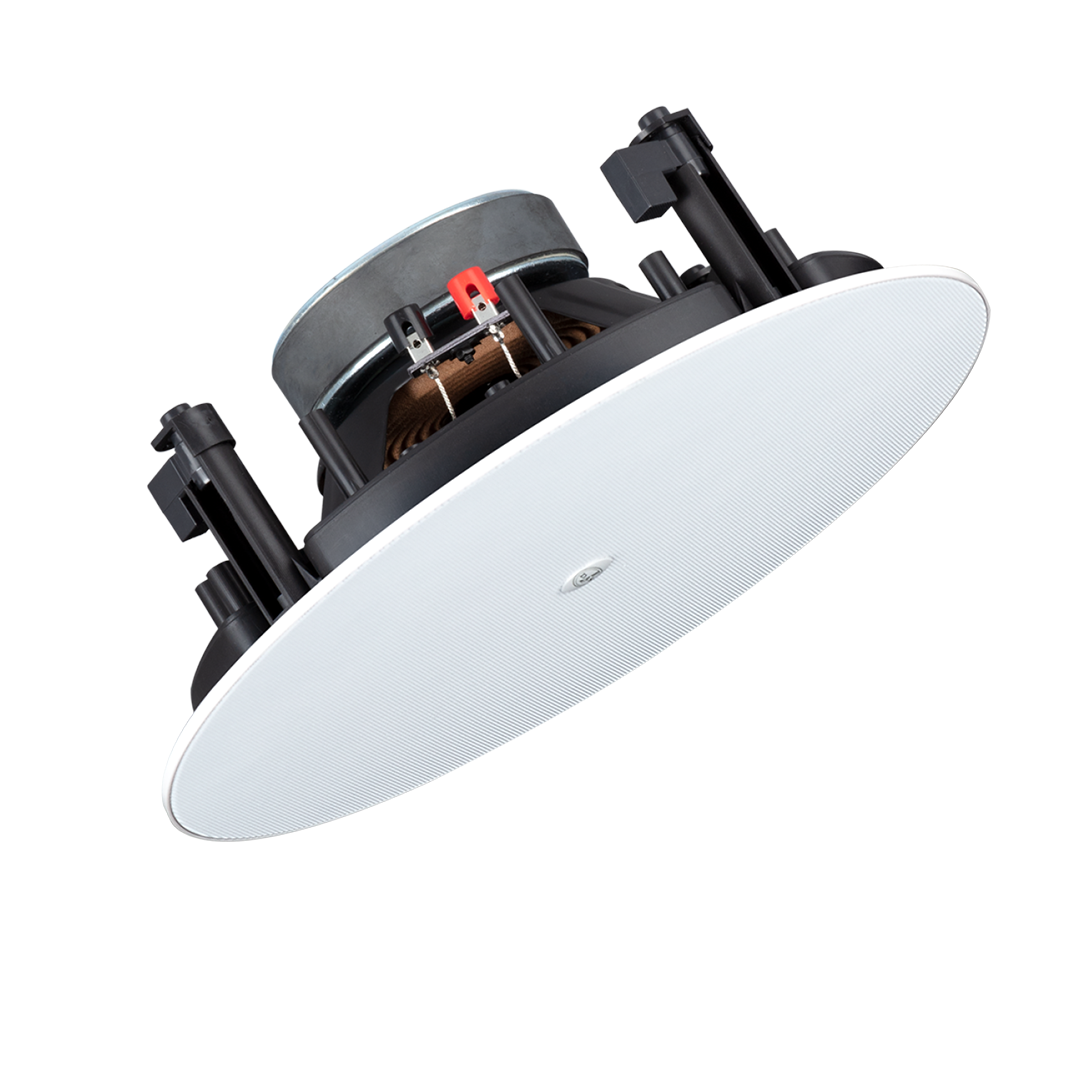

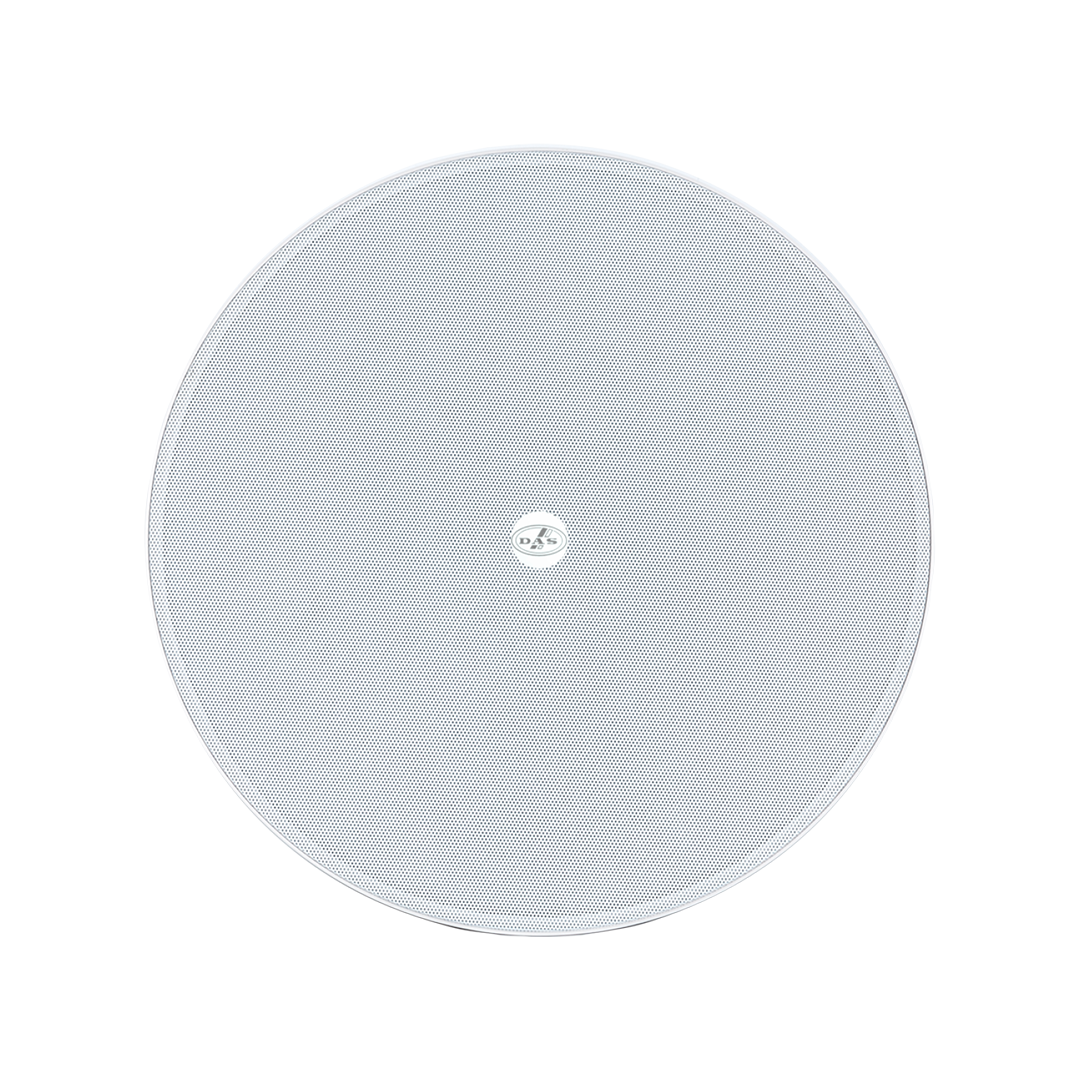

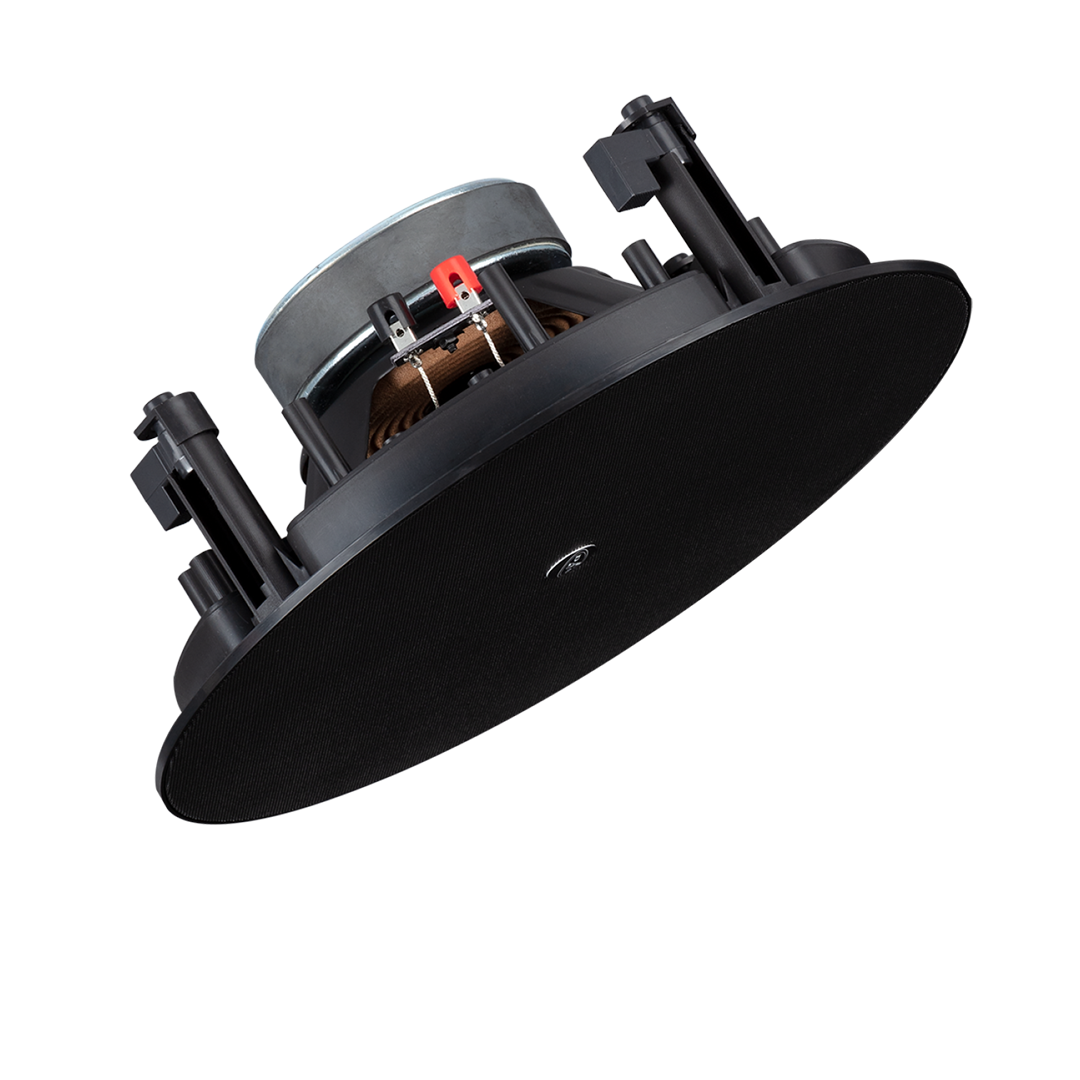

The DECO-6 is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It does not include a transformer and is specifically designed for low impedance.

Technical Specifications:

Performance

• Frequency Range (-10 dB): 60 Hz – 20 kHz
• Nominal Impedance: 8 ohms
• Conical Coverage: 95º
• RMS Power Handling: 40 W
• Peak Power Handling: 160 W
• On-axis Sensitivity (1 W / 1 m): 90 dB SPL
• Maximum Peak SPL at 1 m: 112 dB

Recommended Electronics

• Recommended Amplifiers:
• INTEGRAL-A402
• INTEGRAL-A404
• INTEGRAL-A1002
• INTEGRAL-A1004
• INTEGRAL-A1602
• INTEGRAL-A1604
• INTEGRAL-MA1004
• INTEGRAL-MA1604
• Recommended Processors:
• INTEGRAL-M88
• INTEGRAL-MA1604
• INTEGRAL-MA1004

Connectors

• Audio Input Connector: Spring Terminals
• Audio Output Connector: Spring Terminals

Enclosure

• Enclosure Geometry: Round
• Color: White
• Cut-Out Diameter: 210 mm (8.3 in)
• Dimensions ( H x W x D ):
• 230 x 230 x 80 mm | 9.0 x 9.0 x 3.2 in
• Net Weight:1.2 kg (2.6 lb)

Shipping

• Carton Dimensions ( H x W x D ): 270 x 250 x 390 mm | 10.6 x 9.8 x 15.4 in
  Shipping Weight: 1.4 kg (3.0 lb)
