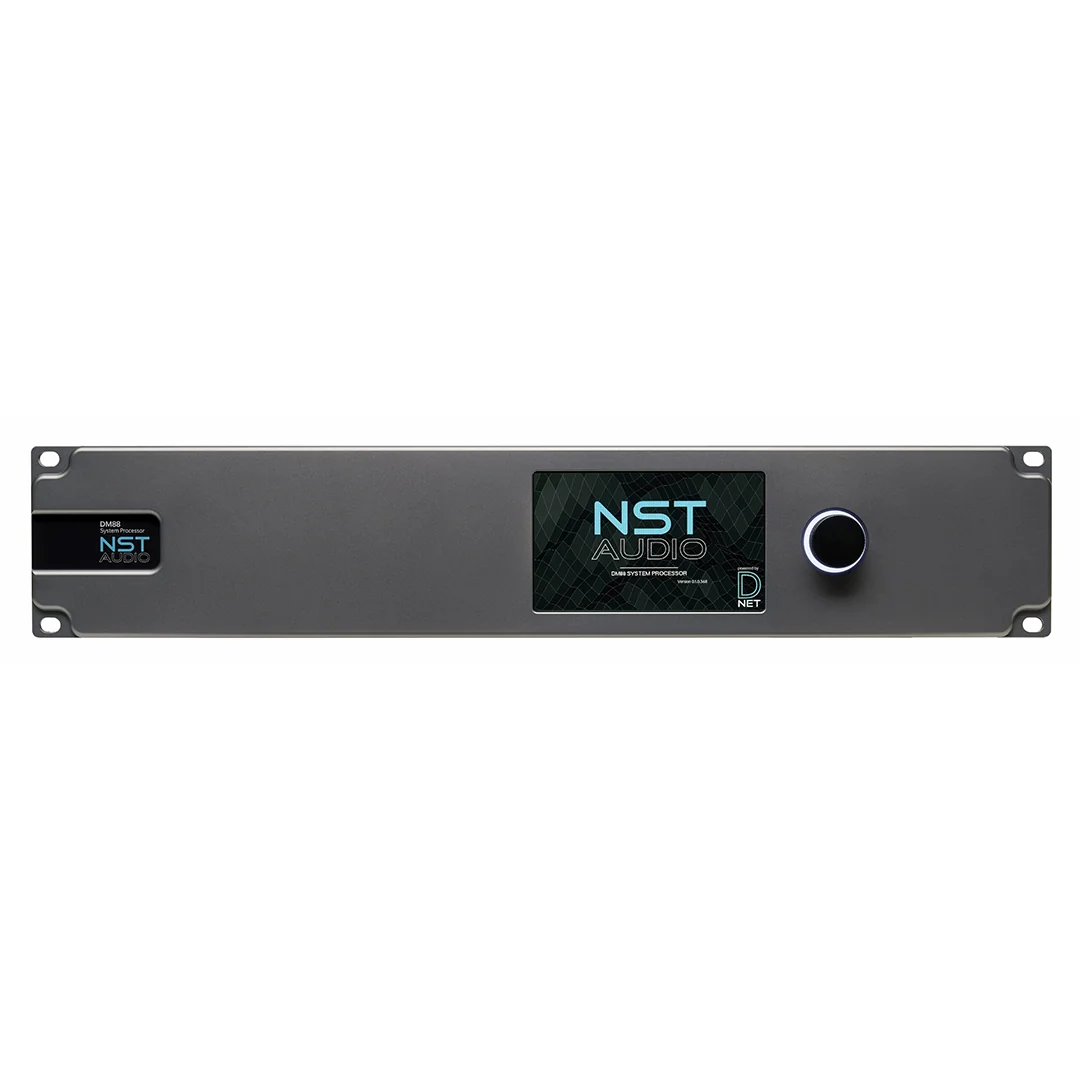

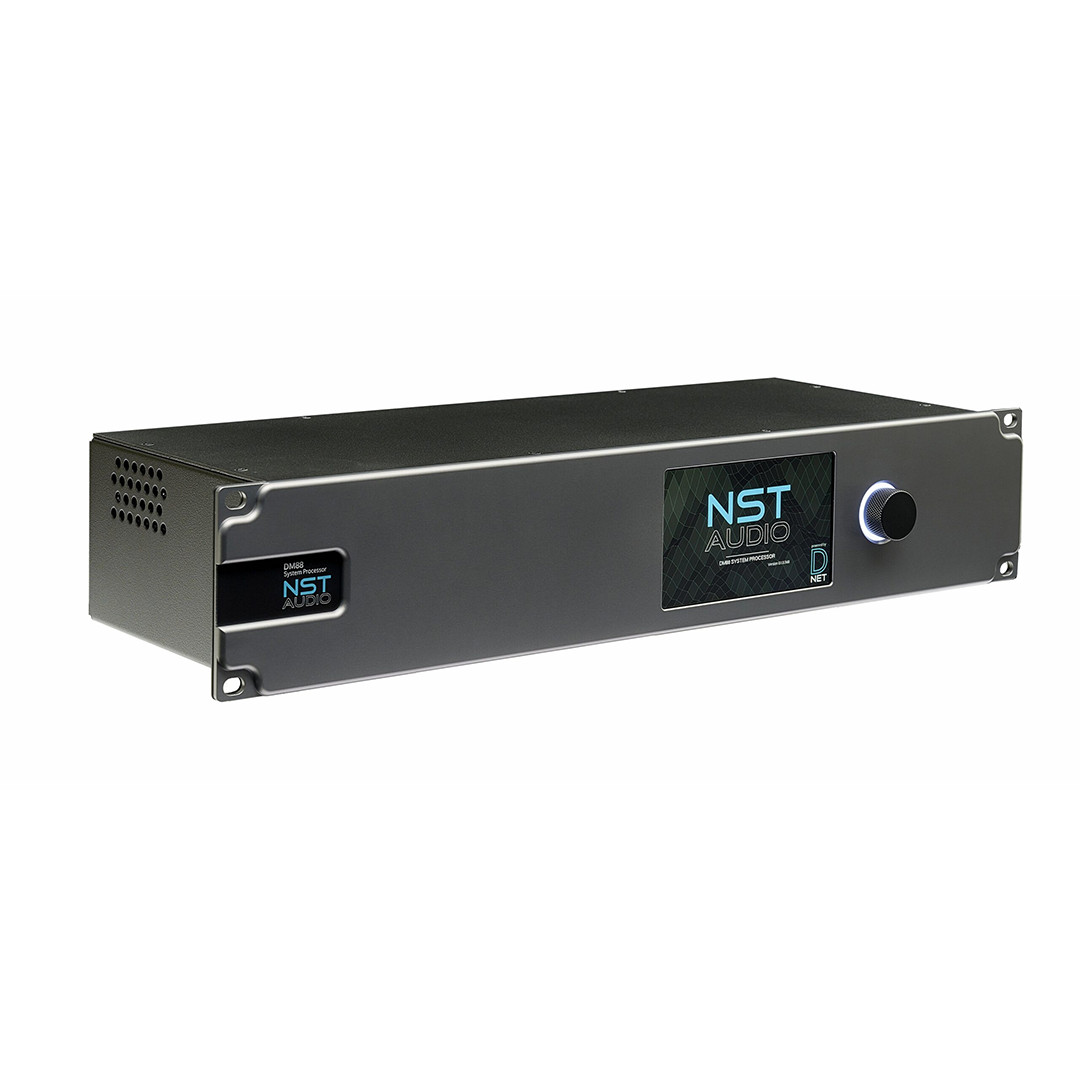

DM88 - Matrix Signal Processor

Product Description

Technical Specifications:

Analogue Inputs – 8 Electronically Balanced XLR

• CMRR: >60dB @ 1kHz
• SNR: 119dB ‘A’wtd
• Maximum Level >20dBu
• Input Impedance: 10k Balanced

Analogue Outputs – 8 Electronically Balanced XLR

• SNR: 122dB ‘A’wtd
• Maximum Level: >20dBu
• Source Impedance: <60R

AES3 Inputs – 4 x 2 Transformer Balanced XLR

• AES Input Sample Rates: 8kHz – 192kHz
• AES Input s/n Ratio: 139dB
• Input Impedance: 110R

AES3 Outputs – 4 x 2 Transformer Balanced XLR

• Sample Rate: 96kHz
• Source Impedance: 110R

Network Audio

• 16 in, 16 out (96kHz)
• Dante and AES67 compatible
• BNC Word Clock Input (auto-selected if valid)

Performance & Mechanical

• Frequency Response: 12Hz – 32kHz +0.2dB
• Dynamic Range: >119dB ‘A’wtd (in-out analogue)
• THD+N (+19dB @ 1kHz): 0.00029%
• Latency: 0.615mS (in-out analogue, 96kHz)
• Power: 90-250VAC, 50-60Hz, 20W
• Dims: 88 x 170 x 482mm (3.47 x 6.75 x 19in)
• Weight: 3.2kg Net; 4.4kg Shipping

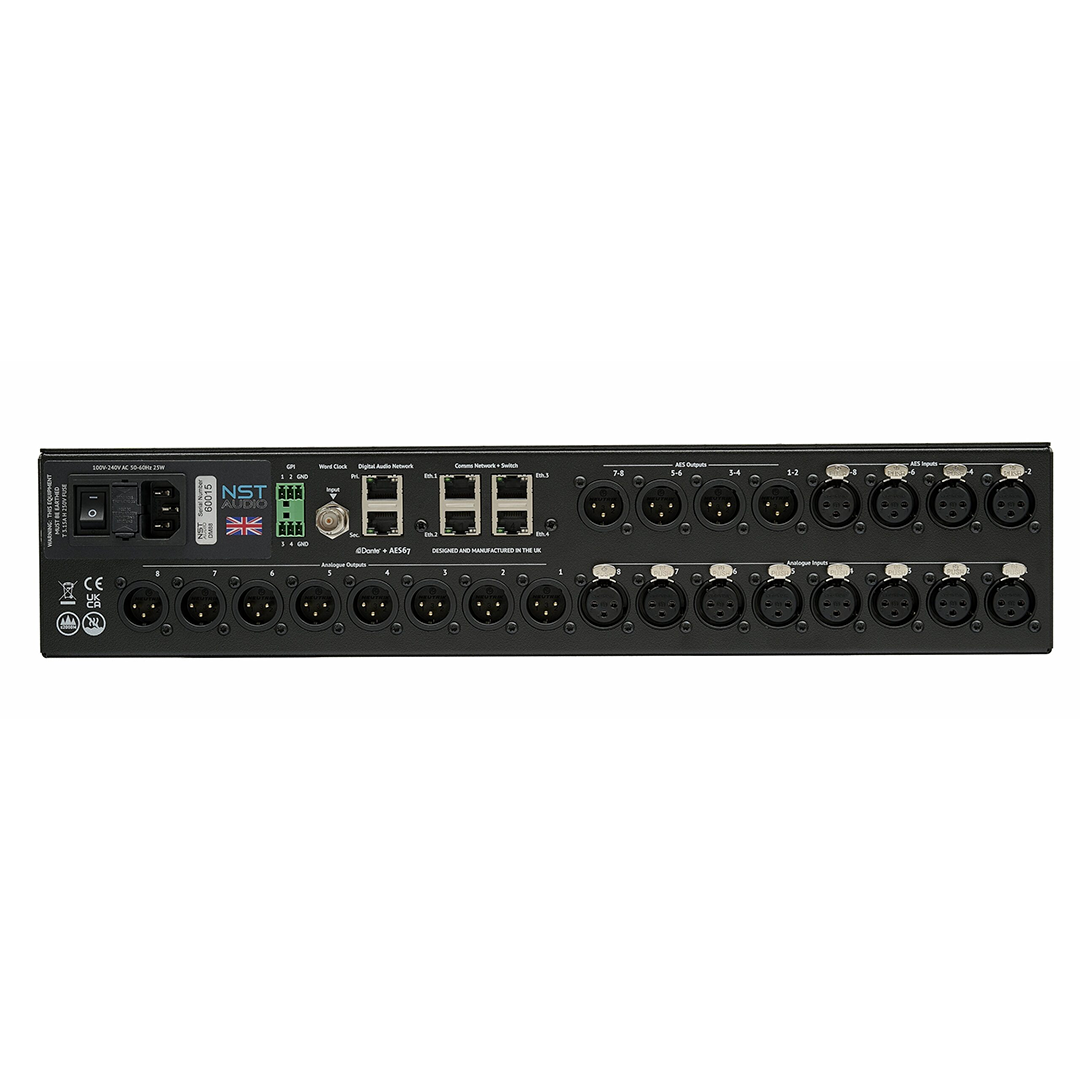

Audio 1/0:

• 8 Analogue Inputs; 4×2 AES3 Digital Inputs (with
• SRC) Word Clock Input
• Redundant Dante Network Audio Ports
• 16 Dante Input Channels
• 8 Analogue Outputs; 4 x 2 AES3 Digital Outputs
• 16 Dante Output Channels

Input Processing Features:

• Variable High Pass Filter Compressor
• Multi-Layer Parametric EQ with Behaviour Library
• 3 Bands Dynamic EQ
• Delay/Gain/Polarity/Mute

Output Processing Features:

• Multi-Layer Parametric EQ with Behaviour Library
• Crossover Filters up to 48dB/Oct
• FIR Capable – up to 1024 taps/channel(96k)
• Band Gain, Output Gain, Polarity/Mute
• Delay (up to 1.3s per channel)
• 2 RMS Limiter Modes (Standard & Passive 2-way)
• Look Ahead Clip Limiter

Signal Routing Features:

• Failover System – three-level automatic “virtual”
• inputs that select alternate sources if a signal fails
• Direct Source Conversion – any input source can be routed direct to any output bypassing DSP
• Mix Matrices – every input and output processing channel has a 4 source select and mix matrix

Comms & General Features:

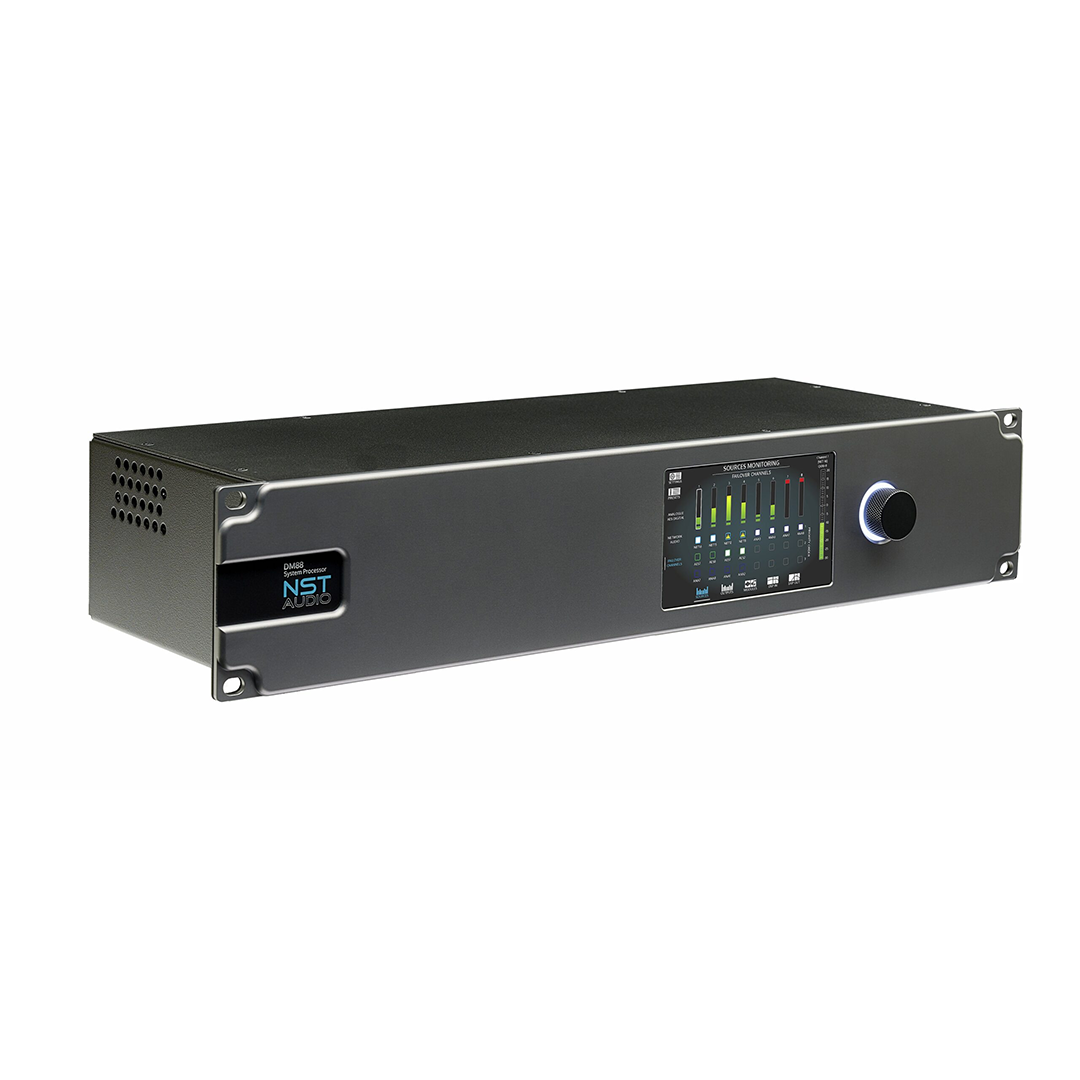

• 5″ colour touchscreen for monitoring, key
  level and delay/phase/mute control & preset
• recall 4 GPI ports for configurable external control
• Up to 64 presets may be stored for offline recall
• Remote control via Gigabit Ethernet with integrated 4 Port Switch

Compatible with VRl, VR2 PoE remote control panels and V-Remote iPhone control app.
