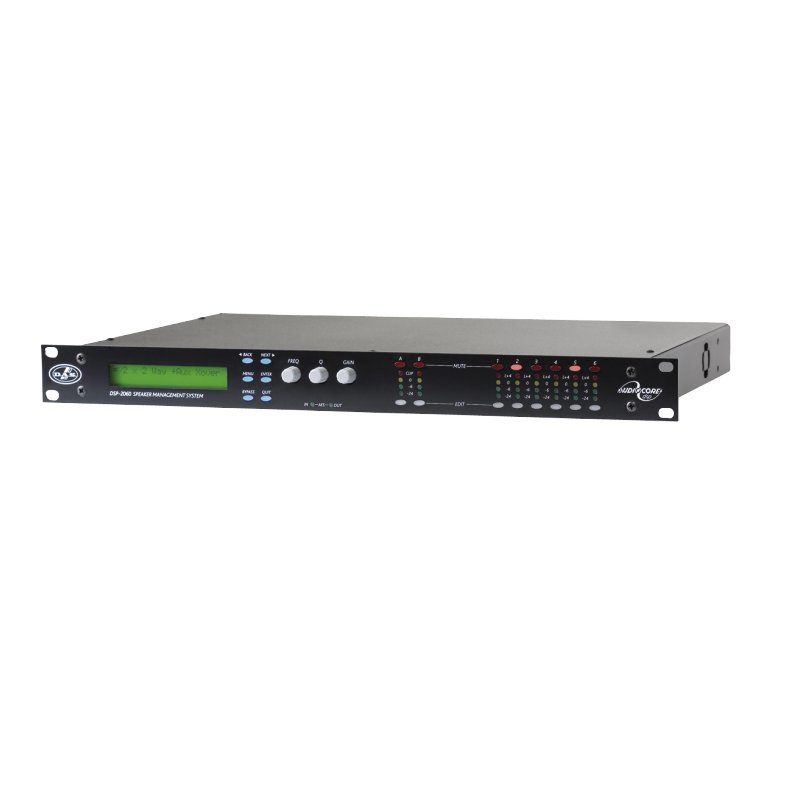

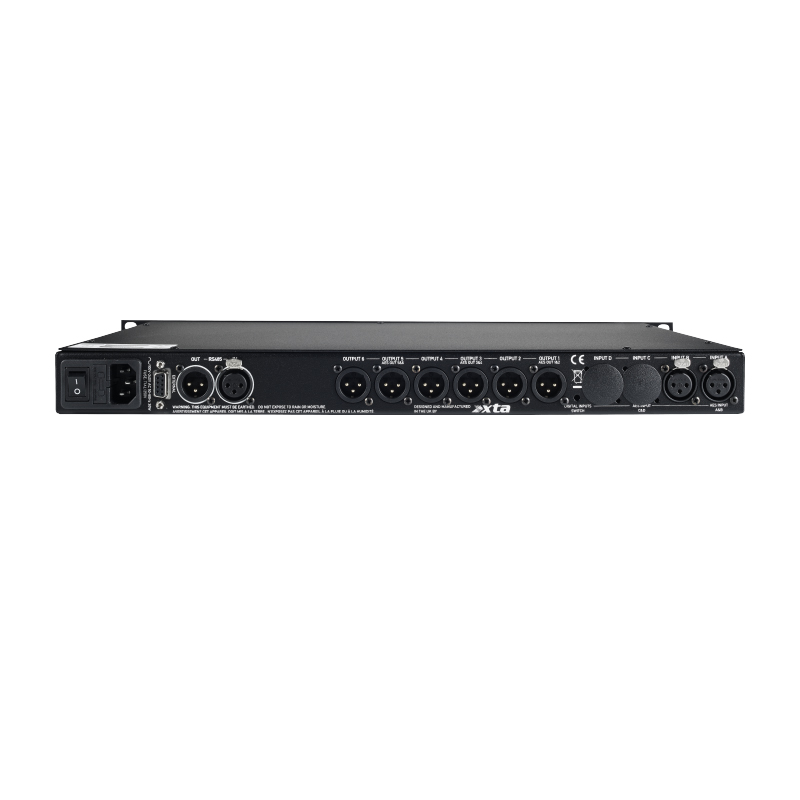

DSP-2060A – Audio Processor

The DSP-2060A is a powerful DSP based audio processor, ideally suited for install and live applications.

Product Description

The DSP-2060A is a powerful DSP based audio processor, ideally suited for install and live applications, where it combines the functions of a multitud of conventional products in a compact unit.

– 2 inputs and 6 outputs
– 9 full bandwidth parametric bands available on every output
– Crossover filters on each output offer 48 dB/oct response
– Adjustable gain on both inputs and outputs
– RS232 and RS485 ports for remote control via AudioCore software

Technical Data

  • Frequency Response:20 Hz-20 kHz, +0/-0.50 dB
    32 kHz, -3 dB
  • Dynamic Range:>116 dB unweighted 20 Hz-20 kHz
  • Distortion (THD):<0.02% @ 1 kHz, +18 dBm
  • AC Requirements:60-250 VAC 50/60 Hz
  • Dimensions (H x W x D):4.4 x 48.2 x 30 cm
    1.75 x 19 x 11.8 in
  • Weight:3.3 kg (7.3 lb)
