DSP-226 – Management Processor

The D.A.S. DSP-226 is a loudspeaker system management processor which uses digital signal processing in order to accomplish the functions of crossover, equalizer, limiter, and delay unit.

Product Description

– Digital Signal Processor
– 2 Inputs/6 Outputs
– Completely Configurable
– Universal Power Supply

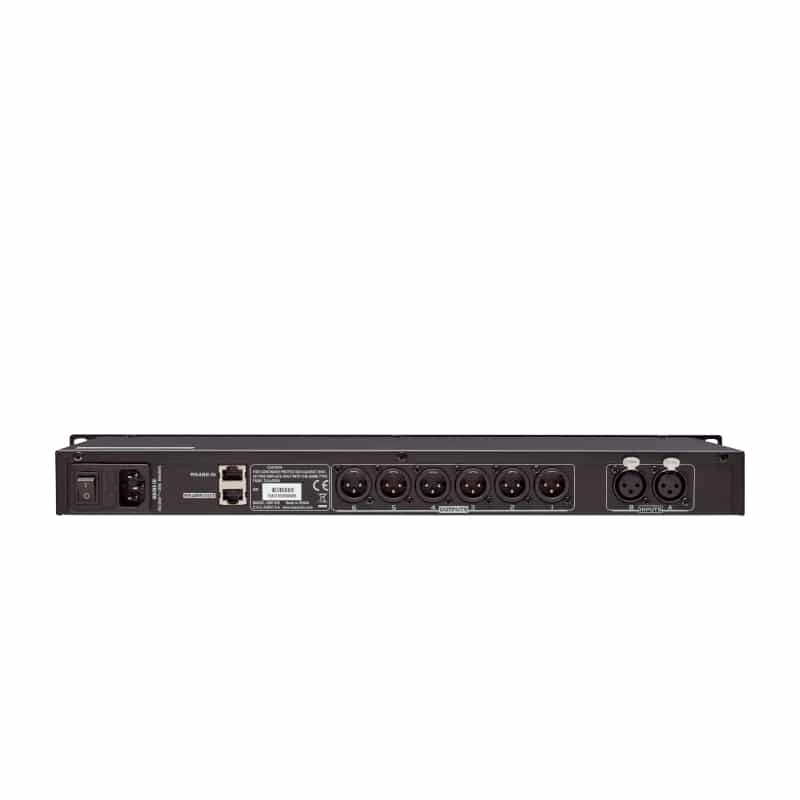

The D.A.S. DSP-226 is a loudspeaker system management processor which uses digital signal processing in order to accomplish the functions of crossover, equalizer, limiter, and delay unit. Designed for applications such as zoning and permanent installations, PA systems and stage monitor set ups, the DSP-226 features two balanced analogue inputs, six balanced outputs using XLR connectors, RS485 in/out and USB socket on the front panel.

  • Frequency Response:20 Hz-20 kHz, +0/-0.5 dB
  • Dynamic Range:116 dB A Weighting
  • Channel Separation:< -100 dB
  • Distortion (THD):0.003%, 1kHz at 0 dBu
  • Input Metering:-24 dB,-12 dB,-6 dB, 0 dB
    +6 dB,+12 dB,+24 dB
  • Output Metering:-24 dB,-12 dB,-6 dB, 0 dB
    +6 dB,+12 dB,+24 dB
  • AC Requirements:95-240 VAC 50/60 Hz
  • Dimensions (H x W x D):4.5 x 48.2 x 15.8 cm
    1.77 x 19 x 6.2 in
  • Weight:2 kg (4.4 lb)

Downloads

Data Sheet
