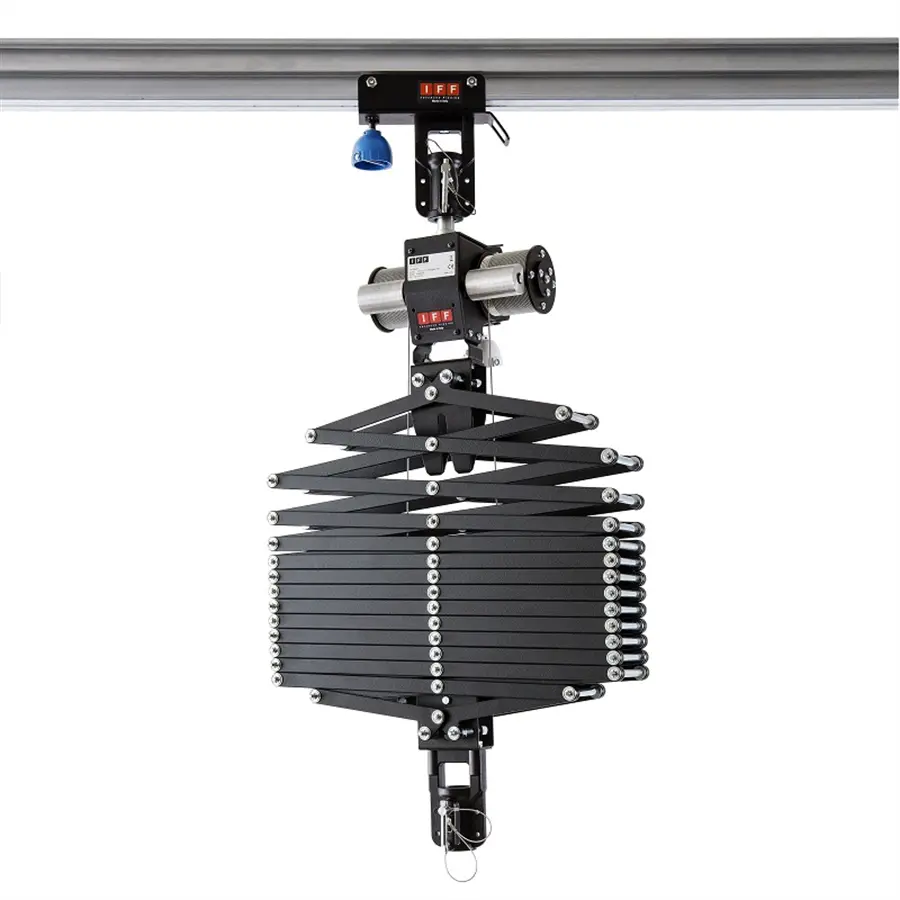

DUO P.O. Pantograph - max load 40Kg

Product Description

The pantograph can be extended via twin wire ropes. The self-locking drum winch with two steel cables support loads under static and dynamic conditions. The specially designed double scissors mechanism adds extra stability and is furnished with cable clips to support luminaire power cables. It is dynamically and statically irreversible thanks to its static and dynamic efficiency (<0.5).

Product Features

Maximum load

• 40 kg

Maximum drop

• 6 m

Closed height

• 0.78 m

Closed width

• 0.52 m

Self weight

• 18.1 kg

Height adjustment

• local pole operated

Lifting rope

• Ø 2 mm x 2 pcs

Top Fixing

• 28 mm male spigot

Bottom fixing with 28 mm bushing

• 28 mm female socket

Bottom fixing with universal head

• 28F – 16M/F
