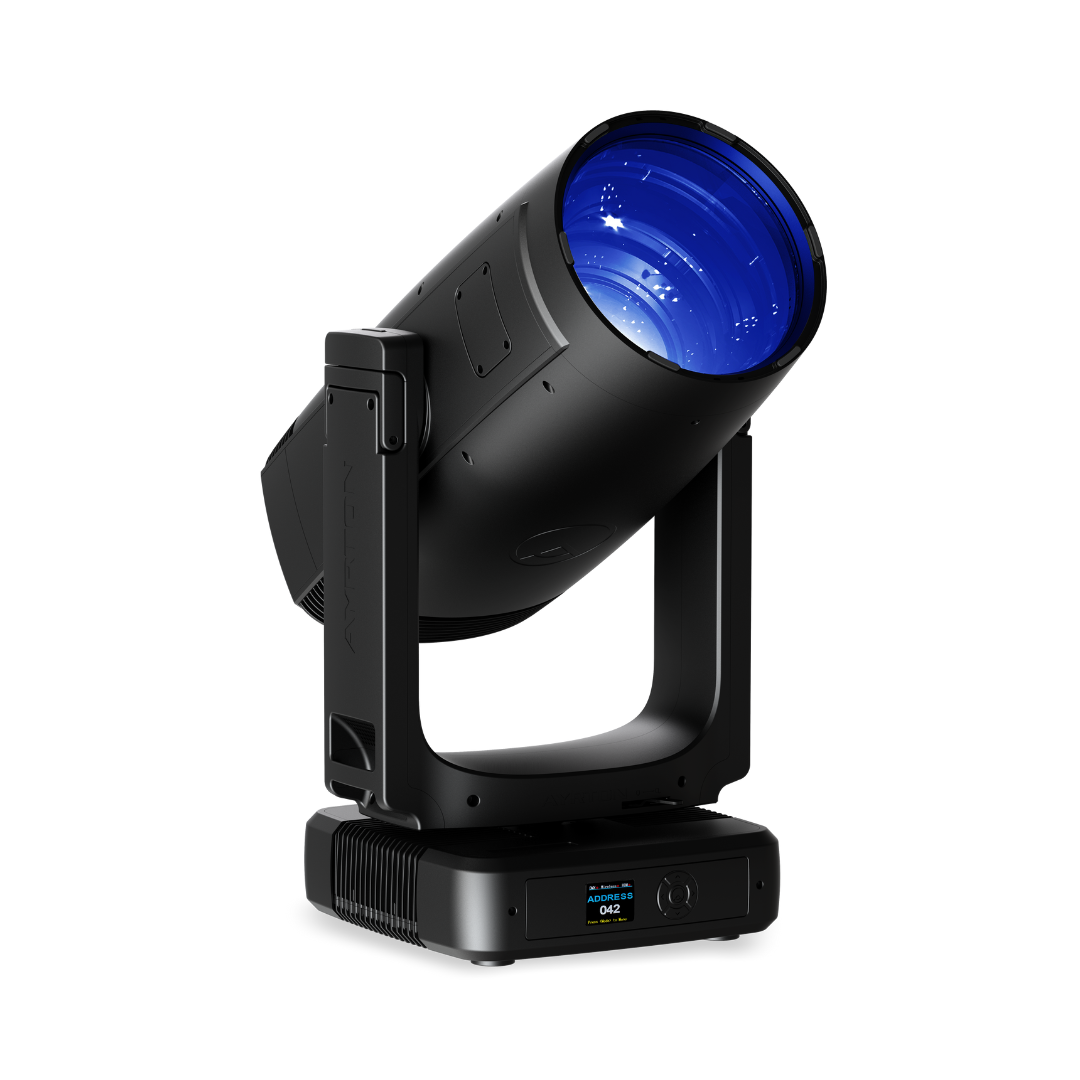

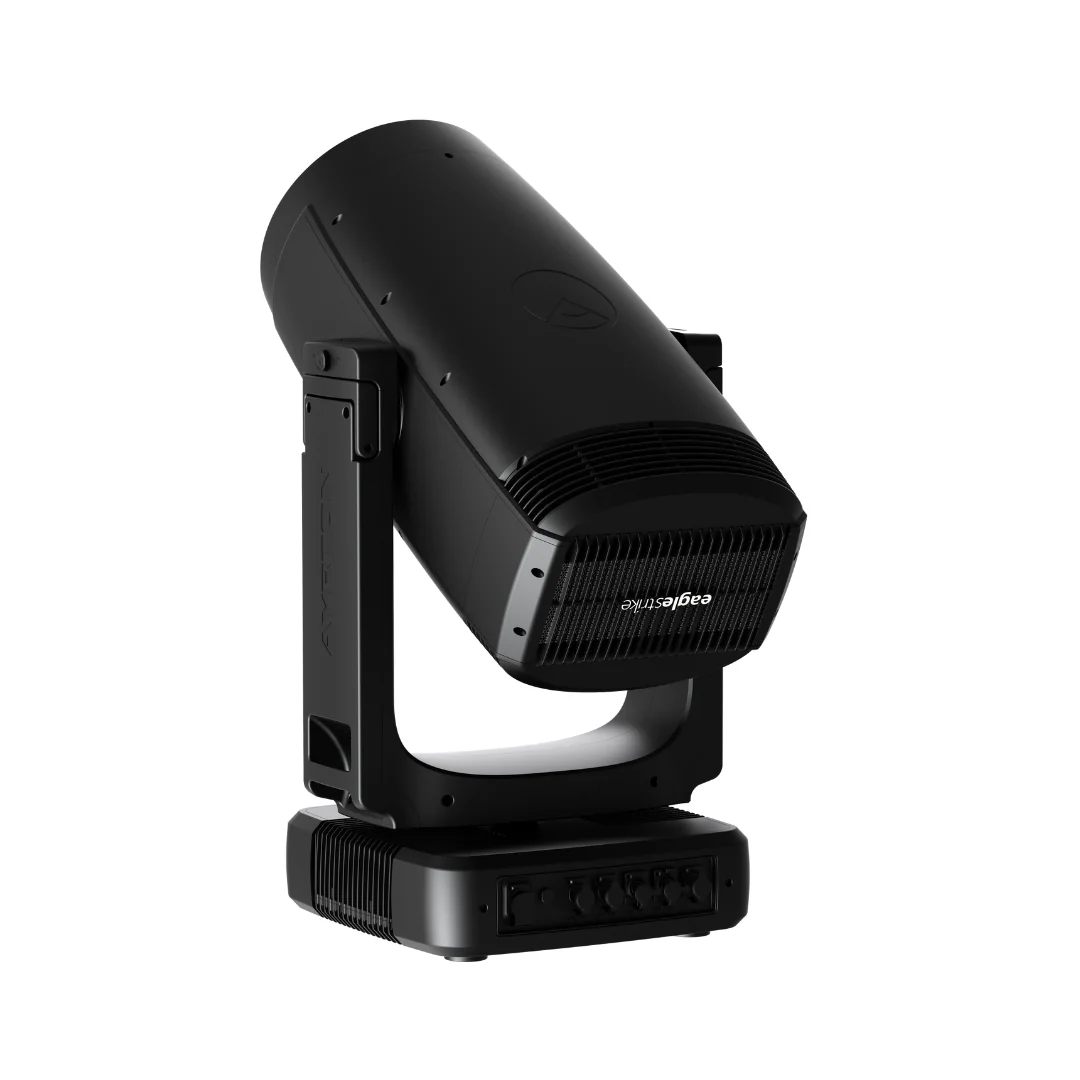

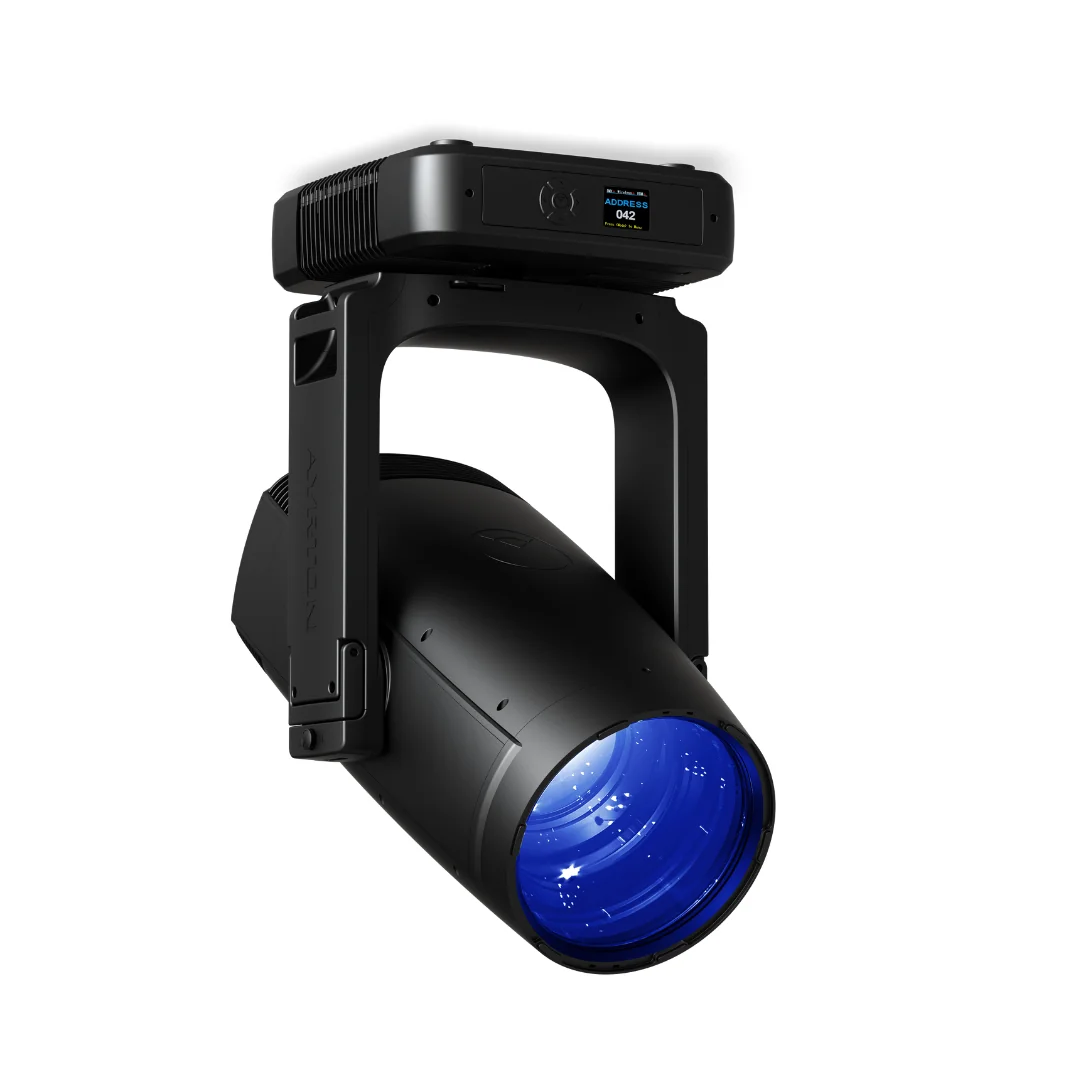

EagleStrike LT - LED Followspot

Product Description

TECHNICAL SPECIFICATIONS

Optics

• 13-element 15:1 zoom high-resolution optic system
• Beam aperture: 2.9 ° to 43 °
• Beam reducer : 0.9 ° & 2.5 °
• Tempered anti-reflective coated lenses
• Oversize 270 mm frontal lens for greater performance

Light source

• 82,000 lumens white light engine
• Total luminaire output: up to 55,000 lm (integrating sphere measurement, Stage Fan mode)
• Lux at 10 m: over 100,000 lx (narrow angle)
• Colour temperature output: 6500 K
• CRI: greater than 70
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events

Movement

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• Pan and tilt automatic repositioning
• Moving-head range: infinite (pan), 270° (tilt)

Colours

• Sophisticated colour mix system providing CMY colour mixing
• Variable CTO colour temperature correction 2900 to 6500 K
• Fixed colour wheel with six complementary colours
• Fixed colour wheel with two CRI optimisation filters, a minus green, a gobo correction and multicolour filters

Gobos

• Indexable rotating gobo wheel with five high precision glass gobos, 2 beam reducers plus open position
• Indexable rotating gobo wheel with five metal gobos, 2 glass multicolour filters, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 30 mm
• Image diameter: 19 mm
• Gobo thickness: 1.1 mm (Glass gobo), 0.5 mm (Metal gobo), 2.2 mm (Multicolour gobo)

Framing system

• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the shutter blades module: +/- 90°

Iris diaphragm

• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open

Frost

• Light frost (1°) to soften the edge of the beam
• Heavy frost (5°) for Wash effects

Effects

• Focusable graphic animation effect-wheel with continuous rotation in both directions
• 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear

Dimmer / Strobe

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version
• 360SC Mode: 360° pan range for continuous rotation without flips
• FS Mode: enhanced pan/tilt responsiveness for use with tracking systems
• Special followspotting mode: Pan/Tilt Spd Tracking 360

Hardware features

• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set functions
• Excess temperature protection
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• IP65 XLR 5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet and sACN connection
• IP65 RJ45 for optional NDI Camera
• IP65 PowerCON TRUE1 male connector for power connection
• Option for an IP65 NDI Camera holder

Control

• DMX 512 protocol, through IP65 DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 3 DMX modes (from 44 to 66 DMX channels)

Power supply

• Electronic power supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 1,450 W maximum
• Power : 1,295 W typical consumption at 230 V

Cooling system

• Advanced high-performance cooling system
• IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes including Super Silent Mode
• Safety protection against excess temperature

Housing

• Moving-head skeleton made of aluminium and steel metal plates
• Head in die-cast aluminium
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Arms moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Four-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)

Installation

• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

Operating parameters

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
• Minimum usage distance: 6 m (19.68 ft)

EU (EMC & LVD):

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

US (Safety & EMC)

• UL 1573
• FCC Part 15, Subpart B:2023

Size

• Product: 450 x 898 x 413 mm (l x h x d)
• Flight-case: 690 x 770 x 560 mm (l x h x d)

Weight

• Product: 54.7 kg
