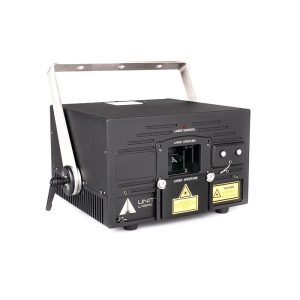

ELITE 5 ILDA - 5 Watts Full Color RGB Diode-based Laser Projector with ILDA Control

The ELITE 5 ILDA is a full-colour RGB, diode-based laser system designed for production and touring clients who want to produce high impact aerial beam effects and higher output laser graphics, logos, and text. The ELITE 5 ILDA is integrated into robust housing, making it ideal for life on the road.

SKU: ELITE5 Categories: , , Brand: Series:

Product Description

Key Features:

  • Suitable for medium-sized venues, weddings, mobile DJs
  • Full-colour professional laser effects, text and graphics
  • Up to 100 metres projection reach
  • 5 Watts power output
  • Robust construction & dustproof optical compartment

Applications:

The ELITE 5 is perfect for medium-sized indoor venues (up to around 3,000 people capacity) and DJs, clubs, weddings, theatres, or clients and venues needing a high impact laser system at a more aggressive price point. The fixture can also be used both indoors and outdoors for the projection of laser graphics, logos, text and laser billboard advertisements.

Control:

ELITE ILDA Series lasers are incredibly easy to set up and use. And can easily be controlled via ILDA or DMX / ArtNET (with Pangolin software).

What’s in the box:

The ELITE 5 package includes all of your main accessories.

  • Laser projector
  • Protective travel case
  • ILDA cable
  • E-stop safety system and E-stop cables
  • Interlocks
  • Keys

Specifications:

  • Product Name: Unity ELITE 5 ILDA
  • Type Of Laser: Full-colour, Semiconductor diode laser system
  • Guaranteed Optical Output: >5,500mW
  • Suitable For: Medium-sized venues and indoor events; laser shows and laser graphic displays
  • Control Signal: ILDA – We recommend Pangolin FB3QS and QuickShow
  • Scanning System: 35kpps @ 8°
  • Scanning Angle max. 50°
  • Safety: Fully complies with the latest EN 60825-1 and FDA regulations
  • Weight: 9.2kg
  • Package Includes: Heavy-duty flight case, Power cord, 10M ILDA signal cable, E-STOP box with 10M cable, 4 safety keys, 3-pin interlock bypass plug, User guide.
  • R | G | B [mW]: 1230 | 1800 | 2500
  • Beam Size [mm]: 6 x 5
  • Beam Divergence: <1.5mrad [Full Angle]
  • Modulation: Analog 100kHz
  • Power Requirements: 100-230V/50Hz
  • Consumption: Max. 200W
  • Operation Temperature: 10-40 °C
  • Ingress Rating: IP 20
  • System Features: The adjustments knobs for each colour’s power output, X & Y axes invert, X & Y size and position are located on the rear panel. Scanning system protection.
    Daisy chain of emergency STOP signal for multiple system “one-hit” operation.
  • Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
  • Notice: *Due to Advanced Optical Correction technology used in our laser systems, each laser colour’s optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
  • Dimensions [mm]:
    Depth: 235
    Width: 255
    Height: 168
