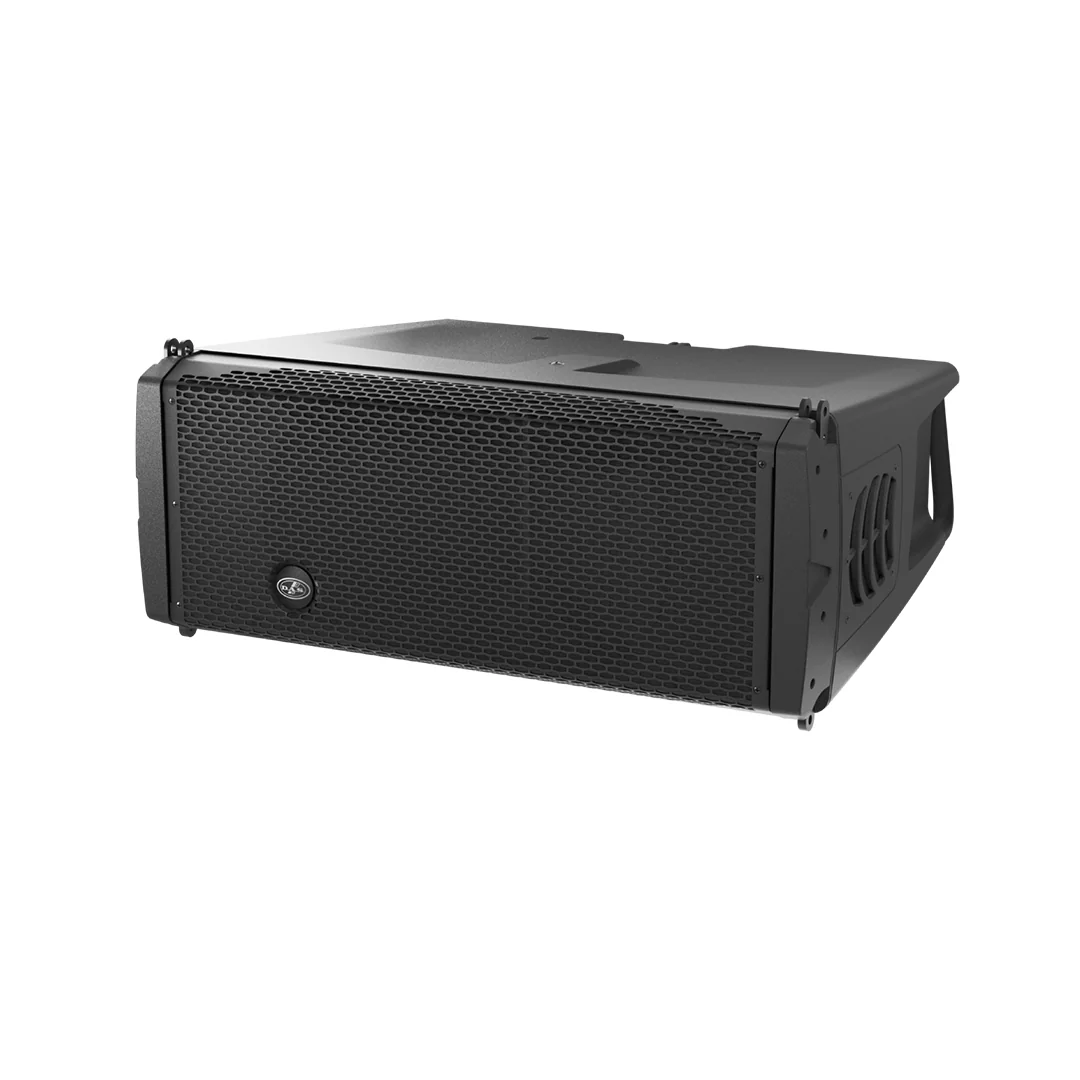

EVENT 30A - Powered 2×10″ Compact Line Array System

EVENT 30A - Powered 2×10″ Compact Line Array System

The EVENT-30A is a compact, symmetrical, self-powered two-way line array system designed to deliver high acoustic performance with exceptional ease of use. Combining lightweight construction with advanced control and reliability, it provides a versatile solution for a wide range of professional sound reinforcement applications.

SKU: EVENT-30A Categories: Audio, Line Array Brand: DAS Audio

Description
Downloads

Product Description

Technical Specifications

Performance

Frequency Range (–10 dB): 63 Hz – 20 kHz
Horizontal Coverage (–6 dB): 90°
Vertical Coverage: Splay dependent
Maximum Linear SPL¹: 138 dB
Maximum SPL²: 142 dB
¹ Measured maximum linear SPL at 1 m according to AES75 standard using 18 dB crest factor M-Noise
² Measured maximum SPL at 1 m using burst noise

Electronics & Connectors

Nominal Amplifier Power (continuous): 1000 W
Nominal Amplifier Power (peak): 2000 W

LF Section

Continuous: 850 W
Peak: 1700 W

HF Section

Continuous: 150 W
Peak: 300 W
Input Type: Balanced
Input Impedance: 20 kΩ
Input Sensitivity: 6.2 V (+18 dBu)
Audio Input Connector: 1 × Female XLR
Audio Loop Thru Connector: 1 × Male XLR
Control: DAScontrol™

Recommended Signal Processing

INTEGRAL-M26X
INTEGRAL-M48D

Power

AC Input Connector: powerCON NAC3MPA
AC Output Connector: powerCON NAC3MPB
Current Draw (230 V / 115 V): 1.5 A / 3.0 A

Enclosure

Construction: Polypropylene
Geometry: Trapezoidal
Rigging: Captive Rigging System
Color: Black

Physical

Dimensions (H × W × D): 307 × 710 × 560 mm 12.1 × 28.0 × 22.0 in
Net Weight: 26.5 kg / 58.3 lb

Components

HF Driver: M-60
