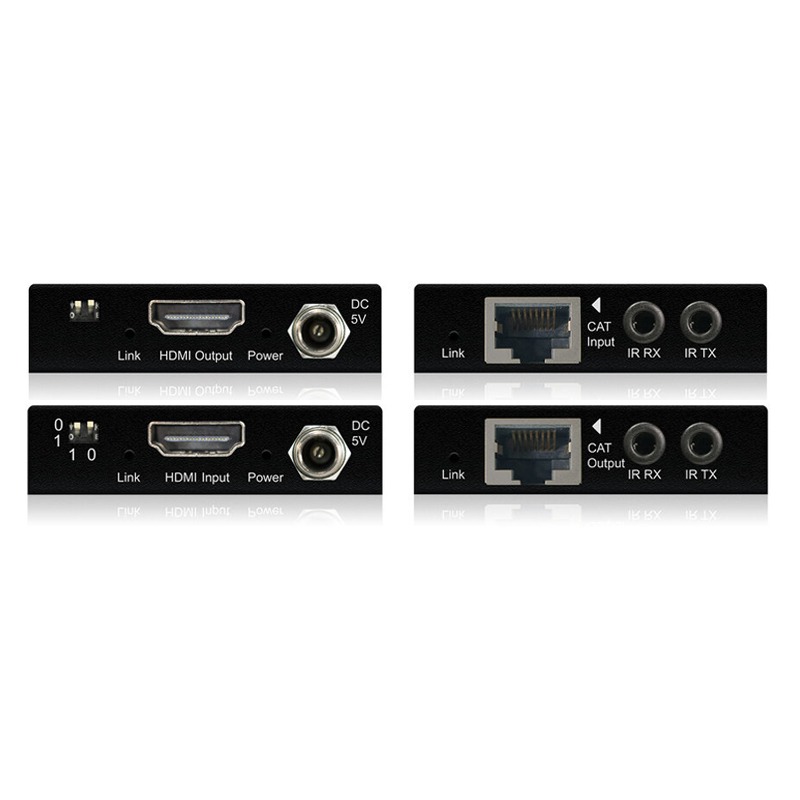

EX40B-KIT - Slimline HDMI Extender Set

Product Description

Key Features:

• Extends HDMI up to distances of 40m over a single CAT cable (1080i up to 50m)
• Supports video resolutions 480i-1080p*
• Supports Bi-directional IR from input and output locations
• Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports full 3D signal display
• Supplied with Blustream IR receiver and emitter
• Requires local power at both transmitter and receiver
• EDID management
• HDCP 1.4 compliant

  * 8-bit colour support only

Specifications:

• Video Input:

            – EX40B-TX: 1 x HDMI Type A, 19-pin, female

            – EX40B-RX: 1 x RJ45

• Video Output:

            – EX40B-TX: 1 x RJ45

            – EX40B-RX: 1 x HDMI Type A, 19-pin, female

• IR Input 1 x 3.5mm stereo jack
• IR Output 1 x 3.5mm mono jack
• Power Supply: 5V/1A DC, screw type connector, one per balun required
• Dimensions with connections (W x H x D): 58 x 15 x 96mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting Kit Included

Box Contents:

• 1 x EX40B-TX
• 1 x EX40B-RX
• 2 x 5V/1A DC Power Supply
• 1 x IR Emitter
• 1 x IR Receiver
• 2 x Mounting Brackets
• 1 x User Manual
