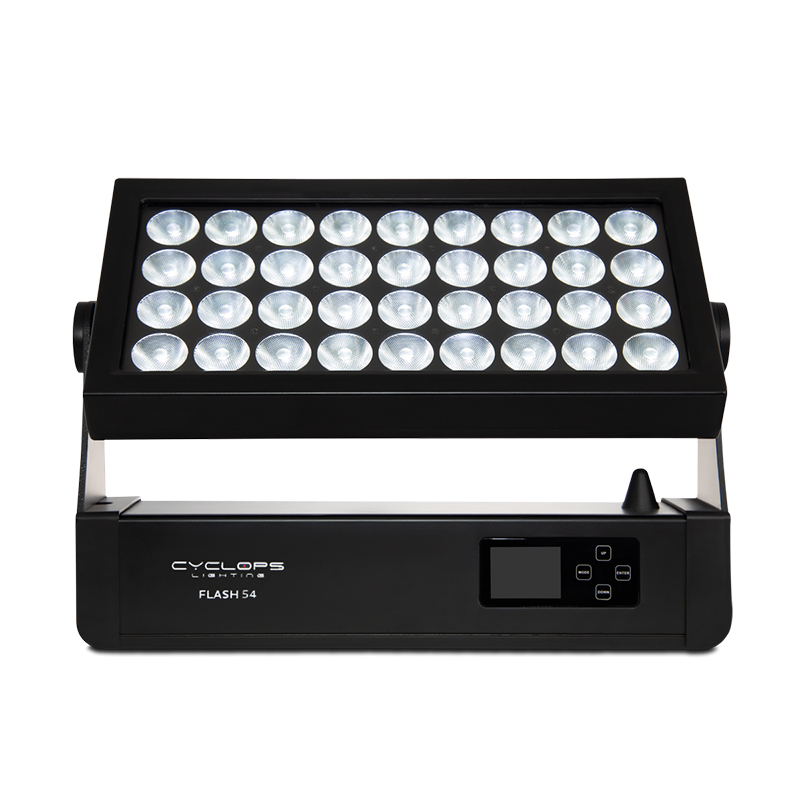

FLASH 54 – 36×15 watts RGBW High Power LED Wash

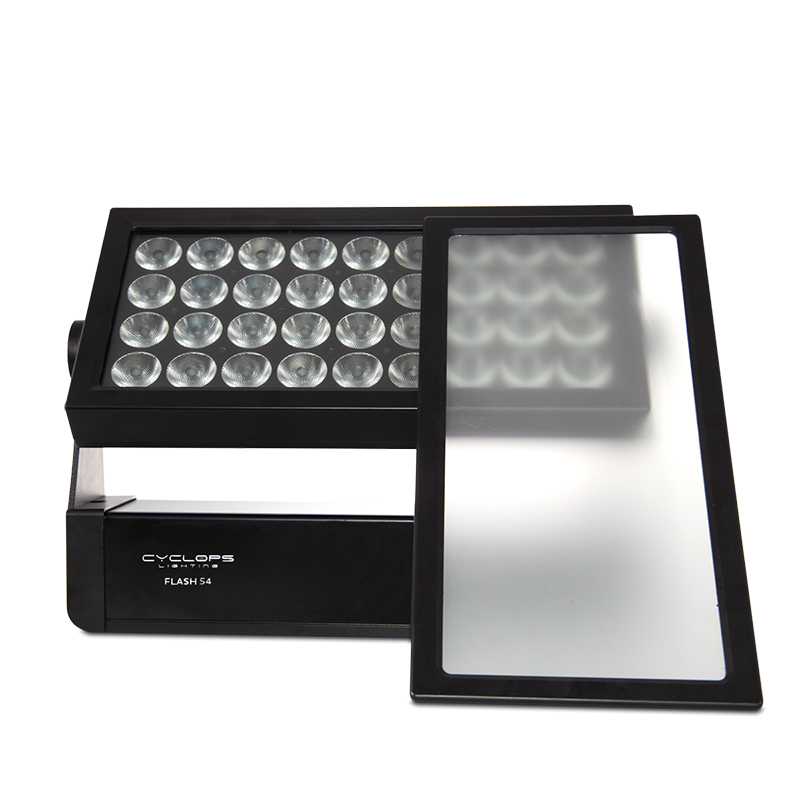

Flash 54 is an outdoor 36 x 15 watts RGBW high power LED city wash. It has a solid body structure with an IP65 rating. Each LED line can be controlled separately which brings out a homogeneous and bright color mixing effect. Its powerful output gives it a high projection ability for outdoor façade washing. It comes with a diffuser filter for a bigger light coverage in close distance installations.

SKU: FLASH54 Categories: , , Brand: Series:

Product Description

Flash 54 is an outdoor 36 x 15 watts RGBW high power LED city wash. It has a solid body structure with an IP65 rating. Each LED line can be controlled separately which brings out a homogeneous and bright color mixing effect. Its powerful output gives it a high projection ability for outdoor façade washing. It comes with a diffuser filter for a bigger light coverage in close distance installations. SOURCE
  • Light source: 36 x 15 watts high power RGBW LEDs
  • Lamp life expectancy: 50,000 Hrs.
OPTICAL SYSTEM
  • Beam angle:  10° (Optional 25°)
DYNAMIC EFFECTS
  • Dimmer: Linear adjustment
  • Color mixing: RGBW
  • 4 dimmer curves
  • Variable strobe
  • Individual line control
  • Built-in color and dynamic macros
CONTROL & PROGRAMMING
  • Control protocols: DMX, WDMX, Master-Slave
  • Display: 2.4” TFT display operation
  • Control channels: 2, 3, 4, 13, 16, 29 CHs
ELECTRICAL
  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 500 watts

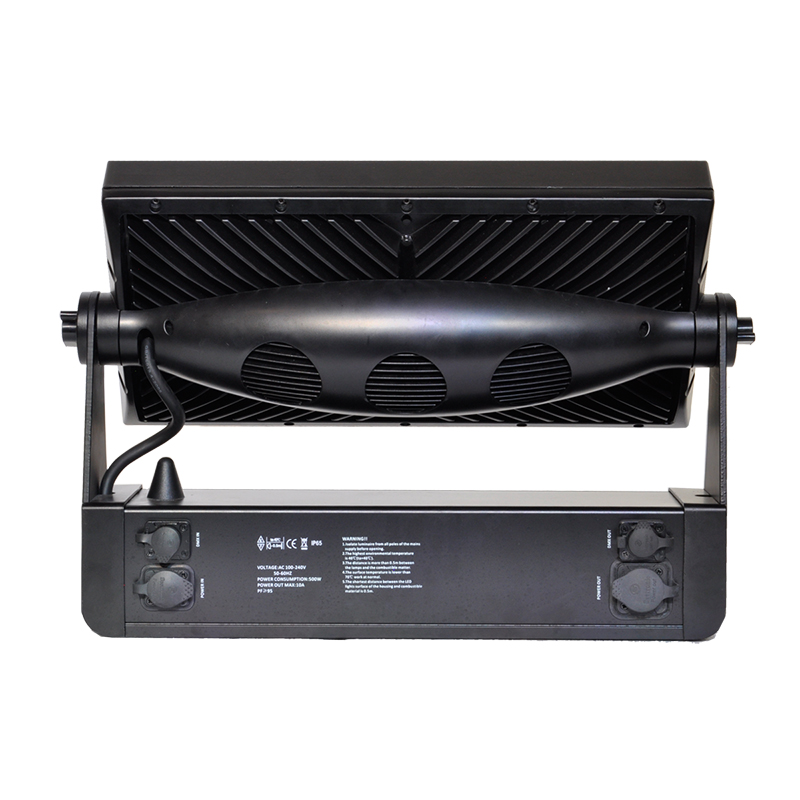

CONNECTIONS
  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: IP Powercon In/Out
PHYSICAL
  • Dimensions: 585 x 220 x 425mm
  • Net weight: 13.3 Kg
  • Housing: Aluminum
  • Color: Black
  • IP rating: 65
  • Operating temperature: -20°C/40°C

Download

Data Sheet
