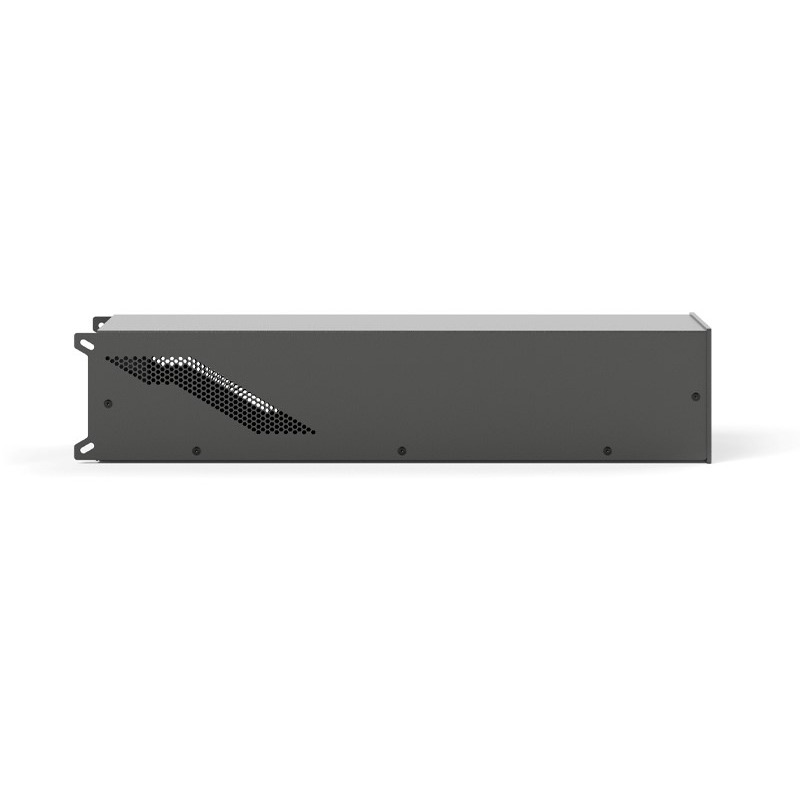

GA41 - 4x150W Power Amplifier - DSP

Compact 4-channel high efficiency class D amplifier featuring Powersoft™ power module and DSP processor.
Delivering up to 150W RMS per channel at 4 ohm, this amplifier is a very flexible solution for all those small to medium applications.
Remotely programmable with Powersoft™ ArmoníaPlus software through Ethernet connection, GA41 has 4 selectable presets that can be adjusted to your needs and recalled by a physical button on the rear panel.
Thanks to its modular design, 3 elements of GA41 can fit into 2 rack units with a dedicated accessory (G-RACK).
Designed for high performance applications permanent installations such as restaurants, bars and pubs, auditoriums, conference rooms, residential.

SKU: GA41 Categories: , , Brand:

Product Description

GENERAL

Input Channels: 2
Output Channels: 4
Max Output Power per Channel: 150W (RMS EIAJ Single Channel Driven @ 4 ohm)
Minimum Impedance: 4Ω
Internal DSP: 28 bit data path with 56 bit inner processing
Operating Voltage: 85-264 VAC
AC Current: 7A Nominal
Width: 145mm (5,71in)
Height: 90mm (3,54in)
Depth: 418mm (16,46in)
Rack adapter: G-RACK

AUDIO I/O

Analog balanced I: 2 x Combo jack-XLR female line
Analog power O: 2 x Speakon (4 pole)

AUDIO CONTROLS

Volume potentiometer | RJ45 connector | DSP can be remotely controlled via an Ethernet connection through Powersoft ArmoniaPlus Software

Download

Data Sheet
