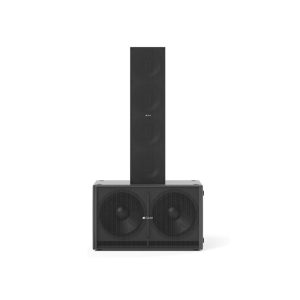

GPX - Subwoofer + Slim Array System (Passive)

Product Description

This system can be driven by GPXA active system in a stereo configuration or by GA46 power amplifiers. Thanks to its extreme performance and the compact format of the array, this system works in a stack configuration, with the array on top of the subwoofer. It is also possible to fly GH412 with our G-FLY flybar accessory, or place it on the ground with our G-BASE accessory.

Perfect for high SPL outdoor/indoor applications in large venues both for rental and permanent installations for touring, auditoriums, stadia, clubs, theme parks.

User Tip: optimize the cost and combine the system with the active model whether it is for stereo configurations or if need to extend the satellite cluster to form an array.

GENERAL
Power Handling: 1500W subwoofer + 750W satellite
Peak Power: 3000W subwoofer + 1500W satellite
Impedance: 4Ω subwoofer + 8Ω satellite
Frequency Range: 30 Hz – 20 KHz (-6 dB average)
Maximum SPL(1): 140dB (peak)
Continuos SPL: 128dB
Coverage: V.30° – H.90°

TRANSDUCERS
Subwoofer: 2×18” ferrite magnet
Mid High Frequency: 4×12” coaxial with 1” compression driver ferrite magnet

AUDIO I/O
Speakon

PHYSICAL OVERVIEW

SUBWOOFER
Width: 1035mm (40,75in)
Height: 614mm (24,17in)
Depth: 600mm (23,6in)
Weight: 58kg (127,88lbs)
Material: birch plywood
Rating: IP43

SATELLITE
Width: 327mm (12,87in)
Height: 1290mm (50,79in)
Depth: 198mm (7,79in)
Weight: 55,2kg (121,69lbs)
Material: stainless steel
Rating: IP54
