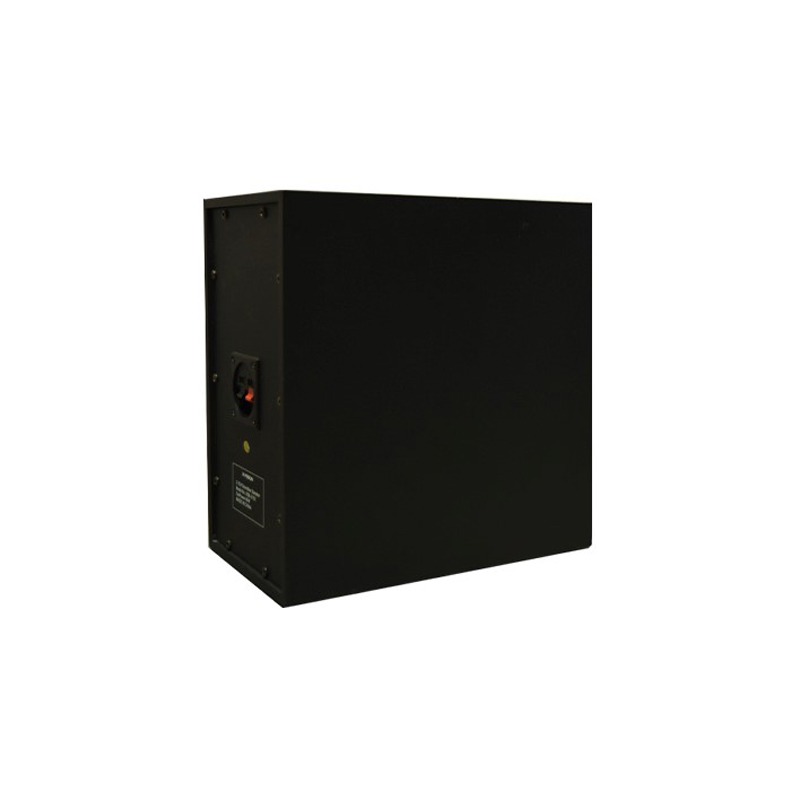

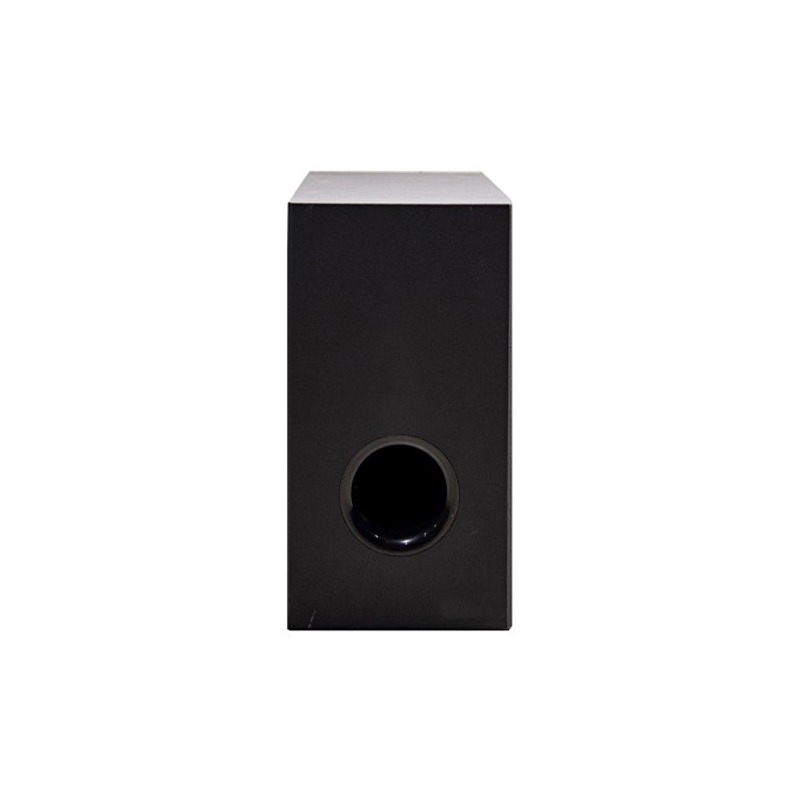

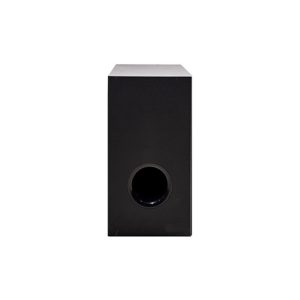

GS6 - 6" Passive Compact Subwoofer

The Compact 6 ”Passive Subwoofer is designed for indoor applications, for permanent installations in retail stores, restaurants, hotels, bars, nightclubs and residential spaces.

It is designed to match our GF22 and GF82 loudspeakers as a low frequency extension device. The GS6 features a symmetrical load circuit design, this allows it to be connected directly to most standard loudspeakers such as the GF4 and GF6.

Thanks to a built-in low-pass filter, the GS6 does not require any additional EQ or DSP and can be connected to the same speaker line as the satellites without problem!

SKU: GS6 Categories: , , Brand:

Product Description

GENERAL
Continuous Power: 60W
Peak Power: 120W
Impedance: 4Ω
Frequency Range: 55Hz – 140Hz (-6dB)
Max SPL(1): 108dB (peak)
RMS SPL: 95dB
Coverage: OMNI

TRANSDUCERS
6” woofer ferrite magnet

AUDIO I/O
Push button red and black connector

PHYSICAL OVERVIEW
Width: 170mm (6,69in)
Height: 310mm (12,20in)
Depth: 310mm (12,20in)
Weight: 3,2kg (7,05lbs)
Material: MDF
Rating: IP43

Additional information

Weight 3.2 kg
Dimensions 31.0 × 17.0 × 31.0 cm

Download

Data Sheet
