H Series 2 x Fiber Input Card

Product Description

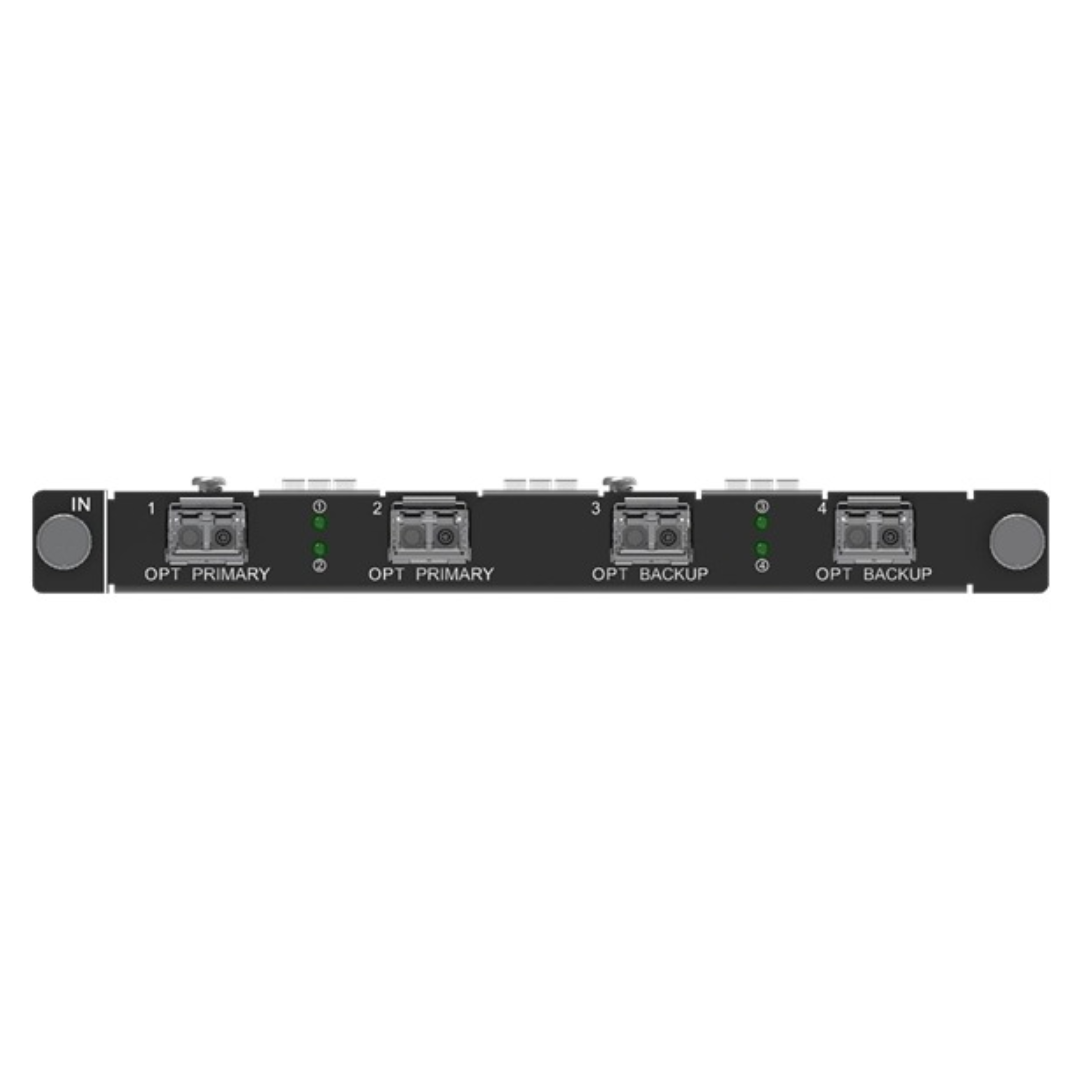

4× 10G OPT Ports

• OPT 1 and OPT 2 are used for primary inputs.
• OPT 3 serves as the backup for OPT 1, while OPT 4 serves as the backup for OPT 2.

  • The input source specifications of the backup port and the primary one must be the same.

• Each connector supports a maximum resolution of 4096×2160 @ 30 Hz.
• Each connector supports up to 2× SL inputs or 1× DL input.
• Supports input mosaic.
• Supports two input modes: independent mode and mosaic mode.
• Supports automatic identification of input source resolution and color space.
• Supports 144 Hz input.
• The optical module supports SFP+ encapsulation. Supported module
• specifications include:

• • 10G SFP+ SR optical module

  • 10G SFP+ LR optical module

• Input resolution settings are not allowed.

Status LEDs

• On: The corresponding port has a signal.

• Off: The corresponding port has no signal.

Specifications

• Weight: 500 g

• Dimensions: 193 mm × 247.12 mm × 21.15 mm

• Power consumption: 42 W
