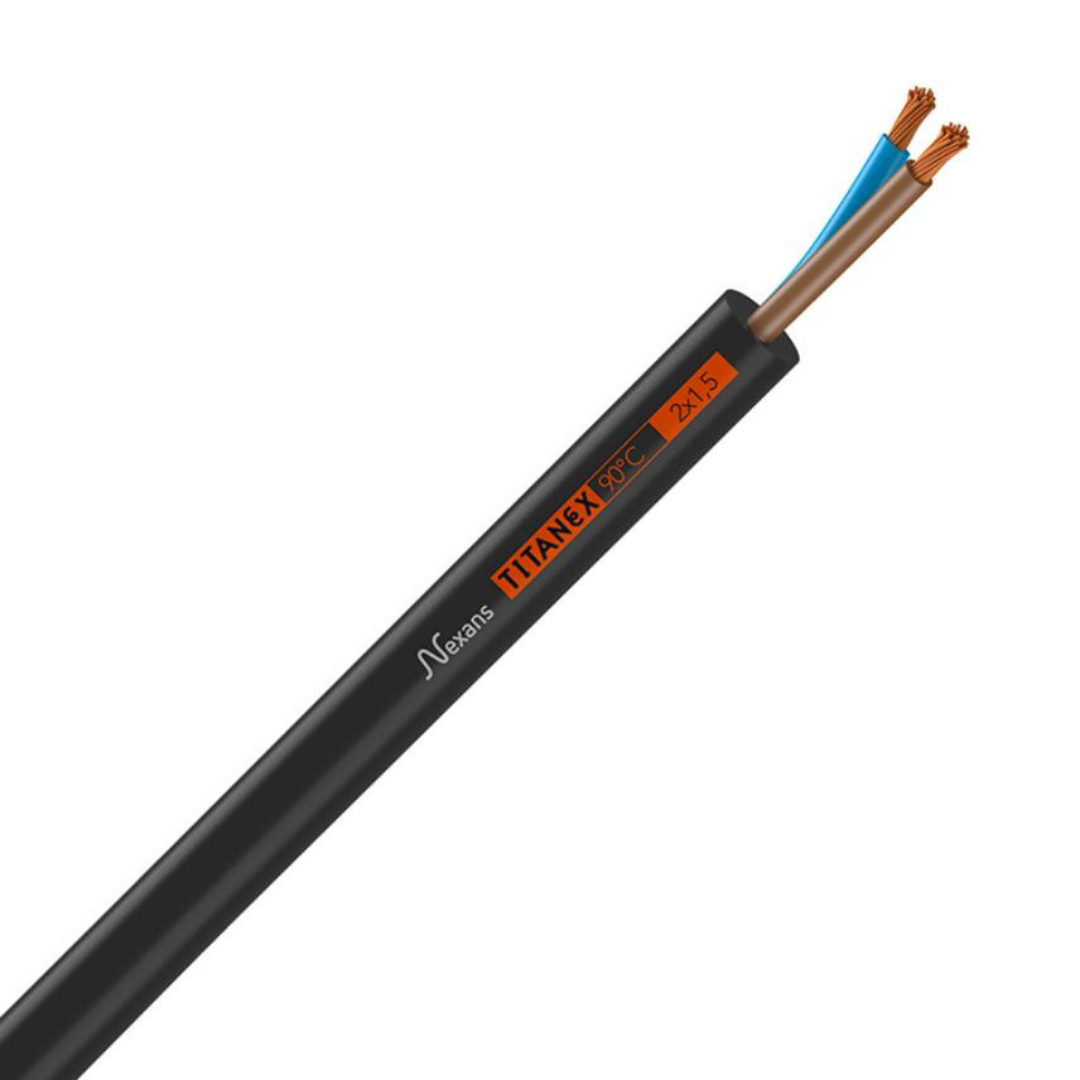

H07RN-F TITANEX-2G1.5 – Industrial Flexible Rubber Cable, 2 core x 1.5 mm2

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures, and most chemicals.

Categories: , Brand:

Product Description

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc. TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection. The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances – machine tools – etc. Standards International: EN 50525-2-21; HD 22.4; HD 516; IEC 60245-4 type 66 National: NF C 32-102-4 Declaration of Performance:  Reaction to fire: Eca according to EN50575:2014+A1:2016 Installation This cable can be installed in open air or be buried but with extra mechanical protection. Conductors laid up  Assembled conductors. Construction Characteristics
Conductor material Bare copper
Conductor flexibility Flexible class 5
Insulation Special cross-linked elastomer
Outer sheath Special cross-linked elastomer
Sheath colour Black
Lead free Yes
With Green/Yellow core No
With smaller neutral conductor No
Dimensional Characteristics
Number of cores 2
Conductor cross-section 1.5mm²
Minimum outer diameter 8.5mm
Maximum outer diameter 11.0mm
Approximate weight 111kg/km
Electrical Characteristics
Rated Voltage Uo/U (Um) 450 / 750 V
Permissible current rating in open air 26A
Voltage drop, single phase 27.0V/A.km
Mechanical Characteristics
Mechanical resistance to impacts AG3
Cable flexibility Flexible
Usage Characteristics
Silicone free Yes
Chemical resistance Accidental
Water proof Good
Flame retardant C2, NF C 32-070 & IEC 60332-1
Packaging Cut to length
Operating temperature, range -25 .. 55°C
Minimum static operating bending radius 33mm
Minimum dynamic operating bending radius 66.0mm
Max. conductor temperature in service 90°C
Short-circuit max. conductor temperature 250°C
Oil resistance Yes
RoHS compliant Yes
