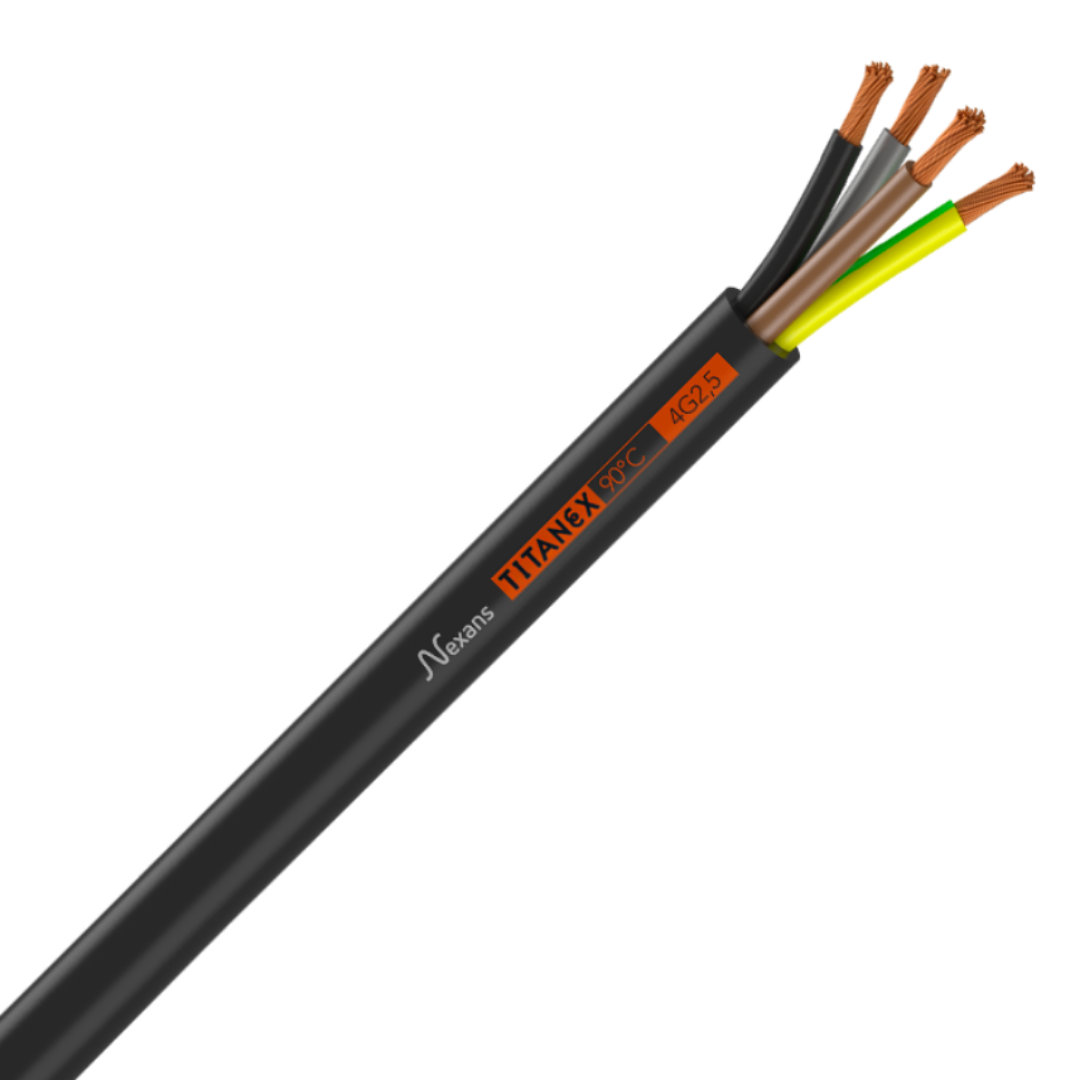

H07RN-F TITANEX 4G2.5, Industrial flexible rubber cable, 4 core x 2.5mm2

Product Description

For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.

The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances – machine tools – etc.

Installation

This cable can be installed in open air or be buried but with extra mechanical protection.

Conductor cross-section	2.5mm²
Conductor material	Bare copper
Mechanical resistance to impacts	AG3
Minimum outer diameter	12.5mm
Number of cores	4
Packaging	Cut to length
Rated Voltage Uo/U (Um)	450 / 750 V
Silicone free	Yes
Cable flexibility	Flexible
Conductor flexibility	Flexible class 5
Maximum outer diameter	15.5mm
Permissible current rating in open air	31A
Chemical resistance	Accidental
Voltage drop, single phase	14.0V/A.km
Water proof	Good
Approximate weight	245kg/km
Flame retardant	C2, NF C 32-070 & IEC 60332-1
Insulation	Special cross-linked elastomer
Operating capacitances	100.0mF/km
Operating temperature, range	-25 .. 60°C
Outer sheath	Special cross-linked elastomer
Minimum static operating bending radius	46.5mm
Sheath colour	Black
Lead free	Yes
Minimum dynamic operating bending radius	93.0mm
Max. conductor temperature in service	90°C
With Green/Yellow core	Yes
With smaller neutral conductor	No
Short-circuit max. conductor temperature	250°C
Oil resistance	Yes
RoHS compliant	Yes
