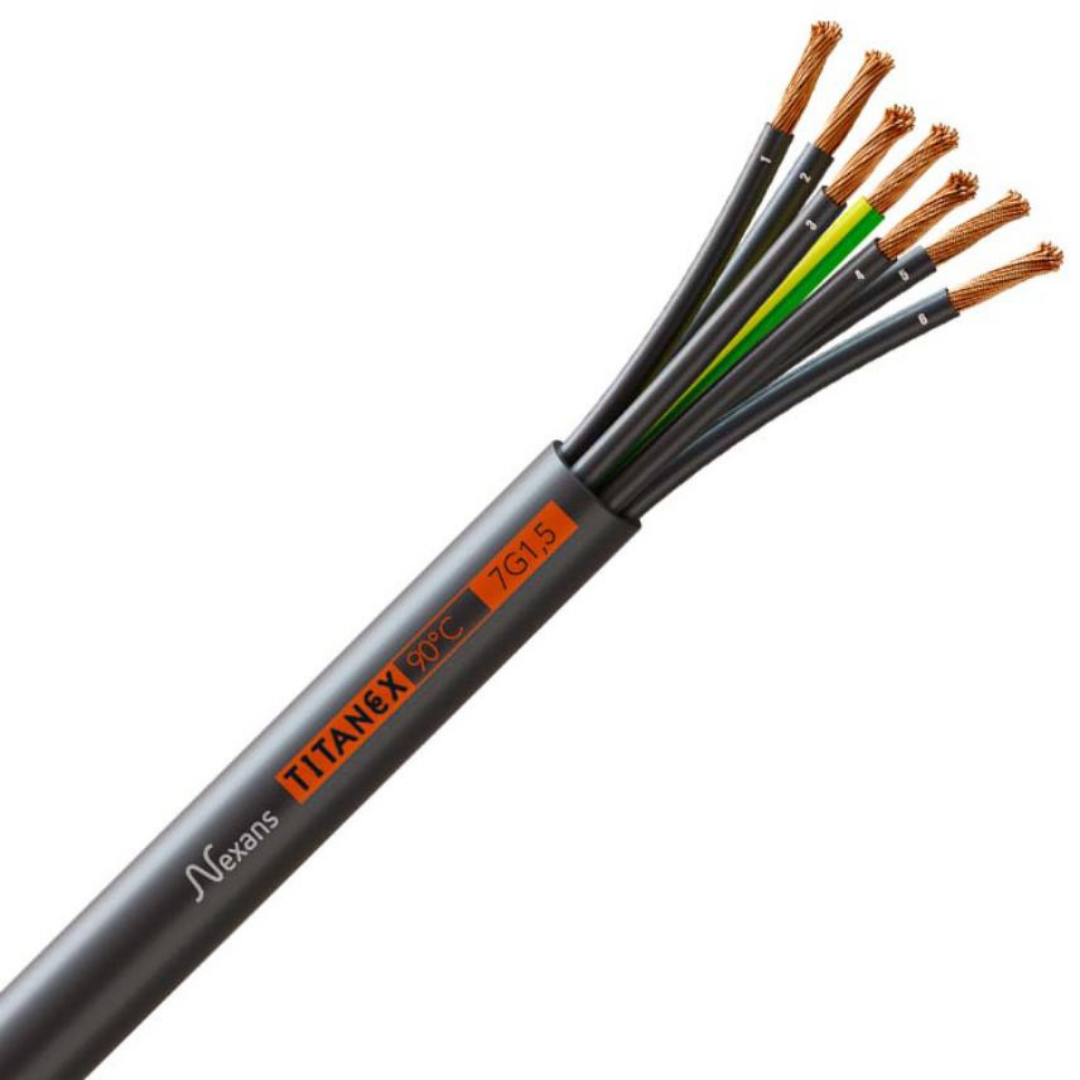

H07RN-F TITANEX 7G1.5 - Industrial Flexible Rubber Cable, 7 Core x 1.5mm2

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals
SKU: TITANEX-7G1.5 Categories: , Brand:

Product Description

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals

Construction characteristics
Conductor material Bare copper
Conductor flexibility Flexible class 5
Insulation Special cross-linked elastomer
Outer sheath Special cross-linked elastomer
Sheath colour Black
Lead free Yes
With Green/Yellow core Yes
With smaller neutral conductor No
Dimensional characteristics
Number of cores 7
Conductor cross-section 1.5mm²
Minimum outer diameter 14.7mm
Maximum outer diameter 18.7mm
Approximate weight 349kg/km
Electrical characteristics
Rated Voltage Uo/U (Um) 450 / 750 V
Permissible current rating in open air 17A
Voltage drop, single phase 23.3V/A.km
Mechanical characteristics
Mechanical resistance to impacts AG3
Cable flexibility Flexible
Usage characteristics
Silicone free Yes
Chemical resistance Accidental
Water proof Good
Flame retardant C2, NF C 32-070 & IEC 60332-1
Packaging Cut to length
Operating temperature, range 0 .. 55°C
Max. conductor temperature in service 90°C
Minimum dynamic operating bending radius 112.2mm
Short-circuit max. conductor temperature 250°C
Oil resistance Yes
RoHS compliant Yes

Download

Data Sheet
